1. Einleitung
This manual provides essential information for the safe assembly, operation, and maintenance of your Trekassy 440lbs Swing Set with 40 Inch Saucer Tree Swing and Heavy Duty A-Frame Metal Stand. Please read all instructions carefully before assembly and use to ensure proper function and safety.
The Trekassy Swing Set is designed for outdoor recreational use, offering a sturdy A-frame structure and a comfortable 40-inch saucer swing. It is suitable for both children and adults, providing a versatile swinging experience.
2. Wichtige Sicherheitshinweise
- Aufsicht durch Erwachsene erforderlich: Beaufsichtigen Sie Kinder während des Gebrauchs stets.
- Gewichtskapazität: The swing set has a maximum weight capacity of 440 lbs (200 kg). The 40-inch saucer swing itself is rated for up to 700 lbs (317 kg), but the overall frame capacity must be respected. Do not exceed the total weight limit.
- Richtige Installation: Ensure the swing set is assembled correctly and securely anchored to the ground as per instructions. Failure to do so may result in instability and injury.
- Räumungsgebiet: Halten Sie einen sicheren Sicherheitsabstand rund um die Schaukelanlage ein, der frei von Hindernissen wie Zäunen, Bäumen oder anderen Spielgeräten ist.
- Regelmäßige Inspektion: Periodically check all nuts, bolts, ropes, and connections for tightness and wear. Replace worn or damaged parts immediately.
- Wetterbedingungen: Benutzen Sie die Schaukel nicht bei starkem Wind, heftigem Regen oder anderen widrigen Wetterbedingungen.
- Altersempfehlung: This swing set is intended for users aged 3 years and older.
3. Packungsinhalt
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact Trekassy customer support.
- 1 x Heavy Duty A-Frame Metal Swing Stand (71" high)
- 1 x 40-inch Round Saucer Tree Swing (Rainbow color)
- All necessary assembly hardware (nuts, bolts, washers, carabiners, ground stakes)
- Bedienungsanleitung
4. Aufbau und Montage
Assembly is designed to be straightforward. It is recommended that two adults perform the assembly. All components are pre-drilled for convenience.
4.1. Wählen Sie einen Standort
Select a level outdoor surface for installation. Ensure there is adequate clearance around the swing set (at least 6 feet in all directions) to prevent collisions with obstacles.
4.2. Assemble the A-Frame Stand
- Unpack all frame components and lay them out.
- Connect the horizontal top bar to the A-frame leg sections using the provided bolts and nuts. Ensure all connections are secure but do not fully tighten until the frame is upright.
- Attach the cross-braces between the A-frame legs for added stability.
- Once the frame is assembled, carefully stand it upright.
Figure 1: The A-frame structure features powder-coated steel for durability and rust resistance.
4.3. Secure the Frame with Ground Stakes
To enhance stability and prevent tipping, use the provided ground stakes.
- Position the swing set in its final location.
- Insert the ground stakes through the designated holes at the base of each A-frame leg and twist them into the ground until secure.
- Fully tighten all bolts and nuts on the frame after the stakes are in place.
Figure 2: Ground stakes are essential for securing the swing set firmly to the ground.
4.4. Attach the Saucer Swing
- Unpack the 40-inch saucer swing.
- Attach the saucer swing's ropes to the carabiners on the top bar of the A-frame. Ensure the carabiners are securely closed.
- Adjust the length of the ropes to achieve the desired swing height. The ropes feature an adjustable high-quality PE webbing for customization.

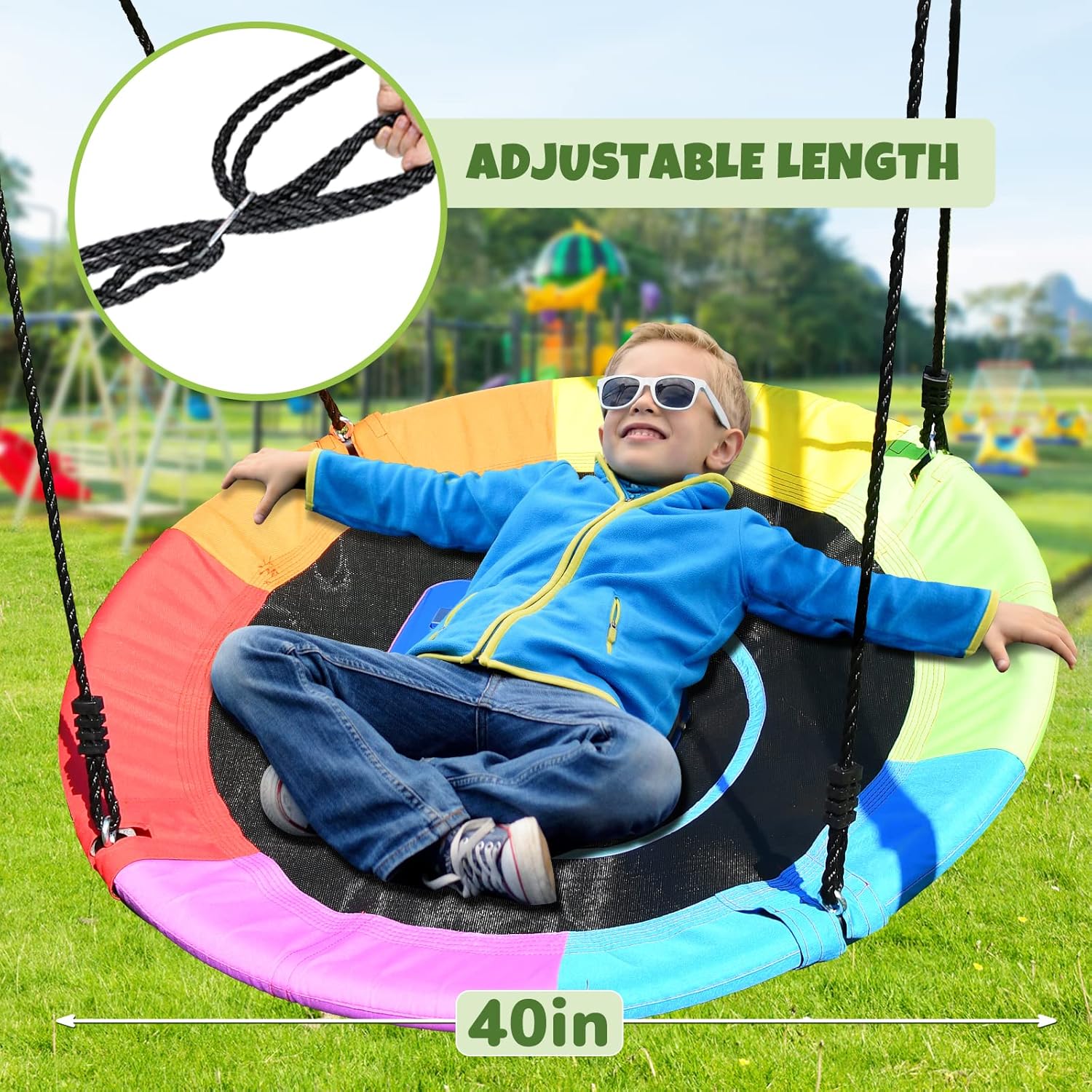

Figure 3: The saucer swing ropes can be adjusted to suit different user heights and preferences.
5. Bedienungsanleitung
The Trekassy Swing Set is designed for safe and enjoyable use. Follow these guidelines for optimal operation.
5.1. Using the Saucer Swing
- Ensure the swing is clear of any obstructions before use.
- Users should sit or lie comfortably within the saucer swing.
- Push off gently to start swinging. Avoid excessive force that could cause the swing set to lift or become unstable.
- The saucer swing allows for multiple children or an adult and child to swing together, provided the total weight does not exceed the frame's 440 lbs capacity. The saucer swing itself can support up to 700 lbs.
Figure 4: The spacious 40-inch saucer swing accommodates multiple users for shared enjoyment.
5.2. Versatility of the Swing Frame
The heavy-duty A-frame is designed to accommodate various types of swings. You can attach other swings (not included) to the frame's carabiners, allowing for customized play experiences.
Figure 5: The swing set offers various ways to play, including spinning and traditional swinging.
6. Wartung
Regular maintenance ensures the longevity and safety of your Trekassy Swing Set.
- Reinigung: Wipe down the frame and swing seat with a damp Bei Bedarf mit einem Tuch und milder Seife verwenden. Scharfe Chemikalien vermeiden.
- Hardwareprüfung: At the beginning of each play season and monthly during use, check all nuts, bolts, and connections for tightness. Tighten any loose hardware.
- Seilprüfung: Inspect the swing ropes for fraying, cuts, or excessive wear. Replace ropes if any damage is observed. The PE webbing is UV resistant, but prolonged exposure can still cause degradation over time.
- Rahmeninspektion: Check the steel frame for any signs of rust, dents, or structural damage. The powder-coated finish helps prevent rust, but scratches can expose the metal. Touch up any exposed areas with rust-inhibiting paint if necessary.
- Bodenpfähle: Achten Sie darauf, dass die Erdanker fest sitzen. Befestigen Sie sie erneut, falls sie sich lockern.
- Winterlager: If possible, disassemble and store the swing set indoors during winter months to protect it from extreme weather conditions and extend its lifespan.
7. Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Die Schaukel wirkt instabil oder wackelig. | Loose hardware; ground stakes not fully secured; uneven ground. | Tighten all nuts and bolts. Ensure ground stakes are fully twisted into the ground. Relocate the swing set to a more level surface if necessary. |
| Saucer swing not swinging smoothly. | Ropes are twisted or tangled; carabiners are stiff. | Untwist and untangle ropes. Check carabiners for debris and lubricate if needed. |
| Am Rahmen bildet sich Rost. | Scratches or damage to the powder coating exposing metal. | Clean the rusted area, sand lightly, and apply rust-inhibiting paint to prevent further corrosion. |
8. Spezifikationen
- Marke: Trekassy
- Modellnummer: AB0201
- Produktabmessungen (L x B x H): 72"T x 67"B x 71"H (183 cm T x 170 cm B x 180 cm H)
- Rahmenmaterial: Legierter Stahl
- Zieltyp: Pulverbeschichtet
- Artikelgewicht: 42.9 Pfund (19.46 kg)
- Swing Set Weight Capacity: 440 kg
- Saucer Swing Diameter: 40 Zoll (101.6 cm)
- Saucer Swing Weight Capacity: 700 kg
- Farbe: Rainbow (Saucer Swing)
- Datum der Erstveröffentlichung: 6. Dezember 2022
Figure 6: Detailed dimensions of the assembled swing set.
9. Garantie und Kundendienst
Trekassy products are designed for quality and durability. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Trekassy website. If you have any questions, require assistance with assembly, or need replacement parts, please contact Trekassy customer support.
Kontaktinformationen:
- Markenshop: Trekassy Amazon Store
- Siehe Produktverpackung oder offizielle Angaben. webWebsite für direkte Kontaktdaten.
