ANTEC AX Series AX90 Mid-Tower ATX Gaming Case

1. Einleitung

This manual provides detailed instructions for the installation, operation, and maintenance of your ANTEC AX Series AX90 Mid-Tower ATX Gaming Case. Please read this manual thoroughly before beginning assembly to ensure proper setup and optimal performance.

Figure 1: ANTEC AX90 Mid-Tower ATX Gaming Case. This image shows the overall design of the case, highlighting its mesh front panel and tempered glass side panel.

2. Hauptmerkmale

• Unique Design & Powerful Heat Dissipation: Engineered for optimal airflow and cooling performance.
• Diamond-Shaped Mesh Front Panel: Provides excellent air intake and a distinctive aesthetic.
• Pre-Installed 4 x 120mm ARGB Fans: Includes three 120mm ARGB fans at the front and one 120mm ARGB fan at the rear for immediate cooling and lighting.
• Extensive Fan Support: Accommodates up to 11 x 120mm fans simultaneously for maximum cooling potential.
• Ample Cable Management Space: Features 23mm of space behind the motherboard tray to ensure a neat and organized build.
• Seitenwand aus gehärtetem Glas: Showcases your internal components with a clear, durable tempered glass panel.
• Kühlerhalterung: Supports up to 360mm radiators for advanced liquid cooling solutions.

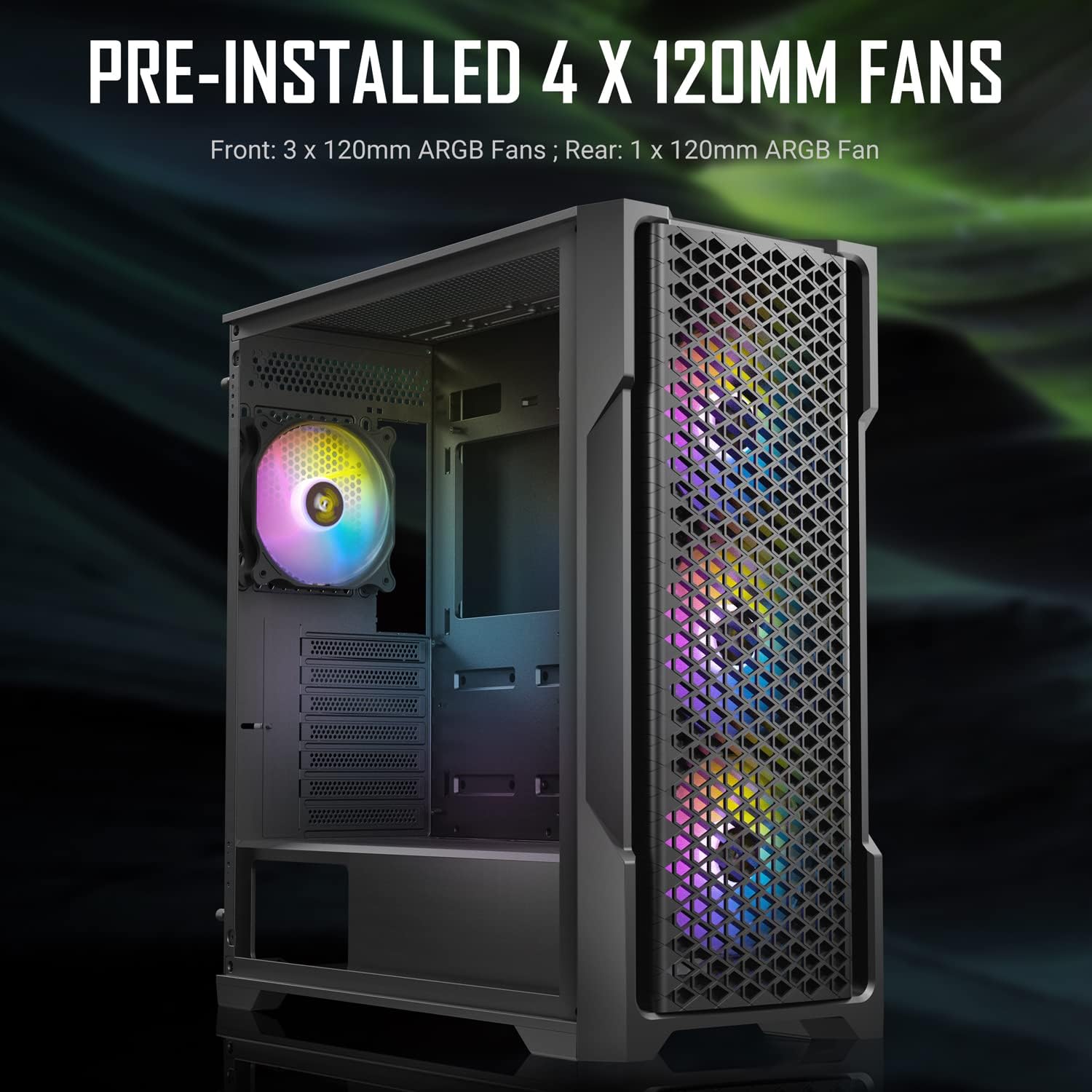

Figure 2: Pre-installed 120mm ARGB fans. This image illustrates the three front and one rear pre-installed ARGB fans, highlighting their lighting capabilities.

3. Spezifikationen

Abbildung 3: Rückseite view of the ANTEC AX90 case, showing the expansion slots, rear fan mount, and power supply cutout.

4. Einrichtung und Installation

Follow these steps for proper installation of your components into the ANTEC AX90 case.

4.1 Vorbereitung des Falls

1. Seitenteile entfernen: Carefully remove the tempered glass side panel by unscrewing the thumb screws at the rear and gently pulling it away. Place it on a soft, flat surface to prevent scratches or damage. Remove the steel side panel similarly.
2. Zubehörbox: Locate the accessory box inside the case, which contains screws, zip ties, and other installation hardware.

Abbildung 4: Seite view of the ANTEC AX90, illustrating the tempered glass panel. Exercise caution when handling the glass panel.

4.2 Motherboard-Installation

1. Montieren Sie die I/O-Blende in die Aussparung auf der Rückseite des Gehäuses, die auf dem Motherboard vorgesehen ist.
2. Align your ATX, Micro-ATX, or ITX motherboard with the standoffs inside the case. Ensure all standoffs align with the screw holes on your motherboard.
3. Befestigen Sie das Motherboard mit den passenden Schrauben aus dem Zubehörkarton.

4.3 Installation der Stromversorgung

1. Position your ATX power supply unit (PSU) into the PSU shroud at the bottom rear of the case.
2. Secure the PSU from the rear of the case using the provided screws.

4.4 Installation des Speicherlaufwerks

• 3.5"-Festplatten: Install 3.5" hard drives into the drive cage located under the PSU shroud. Slide the drives into the trays and secure them.
• 2.5"-SSDs: Install 2.5" solid-state drives onto the dedicated mounting points behind the motherboard tray or on top of the PSU shroud. Secure with screws.

4.5 Installation der Grafikkarte (GPU)

1. Entfernen Sie die erforderlichen Erweiterungssteckplatzabdeckungen an der Rückseite des Gehäuses.
2. Stecken Sie Ihre Grafikkarte in den entsprechenden PCIe-Steckplatz auf dem Motherboard.
3. Befestigen Sie die Grafikkarte mit Schrauben. Das Gehäuse unterstützt GPUs mit einer Länge von bis zu 385 mm.

Abbildung 5: Intern view demonstrating maximum GPU length compatibility. The case provides ample space for long graphics cards.

4.6 Cooling System Installation (Optional)

• Weitere Fans: Install additional 120mm or 140mm fans as desired on the top, front, or side mounts.
• Liquid Cooling Radiators: The case supports radiators up to 360mm at the front and top. Install radiators and fans according to your liquid cooler's instructions.

Figure 6: Illustration of liquid cooling radiator support. This image shows a 240mm radiator installed, demonstrating the case's cooling capabilities.

4.7 Kabelmanagement

Utilize the 23mm space behind the motherboard tray and the numerous cable routing cutouts to organize your cables. Use zip ties (included in the accessory box) to secure cables for improved airflow and a cleaner aesthetic.

Abbildung 7: Rückseite view of the case highlighting the 23mm cable management space. Proper cable routing enhances airflow and aesthetics.

4.8 Endmontage

Once all components are installed and cables are managed, reattach the steel side panel and then the tempered glass side panel, securing them with the thumb screws.

5. Operating the ARGB Lighting

The ANTEC AX90 comes with pre-installed ARGB fans that can be controlled via the built-in hub or synchronized with your motherboard's ARGB software.

5.1 Using the Built-in ARGB Control Button

The case features a dedicated ARGB control button on the front I/O panel. Press this button to cycle through various pre-set lighting modes and effects. Hold the button down for a few seconds to turn the ARGB lighting on or off.

5.2 Synchronisierung des Motherboards

To synchronize the ARGB lighting with your motherboard's software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion, ASRock Polychrome Sync), connect the ARGB cable from the case's fan hub to the 3-pin 5V ARGB header on your motherboard. Once connected, you can control the lighting effects directly through your motherboard's utility software.

Figure 8: Diagram illustrating ARGB lighting synchronization with a motherboard. This shows the connection from the fan controller to the motherboard's ARGB header.

6. Wartung

Regular maintenance helps ensure optimal performance and longevity of your ANTEC AX90 case.

• Staubfilter: The case is equipped with removable dust filters (e.g., top, front, bottom). Periodically remove and clean these filters using compressed air or by washing them with water and mild soap. Ensure they are completely dry before reinstallation.
• Innenreinigung: Use compressed air to blow out dust from inside the case, especially from fans, heatsinks, and hard-to-reach areas. For stubborn grime, use a soft, lint-free cloth slightly dampmit Isopropylalkohol gereinigt.
• Außenreinigung: Wischen Sie die Außenflächen mit einem weichen,amp cloth. Avoid harsh chemicals or abrasive materials that could damage the finish or tempered glass.
• Gehärtetes Glas: Clean the tempered glass panel with a glass cleaner and a microfiber cloth. Avoid excessive force or impact on the glass.

7. Fehlerbehebung

This section addresses common issues you might encounter with your ANTEC AX90 case.

7.1 Fans Not Spinning or ARGB Not Lighting Up

• Verbindungen prüfen: Ensure all fan power cables (3-pin or 4-pin) are securely connected to the fan hub or motherboard fan headers. Verify ARGB cables are properly connected to the ARGB hub or motherboard's 5V ARGB header.
• Stromversorgung: Confirm the fan hub is receiving power from the PSU (usually via a SATA power connector).
• Motherboard-Software: If using motherboard synchronization, ensure the correct software is installed and configured.
• Steuertaste: If using the built-in control, try pressing the ARGB button to cycle through modes or turn it on.

7.2 Schlechte Luftzirkulation oder hohe Temperaturen

• Staubfilter: Clean all dust filters regularly. Clogged filters severely restrict airflow.
• Fanorientierung: Ensure fans are oriented correctly for optimal airflow (e.g., front fans as intake, rear/top fans as exhaust).
• Kabelmanagement: Verbessern Sie das Kabelmanagement, um Behinderungen des Luftstroms im Inneren des Gehäuses zu reduzieren.
• Bauteilabstand: Ensure large components (e.g., CPU cooler, GPU) are not blocking critical airflow paths.

7.3 Front-I/O-Anschlüsse funktionieren nicht

• Anschlüsse auf dem Motherboard: Verify that the front panel cables (USB 3.0, USB 2.0, HD Audio, Power SW, Reset SW, HDD LED, Power LED) are correctly connected to the corresponding headers on your motherboard. Refer to your motherboard manual for header locations.
• Treiberinstallation: Stellen Sie sicher, dass die für Ihr Betriebssystem erforderlichen USB-Treiber installiert sind.

8. Garantie und Support

Informationen zur Garantie und zum technischen Support finden Sie auf der offiziellen Antec-Website. website or contact Antec customer service directly. Keep your proof of purchase for warranty claims.

Antec Official WebWebsite: www.antec.com

Please note that damage to the tempered glass panel due to mishandling is typically not covered under warranty. Handle with extreme care.
