1. Sicherheitshinweise

Always read and understand all safety warnings and instructions before operating the lawn mower. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

Allgemeine Sicherheit

• Keep all parts of the body away from the cutting blade. Do not remove material from the cutting deck when the mower is running.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy footwear.
• Betreiben Sie den Rasenmäher nicht bei Nässe oder Regen.
• Ensure the area is clear of debris, stones, and other objects that could be thrown by the blade.
• Never allow children or people unfamiliar with these instructions to operate the lawn mower.

Batteriesicherheit

• Use only the specified battery pack and charger for this product.
• Setzen Sie Akkupacks weder Feuer noch hohen Temperaturen aus.
• Store battery packs indoors in a dry place when not in use.
• If the battery pack is damaged, do not use it. Contact STIGA customer service.

2. Produktüberschreitungview

The STIGA Multiclip 547e Kit is a powerful 48V cordless lawn mower designed for efficient mulching. It features a robust construction, a 45 cm cutting width, and an adjustable handle for user comfort. The mulching system finely chops grass clippings, returning nutrients to your lawn.

Abbildung 2.1: Insgesamt view of the STIGA Multiclip 547e Kit Cordless Lawn Mower.

Komponenten

• Lawn Mower Unit
• Obere Griffbaugruppe
• 48V (4Ah) Battery Pack
• Ladegerät
• Mulching Plug (pre-installed)

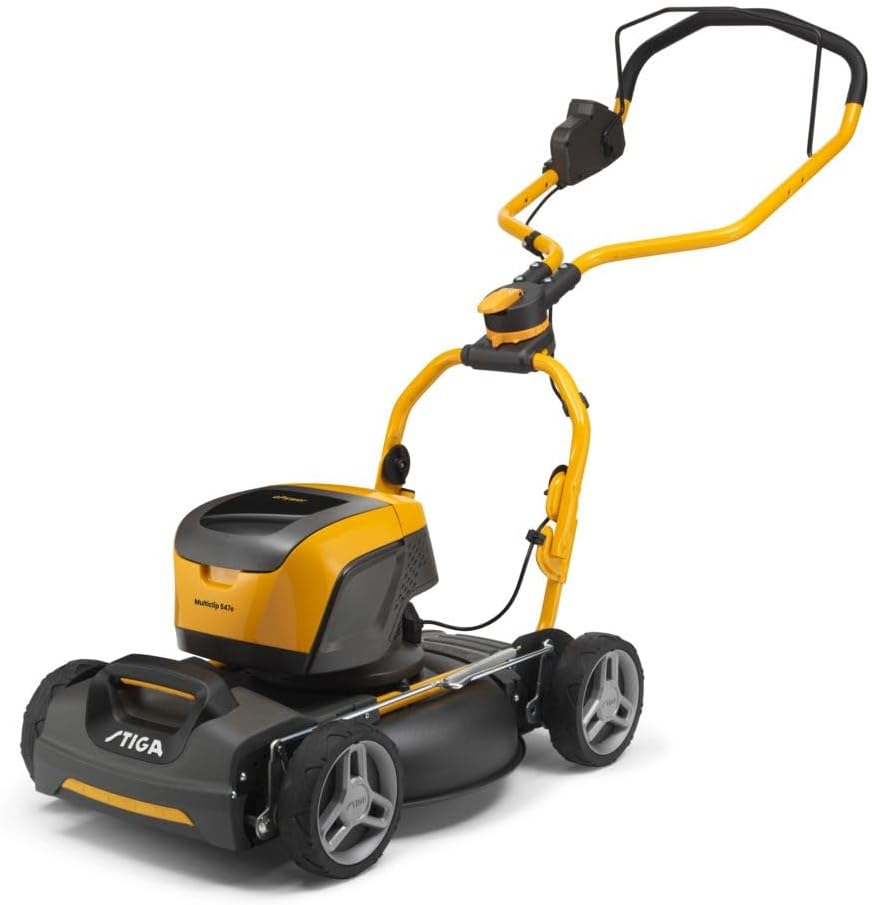

Abbildung 2.2: Seite view of the lawn mower, highlighting its compact design.

Abbildung 2.3: Nahaufnahme view of the battery compartment, showing where the 48V battery is inserted.

3. Einrichtung

3.1 Griffmontage

1. Unfold the lower handle from the transport position.
2. Attach the upper handle to the lower handle using the provided knobs and bolts. Ensure the cables are not pinched.
3. Adjust the handle height to one of the two available positions for comfortable operation. Secure the adjustment points.

Figure 3.1: The lawn mower with its handle extended and ready for use.

Figure 3.2: Detail of the handle adjustment mechanism, allowing for two height settings.

3.2 Laden der Batterie

Before first use, fully charge the 48V (4Ah) battery pack. Connect the charger to a suitable power outlet and insert the battery pack into the charger. The indicator lights on the charger will show the charging status. A full charge typically takes approximately 90 minutes.

3.3 Einlegen der Batterie

1. Öffnen Sie die Batteriefachabdeckung oben am Rasenmäher.
2. Slide the fully charged battery pack into the compartment until it clicks securely into place.
3. Schließen Sie den Batteriefachdeckel fest.

4. Bedienung des Rasenmähers

4.1 Starten des Rasenmähers

1. Ensure the battery is correctly installed and the compartment cover is closed.
2. Drücken und halten Sie den Sicherheitsknopf am Griff.
3. While holding the safety button, pull the bail lever towards the handle. The motor will start.
4. Lassen Sie den Sicherheitsknopf los, sobald der Motor läuft.

Abbildung 4.1: Oben view of the handle, showing the safety button and bail lever for starting the mower.

4.2 Mähtechniken

• For best mulching results, mow frequently and remove no more than one-third of the grass height at a time.
• Overlap each mowing pass slightly to ensure even coverage.
• The Multiclip system is designed to finely cut grass clippings, distributing them back onto the lawn as natural fertilizer.

4.3 Einstellen der Schnitthöhe

The cutting height can be adjusted to suit your lawn conditions. Locate the height adjustment lever on the mower deck. Move the lever to select one of the available cutting height positions. Refer to the markings on the mower for specific height settings.

5. Wartung

Regular maintenance ensures optimal performance and extends the life of your STIGA lawn mower. Always disconnect the battery pack before performing any maintenance or cleaning.

5.1 Reinigung

• After each use, clean the underside of the mower deck to prevent grass buildup. Use a brush or scraper; do not use water directly on electrical components.
• Wischen Sie die Außenseite des Rasenmähers mit einem Tuch ab.amp Tuch.

5.2 Klingenpflege

• Regularly inspect the blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance.
• If the blade needs sharpening or replacement, contact an authorized STIGA service center.

5.3 Speicherung

• For compact storage, the handle can be folded forward.
• Store the lawn mower in a clean, dry place, away from direct sunlight and extreme temperatures.
• Remove the battery pack from the mower before long-term storage.

Figure 5.1: The lawn mower with its handle folded forward, demonstrating its compact storage capability.

6. Fehlerbehebung

7. Spezifikationen

8. Garantie und Support

STIGA products are manufactured to high quality standards and are guaranteed against manufacturing defects. Please refer to the warranty card included with your product for specific terms and conditions, including warranty period and coverage.

For technical assistance, spare parts, or service, please contact your local authorized STIGA dealer or visit the official STIGA webWebsite mit Informationen zum Kundensupport.

Online-Ressourcen: www.stiga.com
