Sejoy Tiefengewebsmassagepistole JMQ-WS-037-BLA Benutzerhandbuch

1. Einleitung

Thank you for choosing the Sejoy Deep Tissue Massage Gun, model JMQ-WS-037-BLA. This device is designed to provide percussive massage to help relieve muscle soreness, promote blood circulation, and aid in muscle recovery. Please read this manual thoroughly before use to ensure safe and effective operation.

Bild 1.1: Überview of the Sejoy Deep Tissue Massage Gun's key features.

2. Sicherheitshinweise

Um das Risiko von Stromschlägen, Bränden und Verletzungen zu verringern, beachten Sie bitte die folgenden Sicherheitsvorkehrungen:

• Das Gerät darf nicht in Wasser getaucht oder in feuchten Umgebungen verwendet werden.
• Halten Sie das Gerät von Wärmequellen und direkter Sonneneinstrahlung fern.
• Do not use the device on injured skin, open wounds, or areas with swelling.
• Konsultieren Sie vor der Anwendung einen Arzt, wenn Sie an einer Krankheit leiden, schwanger sind oder einen Herzschrittmacher haben.
• Do not use the device for more than 15 minutes continuously on a single muscle group.
• Außerhalb der Reichweite von Kindern aufbewahren.
• Verwenden Sie ausschließlich das mitgelieferte Ladekabel.
• Zerlegen oder modifizieren Sie das Gerät nicht.

3. Packungsinhalt

The Sejoy Deep Tissue Massage Gun package typically includes:

• Sejoy Deep Tissue Massage Gun (Model JMQ-WS-037-BLA)
• 8 auswechselbare Massageköpfe
• USB-Kabel Typ C.
• Tragetasche
• Bedienungsanleitung

4. Produktmerkmale

• Deep Muscle Treatment: 12mm penetration depth for effective relief of muscle soreness.
• Einstellbare Geschwindigkeiten: 30 different speed levels (1200-2800 RPM) for customized massage intensity.
• Vielseitige Massageköpfe: 8 interchangeable massage heads designed for various muscle groups and massage types.
• Lange Akkulaufzeit: Built-in 2500 mAh battery provides up to 10 hours of use on a single charge.
• Leiser Betrieb: High-quality motor operates at less than 45dB, ensuring a quiet massage experience.
• LCD-Touchscreen: Displays speed level, massage pressure, and remaining battery power.
• Tragbares Design: Lightweight (0.89 kg) with an ergonomic, anti-slip handle and included carrying bag for convenience.
• USB-Typ-C-Aufladung: Komfortable und weitgehend kompatible Lademethode.

Image 4.1: 12mm Deep Muscle Treatment.

Image 4.2: Super Quiet Design for discreet use.

Image 4.3: Lightweight and ergonomic design.

Image 4.4: Extra portable for travel and gym use.

5. Einrichtung

1. Grundgebühr: Before first use, fully charge the massage gun. Refer to the 'Charging' section for detailed instructions.
2. Massagekopf anbringen: Select the desired massage head. Align the head with the opening on the front of the gun and push it firmly into place. Ensure it is securely attached before use.

6. Bedienungsanleitung

6.1 Ein-/Ausschalten

• To power on, locate the main power switch at the bottom of the handle and slide it to the 'ON' position. Then, press and hold the power button on the LCD screen for a few seconds.
• To power off, press and hold the power button on the LCD screen for a few seconds until the display turns off. For complete power disconnection, slide the main power switch to the 'OFF' position.

6.2 Geschwindigkeitsstufen anpassen

The massage gun features 30 adjustable speed levels. Use the '+' and '-' buttons on the LCD touch screen to increase or decrease the massage intensity. The current speed level will be displayed on the screen.

Image 6.1: LCD screen and speed adjustment interface.

Image 6.2: Speed level recommendations for various massage needs.

6.3 Changing Massage Heads

To change a massage head, gently pull the currently attached head out of the device. Select a new head and firmly push it into the opening until it clicks into place.

Bild 6.3: Überview of the 8 replaceable massage heads and their recommended uses.

Image 6.4: Targeting specific muscle groups with appropriate massage heads.

6.4 Nutzungsrichtlinien

• Setzen Sie die Massagepistole auf den gewünschten Muskelbereich an.
• Move the device slowly over the muscle, applying gentle pressure.
• Direkten Kontakt mit Knochen, Gelenken und empfindlichen Bereichen vermeiden.
• Do not use on the head, face, or directly on the spine.
• The device has a 10-minute auto-off feature to prevent overuse.

7. Aufladen

The Sejoy Deep Tissue Massage Gun is equipped with a 2500 mAh rechargeable battery. The remaining battery power is displayed on the LCD screen.

• Connect the USB Type-C charging cable to the charging port on the device.
• Stecken Sie das andere Ende des Kabels in ein kompatibles USB-Netzteil (nicht im Lieferumfang enthalten) oder in einen USB-Anschluss Ihres Computers.
• Die Akkuanzeige auf dem LCD-Bildschirm zeigt den Ladestatus an.
• A full charge takes approximately 3-4 hours and provides up to 10 hours of use, depending on speed settings.
• Ensure the main power switch is in the 'OFF' position during charging.

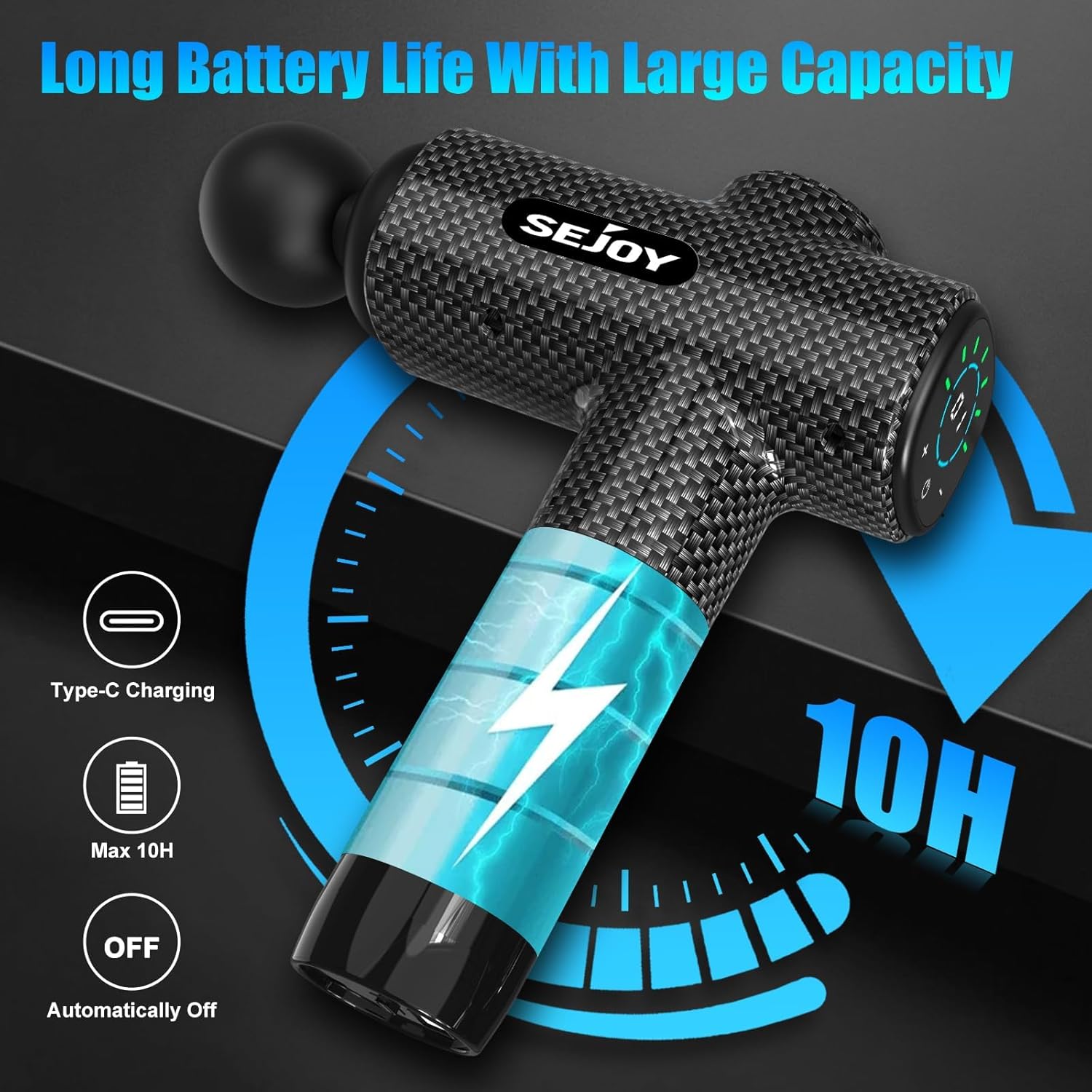

Image 7.1: Long battery life and Type-C charging.

Image 7.2: Convenient USB charging port.

8. Wartung und Pflege

• Reinigung: Wischen Sie das Gerät mit einem leichten damp Reinigen Sie das Gerät nach jedem Gebrauch mit einem Tuch. Verwenden Sie keine Scheuermittel und tauchen Sie das Gerät nicht in Wasser.
• Lagerung: Store the massage gun in its carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Massageköpfe: The massage heads can be removed and cleaned with mild soap and water. Ensure they are completely dry before reattaching.
• Wärmeableitung: The device features a heat sink design to maintain optimal performance. Ensure the heat dissipation vents are not blocked during use.

Image 8.1: Heat sink for efficient heat dissipation.

9. Fehlerbehebung

• Gerät lässt sich nicht einschalten: Ensure the main power switch is in the 'ON' position and the battery is charged. Press and hold the power button on the LCD screen.
• Keine Vibration: Check if a massage head is securely attached. Ensure the device is powered on and the speed level is set above zero.
• Kurze Akkulaufzeit: Ensure the device is fully charged before use. Battery life can vary based on the speed level used.
• Ungewöhnliches Geräusch: Turn off the device immediately. Check for any obstructions or loose parts. If the issue persists, contact customer support.

10. Spezifikationen

11. Garantie und Support

For warranty information or technical support, please refer to the product packaging or contact Sejoy customer service through the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
