Einführung
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your CIARRA Portable Range Hood. Designed for convenience and effective smoke and odor removal, this appliance is ideal for small kitchens, countertops, RVs, and indoor cooking activities like BBQ and hot pot.
Produkteigenschaften
- Dreischichtiges Filtrationssystem: Equipped with a polymer filter, aluminum alloy condensation net, and activated carbon filter (CBCF008) for comprehensive capture of oil fumes, grease, and cooking odors.
- Zwei-Geschwindigkeits-Einstellungen: Offers adjustable low and high-speed levels to suit various cooking needs, from light odors to heavy smoke.
- Extrem leiser Betrieb: Maintains noise levels below 65dB even at maximum power, ensuring a quiet cooking environment.
- Kompaktes und tragbares Design: Space-saving and lightweight, making it easy to move and store, perfect for limited spaces.
- Mühelose Reinigung: Detachable filter and oil cup can be rinsed with water, and the main unit requires only a simple wipe.
- Keine Installation erforderlich: Ready to use instantly with a one-click start, requiring no drilling or complex setup.
Lieferumfang
- CIARRA Portable Range Hood Unit
- Polymerfilter
- Carbon Filters (CBCF008)
- Grease Filter (Aluminum Alloy Condensation Net)
- Large Oil Collection Cup
- Netzteil

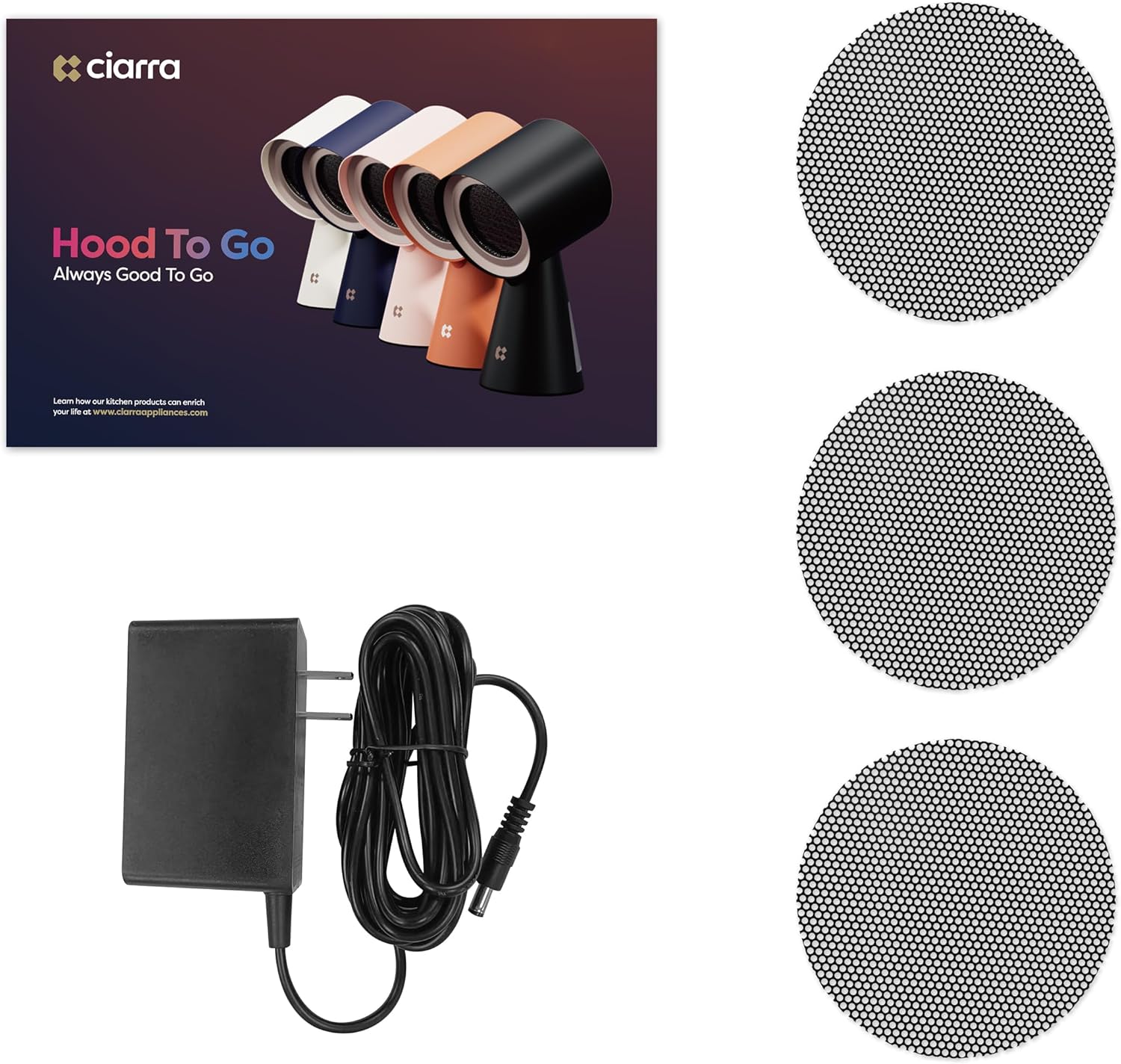

Image: Components included in the CIARRA Portable Range Hood package, showing the main unit, various filters, and the power adapter.
Aufstellen
The CIARRA Portable Range Hood is designed for immediate use without complex installation.
- Auspacken: Entnehmen Sie vorsichtig alle Komponenten aus der Verpackung.
- Platzierung: Place the range hood on a stable, flat surface near your cooking area. Ensure it is within 4 inches (10 cm) of the cooking surface for optimal performance.
- Stromanschluss: Connect the power adapter to the range hood and then plug it into a suitable power outlet.
- Erstprüfung: Ensure the oil collection cup is properly inserted and the filters are securely in place.
Image: The CIARRA Portable Range Hood in its compact, ready-to-use form.
Image: Important usage guidelines, including maintaining a distance of less than 4 inches from the cooking surface and warnings against use with gas or electric ceramic stovetops.
Bedienungsanleitung
Operating your CIARRA Portable Range Hood is straightforward with its one-button control.
- Ein-/Ausschalten: Press the power button located on the unit to turn the range hood on or off. The button will illuminate to indicate power status.
- Lüftergeschwindigkeit anpassen: The range hood features two speed settings. Press the power button once for low speed, and press it again for high speed. A third press will turn the unit off.
- Optimaler Einsatz: For best results, position the range hood directly over the cooking area to effectively capture smoke and odors.
Image: Demonstrates the simple one-button operation for powering on/off and adjusting fan speed.
Image: The mini range hood actively drawing in smoke and odors from a cooking pan.
Video: This video demonstrates the CIARRA Portable Range Hood in action, highlighting its easy touch control, low noise level, strong suction power, and portability for cooking anytime, anywhere. It also shows the triple filter system and easy cleaning process.
Wartung und Reinigung
Regular cleaning and maintenance ensure optimal performance and longevity of your range hood.
- Oil Collection Cup: The large oil collection cup should be emptied and rinsed with water after each use or when visibly full.
- Filterreinigung/Filteraustausch: The polymer filter and aluminum alloy condensation net can be rinsed with water. The activated carbon filter (CBCF008) should be replaced periodically depending on usage. The magnetic filter holder makes changing filters easy.
- Haupteinheit: Wischen Sie die Außenseite des Hauptgeräts mit einem weichen, fusselfreien Tuch ab.amp Tuch. Tauchen Sie das Hauptgerät nicht in Wasser.
Bild: Detailliert view of the multi-filtration system, showing the polymer filter, aluminum filter (AL125124), and carbon filter (CBCF008).
Wichtige Sicherheitsinformationen
- Do not use the range hood with gas stovetops.
- Do not use the range hood with electric ceramic stovetops.
- Ensure the range hood is placed close to the cooking surface (within 4 inches or 10 cm) for effective smoke capture.
- Do not operate the unit if the filters are missing or improperly installed.
- Außerhalb der Reichweite von Kindern aufbewahren.
- Vor der Reinigung oder Durchführung von Wartungsarbeiten ziehen Sie den Netzstecker des Geräts.
Fehlerbehebung
If you encounter issues with your CIARRA Portable Range Hood, please refer to the following common solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Gerät lässt sich nicht einschalten. | Not plugged in; Power outlet malfunction; Power button issue. | Check power connection; Try a different outlet; Ensure power button is pressed firmly. |
| Poor smoke/odor capture. | Unit too far from cooking surface; Clogged filters; Incorrect fan speed. | Reposition unit closer to cooking surface (within 4 inches); Clean or replace filters; Increase fan speed. |
| Übermäßiger Lärm. | Obstruction in fan; Unit not stable. | Check for foreign objects; Ensure unit is on a flat, stable surface. |
| Oil cup overflowing. | Oil cup not emptied regularly. | Empty and clean the oil collection cup more frequently. |
Technische Daten
| Spezifikation | Detail |
|---|---|
| Marke | CIARRA |
| Modellnummer | AWPHL01 |
| Material | Plastik |
| Geräuschpegel | 50 dB (up to 65dB at max power) |
| Montagetyp | Desktop / Portable |
| Im Lieferumfang enthaltene Komponenten | Polymer Filter, Carbon Filters, Grease Filter, Large Oil Collection Cup |
| Steuerelementtyp | Druckknopf |
| Anzahl der Geschwindigkeiten | 2 |
| Wastage | 24 Watt |
| Filtertyp | Mesh, Activated Carbon |
| Belüftungstyp | Umwälzung |
| Artikelgewicht | 5.44 Pfund |
| Technische Daten | 6.3 x 6.3 x 13.5 Zoll (16 x 16 x 34.3 cm) |
| Farbe | Blau |
Image: Dimensional drawing of the CIARRA Portable Range Hood, showing its height, width, and depth measurements.
Garantie und Support
For warranty information and customer support, please refer to the product packaging or contact CIARRA customer service directly. Keep your purchase receipt for warranty claims.
You can also visit the official CIARRA store for more information: CIARRA Store
