1. Produktüberschreitungview

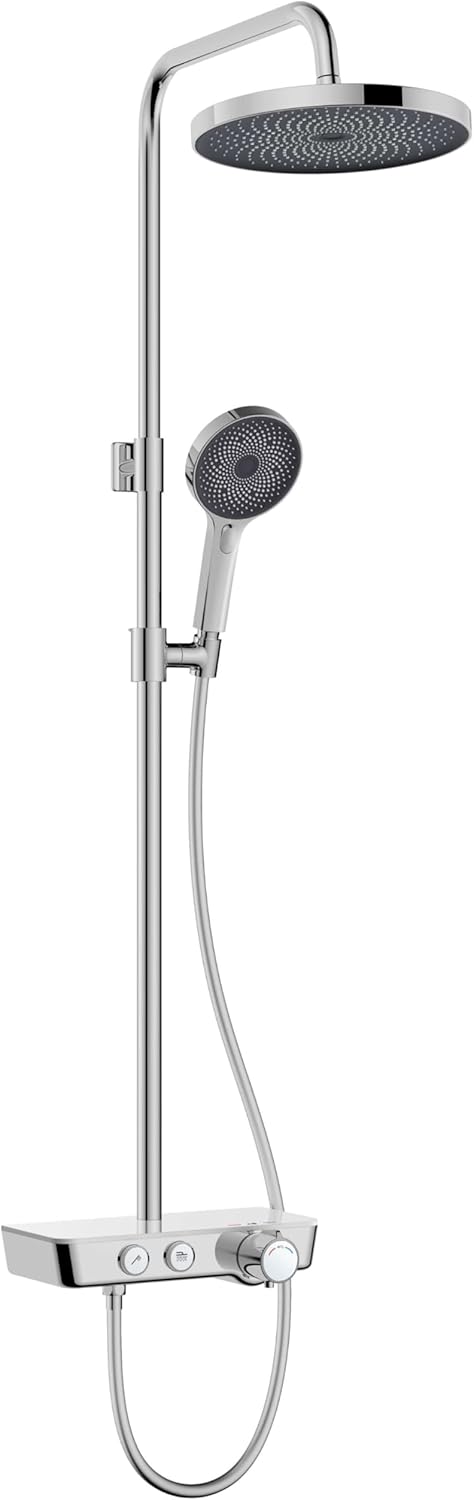

The kielle Oudee Douche System, Model 20602000, is a modern shower solution designed for comfort and functionality. It features an integrated thermostat for precise temperature control, a large 260mm overhead shower, and a hand shower with three distinct spray types. This manual provides essential information for the safe and correct use of your new shower system.
Hauptmerkmale:
- Integrated Thermostat: Ensures consistent water temperature.
- Adjustable Overhead Shower: Height can be adjusted for user preference.
- Practical Shelf: Convenient storage for shower gels and shampooh.
- Three Spray Types: Includes SilkFlow for gentle cleaning and relaxation.
- TouchClean Function: Facilitates easy cleaning of spray nozzles.
2. Sicherheitshinweise
Bitte lesen Sie vor der Installation und Verwendung alle Sicherheitshinweise sorgfältig durch. Die Nichtbeachtung dieser Anweisungen kann zu Verletzungen oder Schäden am Produkt führen.
- Professionelle Installation empfohlen: For optimal performance and safety, installation by a qualified plumber is recommended.
- Wasserversorgung: Vor Beginn jeglicher Installationsarbeiten muss unbedingt die Hauptwasserzufuhr abgestellt werden.
- Temperatureinstellungen: The thermostat is factory-set to prevent scalding. Do not tamper with internal components unless instructed by a professional.
- Reinigung: Use only mild cleaning agents. Abrasive cleaners can damage the finish.
- Kinder: Supervise children when they are near the shower system to prevent accidental adjustments or misuse.
3. Einrichtung und Installation
This section provides general guidance for installing the kielle Oudee Douche System. Refer to the detailed installation diagram for specific measurements and component placement.
3.1 Packungsinhalt
Vor der Installation prüfen Sie bitte, ob alle Komponenten vorhanden sind:
- Overhead shower head
- Handbrause
- Duschschlauch
- Shower column/rail
- Thermostat mixing unit with integrated shelf
- Mounting hardware (screws, wall plugs, gaskets)
- Bedienungsanleitung
3.2 Installationsschritte
- Bereiten Sie den Installationsbereich vor: Drehen Sie die Hauptwasserzufuhr ab. Räumen Sie den Bereich frei, in dem die Duschanlage installiert werden soll.
- Mount the Thermostat Unit: Position the thermostat unit at the desired height. Mark and drill holes for mounting. Secure the unit to the wall using the provided hardware. Ensure it is level.
- Wasserversorgung anschließen: Connect the hot and cold water lines to the corresponding inlets on the thermostat unit. Use appropriate seals and tighten connections securely to prevent leaks.
- Assemble the Shower Column: Attach the shower column to the thermostat unit. Secure any additional wall brackets for stability.
- Install Overhead Shower: Attach the overhead shower head to the top of the shower column. Ensure it is securely fastened.
- Handbrause und Schlauch installieren: Connect the shower hose to the thermostat unit and the hand shower. Place the hand shower in its adjustable holder on the column.
- Auf Dichtheit prüfen: Drehen Sie die Hauptwasserzufuhr langsam auf und prüfen Sie alle Anschlüsse auf Undichtigkeiten. Ziehen Sie alle undichten Verbindungen fest.
- Funktionstest: Test both the overhead and hand showers, and verify the thermostat's temperature control.
4. Bedienungsanleitung
Familiarize yourself with the controls to fully utilize your kielle Oudee Douche System.
4.1 Temperaturregelung
The thermostat unit features a temperature control knob. Rotate the knob to adjust the water temperature. A safety stop is typically set at 38°C (100°F) to prevent accidental scalding. To exceed this temperature, press the safety button while turning the knob.
4.2 Wasserdurchfluss und Umlenkung
Use the diverter knob or button on the thermostat unit to switch between the overhead shower and the hand shower. Adjust the flow rate by turning the main control knob.
4.3 Hand Shower Spray Types
The hand shower offers three distinct spray types for varied showering experiences. These can typically be selected by pressing a button or rotating a dial on the hand shower head itself.
- SilkFlow: A gentle, soft spray designed for relaxation and thorough rinsing.
- EasyClick: (Implied feature, likely for easy spray selection)
- MistFlow: A fine, invigorating mist spray.
4.4 Höhenverstellung
The hand shower holder on the column can be adjusted vertically to suit different user heights. Loosen the holder, slide it to the desired position, and then tighten it to secure.
5. Wartung
Regular cleaning and maintenance will ensure the longevity and optimal performance of your kielle Oudee Douche System.
5.1 Cleaning the Shower Heads (TouchClean)
The shower heads are equipped with a TouchClean function. To remove limescale and mineral deposits from the nozzles, simply rub them with your finger or a soft cloth. This should be done regularly, especially in areas with hard water.
5.2 Allgemeine Reinigung
- Clean the surfaces of the shower system with a soft cloth and a mild, non-abrasive cleaning agent.
- Avoid using harsh chemicals, abrasive sponges, or cleaners containing alcohol, acid, or ammonia, as these can damage the finish.
- Nach der Reinigung gründlich mit klarem Wasser abspülen und mit einem weichen Tuch trocknen, um Wasserflecken zu vermeiden.
6. Fehlerbehebung
If you encounter issues with your kielle Oudee Douche System, refer to the following common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Niedriger Wasserdruck | Clogged shower head nozzles; partially closed stopcock; low household water pressure. | Clean shower head nozzles using TouchClean function; ensure stopcocks are fully open; consult a plumber if household pressure is consistently low. |
| Die Wassertemperatur schwankt | Thermostat cartridge issue; inconsistent hot/cold water supply. | Ensure stable hot and cold water supply. If problem persists, contact a qualified plumber to inspect or replace the thermostat cartridge. |
| Lecks aus Verbindungen | Lose Verbindungen; beschädigte Dichtungen. | Turn off water supply. Gently tighten connections. If leaks persist, replace seals or contact a plumber. |
| Difficulty changing spray types | Limescale buildup in hand shower mechanism. | Clean the hand shower head thoroughly, especially around the spray selection mechanism. |
If the problem persists after attempting these solutions, please contact kielle customer support or a qualified plumber.
7. Spezifikationen
Detailed technical specifications for the kielle Oudee Douche System, Model 20602000.
| Spezifikation | Detail |
|---|---|
| Marke | kielle |
| Modellnummer | 20602000 |
| Farbe | Chrome/White/Black |
| Material | Plastic (components may vary, main body typically metal) |
| Anzahl der Griffe | 1 (for flow/temperature control) |
| Durchmesser der Deckendusche | 260 mm |
| Sprüharten | 3 (e.g., SilkFlow, MistFlow) |
| Erstes verfügbares Datum | 27. August 2023 |
8. Garantie und Support
kielle products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official kielle webWebsite.
For technical support, spare parts, or any inquiries regarding your kielle Oudee Douche System, please contact kielle customer service through their official channels. When contacting support, please have your model number (20602000) and purchase information readily available.
