Puroma TH001QV 4-Digit Combination Lock Instruction Manual

Einführung

The Puroma TH001QV 4-Digit Combination Lock is designed to provide reliable security for your belongings. Constructed from durable zinc alloy and steel, this weatherproof padlock offers 10,000 unique combinations, making it a secure choice for various applications. Its user-friendly design allows for easy combination setting and one-handed operation.

Merkmale

• 4-stellige Kombination: Offers 10,000 unique combinations for enhanced security, making it significantly harder to decode than 3-digit locks.
• Robuste und langlebige Konstruktion: Made of premium zinc alloy and steel, resistant to rust and corrosion, ensuring long-lasting performance.
• Wetterfestes Design: Ideal for both indoor and outdoor use, capable of withstanding various weather conditions.
• Side Window for Easy Setting: Features a convenient side window design that simplifies the process of setting and reading your combination, allowing for one-handed operation.
• Breite Anwendung: Suitable for securing gym lockers, school lockers, sports lockers, gates, sheds, fences, toolboxes, and cases.
• Kompakt und tragbar: Lightweight and compact design makes it easy to carry and use wherever security is needed.

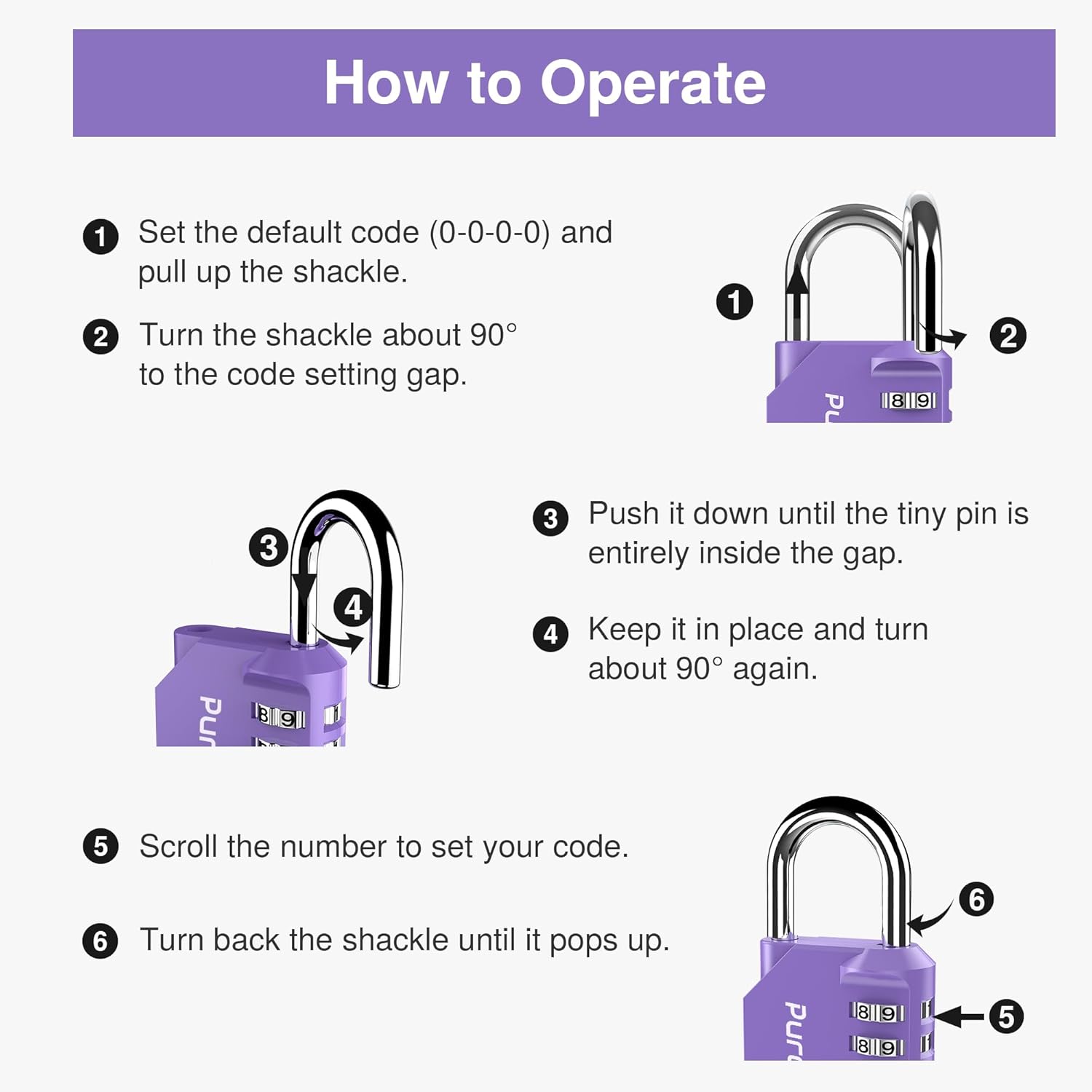

Einrichtung: Ihre Kombination einstellen

Your Puroma 4-Digit Combination Lock comes with a default combination of 0-0-0-0. Follow these steps to set your personalized combination:

1. Set the lock to the default combination (0-0-0-0) and pull up the shackle.
2. Rotate the shackle approximately 90 degrees to align with the code setting gap.
3. Push the shackle down firmly until the tiny pin is entirely inside the gap.
4. While holding the shackle down, turn it another 90 degrees.
5. Scroll the number dials to set your desired 4-digit code. Ensure the numbers are clearly visible in the side window.
6. Once your new code is set, turn the shackle back to its original position until it pops up.
7. Scramble the dials to lock the device. Your new combination is now set.

For a visual demonstration, please watch the video below:

Betrieb

To unlock your Puroma combination lock:

1. Align your preset 4-digit combination in the side window.
2. Ziehen Sie den Bügel nach oben, um das Schloss zu öffnen.

To lock your Puroma combination lock:

1. Close the shackle into the lock body.
2. Scramble the number dials to a random sequence. The lock is now secured.

Wartung

To ensure the longevity and smooth operation of your Puroma combination lock, consider the following maintenance tips:

• Regelmäßige Reinigung: Wipe the lock body and shackle with a soft, damp Mit einem Tuch Schmutz und Staub entfernen. Scharfe Chemikalien vermeiden, die die Oberfläche beschädigen könnten.
• Schmierung: Periodically apply a small amount of silicone-based lubricant to the shackle mechanism and dials to maintain smooth movement, especially if used in dusty or outdoor environments.
• Auf Verschleiß prüfen: Regularly check the shackle and lock body for any signs of damage, corrosion, or wear that might compromise security.
• Wetterschutz: While the lock is weatherproof, prolonged exposure to extreme conditions may still affect its appearance. Consider placing it in a sheltered area if possible for extended periods.

Fehlerbehebung

If you encounter issues with your Puroma combination lock, try these solutions:

• Difficulty Turning Dials: Ensure the dials are clean and free of debris. Apply a small amount of lubricant if they feel stiff.
• Shackle Not Opening: Double-check that the correct combination is perfectly aligned in the side window. Sometimes a slight misalignment can prevent opening.
• Forgetting Combination: Unfortunately, if you forget your combination and did not record it, there is no master key or backdoor to reset the lock. You may need to replace the lock.
• Lock Feels Loose: Inspect the lock for any visible damage. If the lock feels compromised, discontinue use and replace it for security reasons.

Technische Daten

Garantie und Support

The Puroma TH001QV 4-Digit Combination Lock comes with a 12 Monate Garantie Diese Garantie gilt ab Kaufdatum und deckt Herstellungsfehler ab. Sie gewährleistet Ihre Zufriedenheit mit dem Produkt.

For any questions, concerns, or warranty claims, please contact Puroma customer support through their official website or the retailer where the product was purchased. Please have your purchase details and model number (TH001QV) ready for faster assistance.

Verwendungsbeispielamples

The Puroma TH001QV lock is versatile and can be used in various settings:

• Gym Lockers: Secure your personal items while working out.
• School Lockers: Keep school supplies and valuables safe.
• Outdoor Gates & Fences: Add an extra layer of security to your property.
• Toolboxes & Cases: Protect tools and equipment from unauthorized access.
