Sharp SKM430F9HS 30-Zoll-Einbaumikrowellen-Blendenset – Bedienungsanleitung

Einführung

This manual provides detailed instructions for the installation, operation, and maintenance of your Sharp SKM430F9HS 30-inch Built-In Microwave Trim Kit. This trim kit is designed to provide a seamless, built-in appearance for compatible Sharp 2.2 cu. ft. 1200W Countertop Microwave Ovens, specifically models SMC2266HS, SMC2265GS, SMC2265KS, and SMC2266KS. Please read all instructions carefully before installation and use.

Notiz: The microwave oven is not included with the purchase of this trim kit.

Setup und Installation

The Sharp SKM430F9HS trim kit includes all necessary ducts, finish trim, and easy-to-follow instructions for installation. Proper installation ensures optimal performance and aesthetic integration with your kitchen cabinetry.

Erforderliche Werkzeuge (nicht im Lieferumfang enthalten):

• Maßband
• Bleistift
• Kreuzschlitzschraubendreher
• Bohren Sie mit geeigneten Bohrern
• Ebene

Cabinet Opening Requirements:

Ensure your cabinet opening meets the following dimensions for a proper fit:

• Breite: Minimum 28.5 inches, Maximum 31 inches
• Höhe: Refer to the specific microwave oven manual for exact height requirements, as the trim kit is designed to accommodate the microwave's dimensions within the cabinet.
• Tiefe: Sufficient depth to allow for microwave and ventilation ducts.

Installationsschritte:

1. Bereiten Sie den Schrank vor: Ensure the cabinet opening is clean, dry, and meets the specified dimensions.
2. Install Ducts: Attach the rear, upper, and lower ducts as per the detailed instructions provided in the trim kit packaging. These ducts are crucial for proper ventilation and heat dissipation.
3. Position Microwave: Carefully slide the compatible Sharp microwave oven into the prepared cabinet opening, ensuring it sits securely on the lower ducts.
4. Attach Trim Frame: Secure the stainless steel trim frame around the microwave, aligning it with the cabinet opening. Use the provided screws and hardware to fasten the trim kit in place.
5. Letzte Kontrollen: Verify that the microwave is level and securely installed. Ensure all ventilation slots are unobstructed.

Image: The Sharp SKM430F9HS 30-inch Built-In Microwave Trim Kit, showcasing its seamless integration with a compatible Sharp microwave oven in a kitchen setting.

Bild: Eine Nahaufnahme view of the Sharp SKM430F9HS 30-inch Built-In Microwave Trim Kit, highlighting the stainless steel finish and ventilation details.

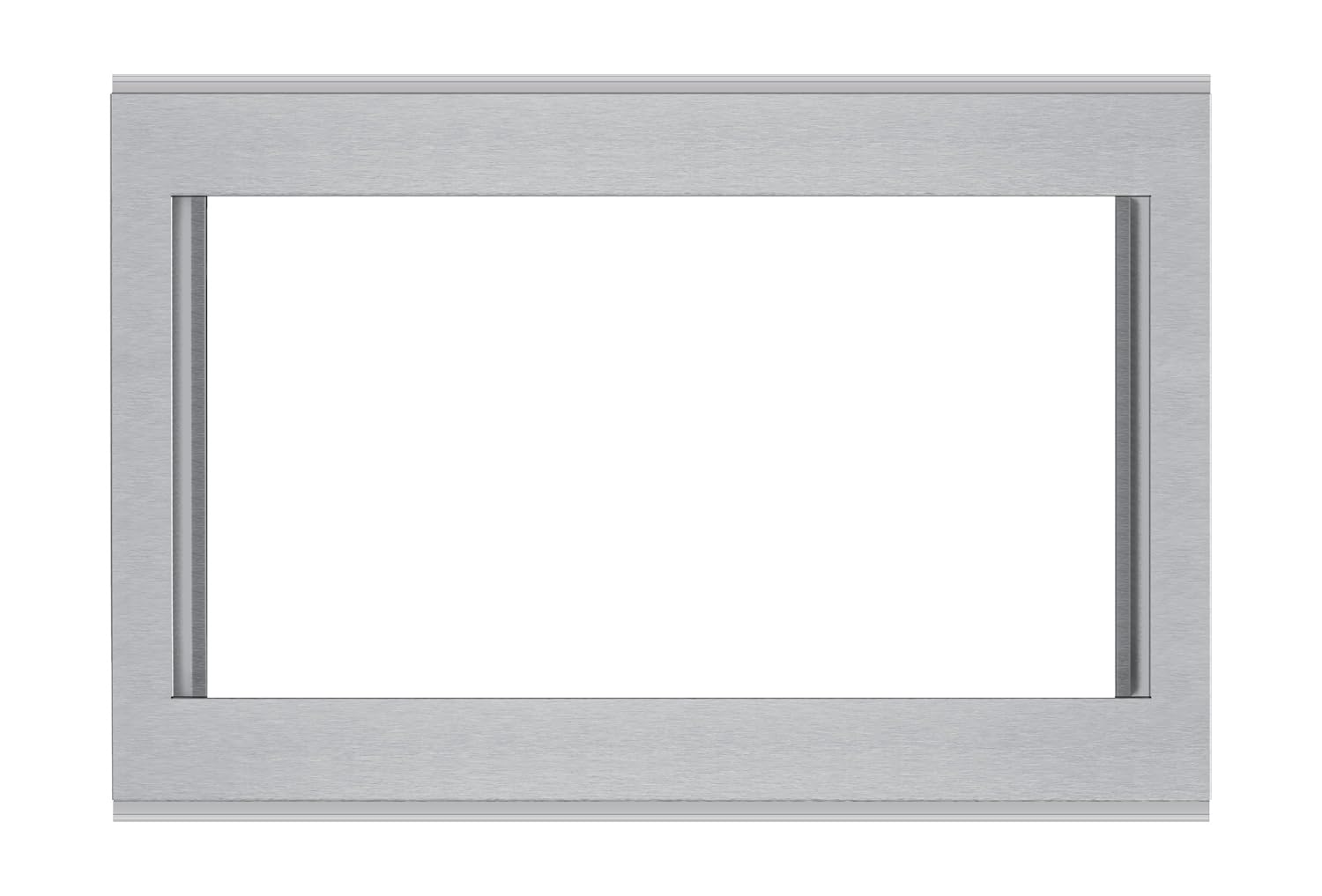

Image: An alternative perspective of the Sharp SKM430F9HS 30-inch Built-In Microwave Trim Kit, showing the overall design and how it frames the microwave.

Betrieb

The Sharp SKM430F9HS trim kit itself does not have operational controls. Its function is to provide a finished, built-in look and ensure proper ventilation for your compatible Sharp microwave oven. All operational functions, such as setting cooking times, power levels, and using preset menus, are performed directly on the microwave oven's control panel.

For detailed instructions on operating your microwave oven, please refer to the specific owner's manual provided with your Sharp 2.2 cu. ft. 1200W Countertop Microwave Oven (models SMC2266HS, SMC2265GS, SMC2265KS, or SMC2266KS).

Belüftung:

The trim kit is designed with integrated ventilation to prevent heat buildup within the cabinet during microwave operation. Ensure that these ventilation openings are never blocked to maintain optimal performance and safety.

Wartung und Pflege

To keep your Sharp SKM430F9HS trim kit looking its best and functioning correctly, follow these simple maintenance guidelines:

Cleaning the Stainless Steel Finish:

• Verwenden Sie ein weiches Tuch dampMit warmem Wasser und einem milden Reinigungsmittel reinigen.
• Wischen Sie in Richtung der Maserung, um Streifen zu vermeiden.
• For stubborn spots, use a stainless steel cleaner specifically designed for appliances, following the product's instructions.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the finish.
• Dry thoroughly with a soft, clean cloth to prevent water spots.

Beatmungspflege:

• Periodically check the ventilation slots on the trim kit to ensure they are free from dust, debris, or obstructions.
• Use a soft brush or vacuum cleaner attachment to gently clear any blockages.

Fehlerbehebung

The Sharp SKM430F9HS trim kit is a passive component and does not typically experience operational malfunctions. Most issues related to the microwave's performance will stem from the microwave oven itself.

Häufige Bedenken:

• Microwave not fitting correctly: Double-check the cabinet opening dimensions against the specifications in this manual and your microwave's manual. Ensure all installation steps were followed precisely.
• Excessive heat around the trim kit: Verify that all ventilation ducts are correctly installed and unobstructed. Ensure the microwave is not being operated for excessively long periods without proper airflow.
• Scratches or damage to the finish: Refer to the "Maintenance and Care" section for cleaning tips. For significant damage, contact Sharp customer support.

For any operational issues with the microwave oven itself (e.g., not heating, display errors, turntable not rotating), please consult the troubleshooting section of your specific Sharp microwave oven's owner's manual or contact Sharp customer service directly.

Technische Daten

Garantie und Support

For warranty information regarding your Sharp SKM430F9HS 30-inch Built-In Microwave Trim Kit, please refer to the warranty card included with your product or visit the official Sharp webDie Garantiebedingungen können je nach Website variieren.

For technical support, installation assistance, or to inquire about replacement parts, please contact Sharp customer service directly. Contact information can typically be found on the Sharp website or in the documentation accompanying your product.

Online-Hilfe: www.sharpusa.com
