MONKEY LOOP ML-DT1 Distortion Pedal User Manual

Einführung

Thank you for choosing the MONKEY LOOP ML-DT1 Distortion Pedal. This pedal is designed to provide a wide range of distortion effects for electric guitars, allowing you to sculpt your sound with precision. Featuring intuitive controls for Tone, Gain, and Level, along with True Bypass circuitry, the ML-DT1 ensures signal integrity and versatile sound shaping. Please read this manual carefully to understand the pedal's features and ensure proper operation.

Produkt überview

The MONKEY LOOP ML-DT1 is a compact and robust distortion pedal for electric guitars. It features three primary control knobs and a footswitch for engaging the effect.

Hauptmerkmale:

Distortion Effect: Delivers a powerful distortion sound for electric guitars.
Tonsteuerung: Adjusts the tonal characteristics of the distorted sound.
Kontrolle erlangen: Manages the amount of distortion applied to the signal.
Niveauregulierung: Sets the overall output volume of the effect.
Echter Bypass: Ensures that your guitar's signal remains unaffected when the pedal is disengaged.
Kompaktes Design: Small footprint for easy integration into any pedalboard.
Effizienter Stromverbrauch: Operates on a standard DC 9V power supply with low current draw.

Bedienelemente und Anschlüsse:

Familiarize yourself with the pedal's layout:

GAIN-Regler: Controls the intensity of the distortion. Turn clockwise for more distortion.
TONE-Regler: Adjusts the equalization of the distorted sound, from darker to brighter tones.
LEVEL-Regler: Sets the output volume of the effect.
Fußschalter: Schaltet den Effekt ein/aus. Die LED-Anzeige leuchtet, wenn der Effekt aktiv ist.
IN-Buchse: 6,35-mm-Eingang für Ihre Gitarre.
OUT-Buchse: 1/4-Zoll-Ausgang zu Ihrem ampVerstärker oder nächstes Pedal in der Kette.
DC-9-V-Eingang: Power input for a standard 9V DC adapter (center negative).

Spitze view of the MONKEY LOOP ML-DT1 Distortion Pedal showing the Gain, Tone, and Level knobs, and the footswitch. — Abbildung 1: Oben view of the ML-DT1 pedal with controls labeled.

This image displays the top surface of the ML-DT1 Distortion Pedal. Visible are the three control knobs: GAIN, TONE, and LEVEL, which allow for precise adjustment of the distortion effect. The prominent footswitch is located at the front, used to activate or deactivate the pedal. The red LED indicator, when lit, signifies that the distortion effect is engaged. The "TRUE BYPASS" label is also visible, indicating the pedal's signal routing when off.

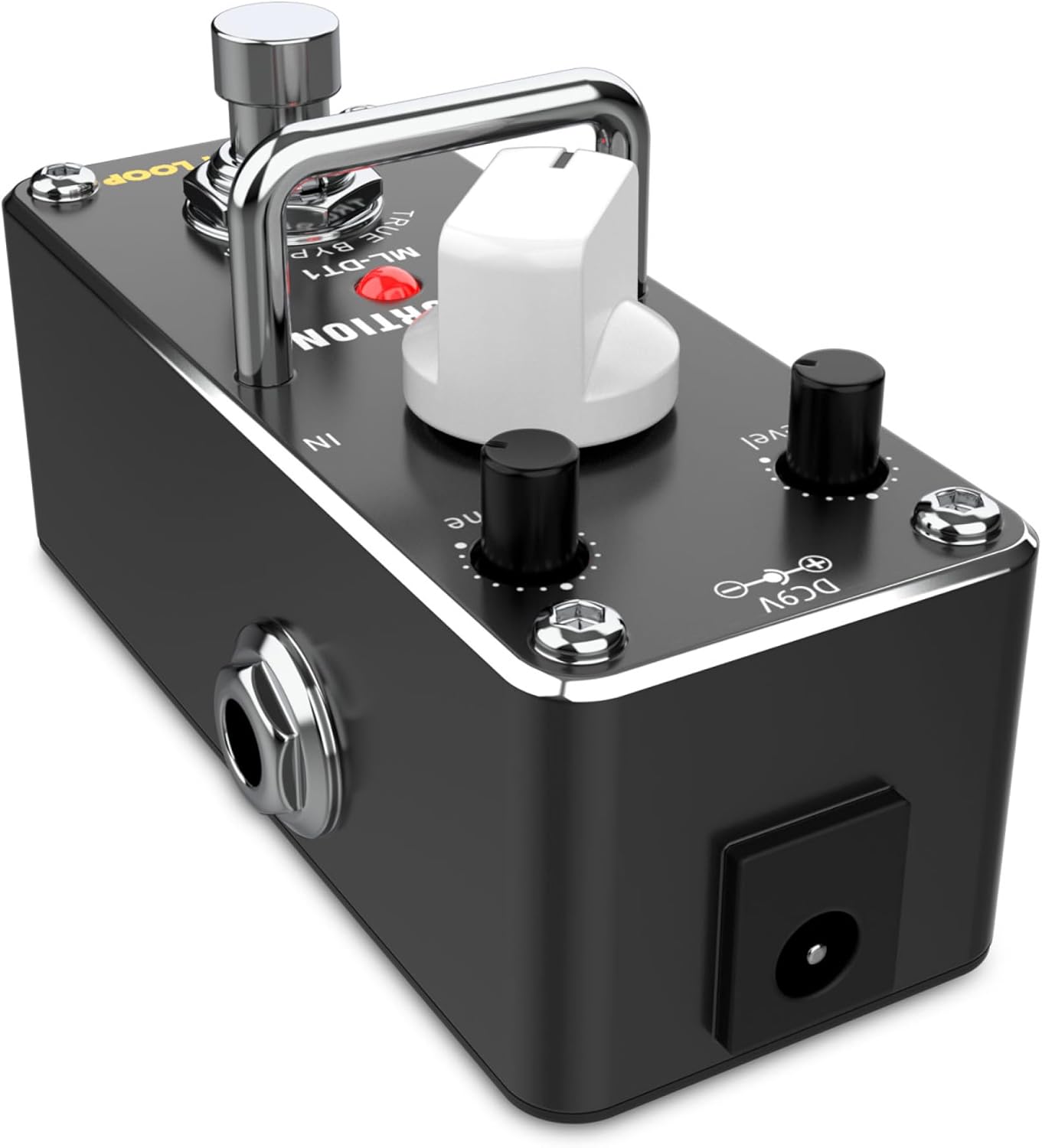

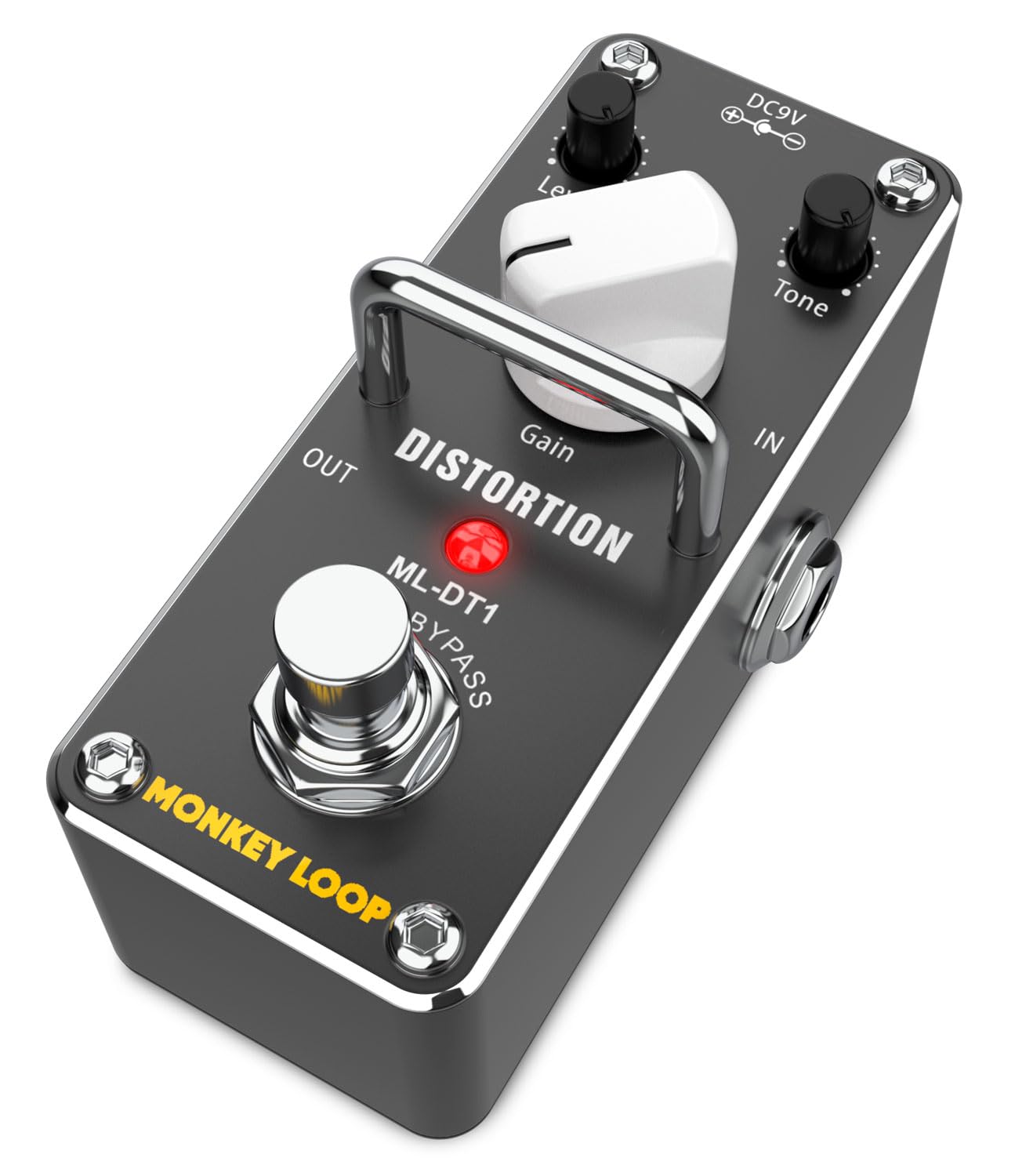

Abgewinkelt view of the MONKEY LOOP ML-DT1 Distortion Pedal, showing input, output, and power jacks. — Abbildung 2: Schräg view of the ML-DT1 pedal, highlighting input, output, and power connections.

This image provides an angled perspective of the ML-DT1 Distortion Pedal. It clearly shows the 1/4-inch input jack labeled "IN" on the right side, where the guitar signal enters. The 1/4-inch output jack labeled "OUT" is on the left side, connecting to an amplifier or subsequent effects. The DC 9V power input is visible on the rear, indicating where the power adapter should be connected. The control knobs and footswitch are also visible from this angle.

Aufstellen

Follow these steps to set up your ML-DT1 Distortion Pedal:

Stromanschluss: Connect a standard 9V DC power adapter (center negative, not included) to the DC 9V input jack on the pedal. Ensure the power supply meets the specifications (5.5 mA current consumption).
Gitarreneingang: Connect your electric guitar to the "IN" jack on the right side of the pedal using a 1/4-inch instrument cable.
Ausgabe an AmpReiniger: Schließen Sie die „OUT“-Buchse auf der linken Seite des Pedals an Ihre Gitarre an. amplifier's input or to the input of the next effect pedal in your signal chain, using another 1/4-inch instrument cable.
Anfangseinstellungen: Bevor Sie Ihren einschalten amplifier, set the GAIN, TONE, and LEVEL knobs to their minimum positions (fully counter-clockwise) to avoid sudden loud sounds.
Einschalten: Schalten Sie Ihr amplifier, then apply power to the ML-DT1 pedal.

Seite view of the MONKEY LOOP ML-DT1 Distortion Pedal showing the input and output jacks clearly. — Abbildung 3: Seite view illustrating the input and output connections of the ML-DT1 pedal.

Dieses Bild zeigt eine Seite view of the ML-DT1 pedal, emphasizing the 1/4-inch audio input and output jacks. The "IN" jack is on the right, and the "OUT" jack is on the left. This view helps in understanding the correct orientation for connecting instrument cables from your guitar and to your ampLifier oder andere Pedale.

Bedienungsanleitung

Once the pedal is set up, you can begin to explore its distortion capabilities:

Den Effekt aktivieren: Press the footswitch to activate the distortion effect. The red LED indicator will light up. Press it again to bypass the effect (LED off).
Anpassen der Verstärkung: Start with the GAIN knob at a low setting. Slowly turn it clockwise to increase the amount of distortion, from a subtle crunch to heavy saturation.
Tonhöhe anpassen: Use the TONE knob to shape the frequency response of the distorted sound. Turn it counter-clockwise for a warmer, darker tone, and clockwise for a brighter, more cutting sound.
Niveau anpassen: The LEVEL knob controls the overall output volume of the pedal when the effect is engaged. Adjust it to match the volume of your bypassed signal or to boost your sound for solos.
Experimentieren: The interaction between GAIN, TONE, and LEVEL allows for a wide variety of distortion sounds. Experiment with different settings to find your desired tone.

A person's foot pressing the footswitch of the MONKEY LOOP ML-DT1 Distortion Pedal, with a guitar in the background. — Figure 4: The ML-DT1 pedal in use, demonstrating the footswitch operation.

This image shows the ML-DT1 pedal on the floor, connected with cables, and a foot positioned to press the footswitch. This illustrates the typical usage scenario for a guitar effect pedal, where the musician uses their foot to engage or disengage the effect during performance. A guitar is visible in the background, indicating the context of use.

Wartung

Proper care will ensure the longevity and optimal performance of your ML-DT1 pedal:

Reinigung: Reinigen Sie die Außenseite des Pedals mit einem weichen, trockenen Tuch. Vermeiden Sie die Verwendung von Scheuermitteln, Lösungsmitteln oder Wachsen, da diese die Oberfläche oder die internen Bauteile beschädigen können.
Lagerung: Store the pedal in a cool, dry place away from direct sunlight and extreme temperatures. If not in use for an extended period, disconnect the power supply.
Handhabung: Behandeln Sie das Pedal vorsichtig. Vermeiden Sie es, es fallen zu lassen oder starken Stößen auszusetzen.
Stromversorgung: Always use a regulated 9V DC power supply with a center-negative polarity. Using an incorrect power supply can damage the unit and void the warranty.

Fehlerbehebung

If you encounter issues with your ML-DT1 pedal, refer to the following common problems and solutions:

Problem	Mögliche Ursache	Lösung
Kein Geräusch beim Betätigen des Pedals.	Falsche Stromversorgung. Kabel nicht richtig angeschlossen. LEVEL knob set to minimum. Defektes Kabel oder ampschwerer.	Ensure 9V DC, center-negative power supply is used. Check all cable connections (IN, OUT). Erhöhen Sie den LEVEL-Regler. Testen Sie mit verschiedenen Kabeln und ampschwerer.
Unerwünschte Geräusche oder Brummen.	Problem mit Masseschleifen. Störungen durch andere elektronische Geräte. High GAIN setting. Fehlerhafte Stromversorgung.	Verwenden Sie ein isoliertes Netzteil. Halten Sie das Pedal von Leistungstransformatoren und Leuchtstoffröhren fern. Reduce GAIN setting. Versuchen Sie es mit einem anderen Netzteil.
Die LED leuchtet nicht.	Kein Strom. Defekte LED.	Check power connection and supply. Wenn die Stromversorgung bestätigt ist, wenden Sie sich bitte an den Support.

Technische Daten

Technical specifications for the MONKEY LOOP ML-DT1 Distortion Pedal:

Modell	ML-DT1
Effekttyp	Verzerrung
Eingangsimpedanz	500 kOhm
Ausgangsimpedanz	150 Ohm
Äquivalentes Eingangsrauschen	-90 dBu oder weniger
Strombedarf	Gleichstrom 9 V (Mittelkontakt negativ)
Stromverbrauch	5.5 mA
Abmessungen (L x B x H)	94 mm × 42 mm × 48 mm
Gewicht	133 g
Material	Kunststoff, Metall
Hardware-Schnittstelle	1/4-inch Audio Jack

Abgewinkelt view of the MONKEY LOOP ML-DT1 Distortion Pedal with overlaid text showing specifications like input impedance, output impedance, equivalent input noise, and current consumption. — Figure 5: ML-DT1 pedal with key technical specifications highlighted.

Dieses Bild zeigt eine schräge Ansicht view of the ML-DT1 pedal, similar to Figure 2, but with an overlay of text detailing several key specifications. These include "DISTORTION EFFECT WITH TONE AND GAIN CONTROL", "INPUT IMPEDANCE: 500 KOHM", "OUTPUT IMPEDANCE: 150 OHMS", "EQUIVALENT INPUT NOISE: -90 DBU OR LESS", and "CURRENT CONSUMPTION: 5.5 MA (DC 9V)". This visual summary reinforces the technical data provided in the specifications table.

Unten view of the MONKEY LOOP ML-DT1 Distortion Pedal showing power requirements and regulatory marks. — Abbildung 6: Unten view of the ML-DT1 pedal, displaying power requirements and compliance markings.

This image shows the bottom panel of the ML-DT1 pedal. Clearly visible are the power specifications: "Power: DC 9V Adapter" and "Polarity: Center Negative". Regulatory compliance marks such as "FC CE" and "RoHS" are also present, along with "Made in China". This information is crucial for ensuring correct power supply usage and understanding product certifications.

Garantie und Support

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official MONKEY LOOP webBewahren Sie Ihren Kaufbeleg für eventuelle Garantieansprüche auf.
