Einführung
This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your VIRIBUS 7-Speed Foldable Adult Tricycle, Model ABF-R1AB-AC. Please read this manual thoroughly before using your tricycle to ensure safe and efficient operation. Keep this manual for future reference.
Produkt überview
The VIRIBUS Foldable Adult Tricycle is designed for comfortable and stable riding, suitable for various activities such as urban commuting, leisurely outings, and grocery shopping. Its robust construction and thoughtful features enhance your riding experience.
Hauptmerkmale:
- Convenient Folding Design: Allows for easy storage and transport, making it ideal for various travel needs.
- 7-Gang-Schaltwerk: Provides smooth and accurate gear changes for adaptable riding across different terrains.
- Removable Wheeled Rear Basket: Angebote ample storage capacity, supporting up to 66 pounds for groceries or personal items.
- Comfortable and Stable Ride: Features a large saddle for exceptional comfort and a secure, wobble-free design suitable for all skill levels.
- Langlebige Konstruktion: Crafted from carbon steel with a low step-through frame, supporting riders up to 330 pounds. Adjustable seat and handlebar ensure a personalized fit.
Image: The VIRIBUS 7-Speed Foldable Adult Tricycle, showcasing sein Gesamtdesign und seine Funktionen.
Einrichtung und Montage
Your VIRIBUS tricycle comes partially pre-assembled. Follow these steps carefully for complete assembly. It is recommended to have a second person assist during certain steps.
Montage-Videoanleitung:
Video: Detailed assembly instructions for the Viribus folding tricycle. This video guides you through each step of putting together your new tricycle.
Step-by-Step Assembly (Refer to video for visual guidance):
- Komponenten auspacken: Carefully remove all parts from the packaging. Verify all components listed in the "What's in the Box" section are present.
- Rear Axle and Wheels Assembly:
- Attach the derailleur to the rear axle assembly.
- Install the rear wheels onto the axle, ensuring all washers and nuts are correctly positioned and tightened.
Image: Rear section of the tricycle, illustrating the folding hinge and wheel attachment points.
- Chain and Chain Guard Installation:
- Connect the chain to the front sprocket and rear cassette.
- Secure the chain guard over the chain.
- Lenkermontage:
- Insert the handlebar stem into the fork tube and tighten securely.
- Adjust the handlebar angle for comfortable riding.
- Brake Cable Connection:
- Connect the brake cables to the brake levers and calipers.
- Adjust brake tension to ensure proper function.
- Kotflügelmontage:
- Attach the front and rear fenders over the wheels.
- Montage von Sattelstütze und Sattel:
- Insert the seat post into the frame and attach the saddle.
- Adjust seat height for optimal comfort and pedaling efficiency.

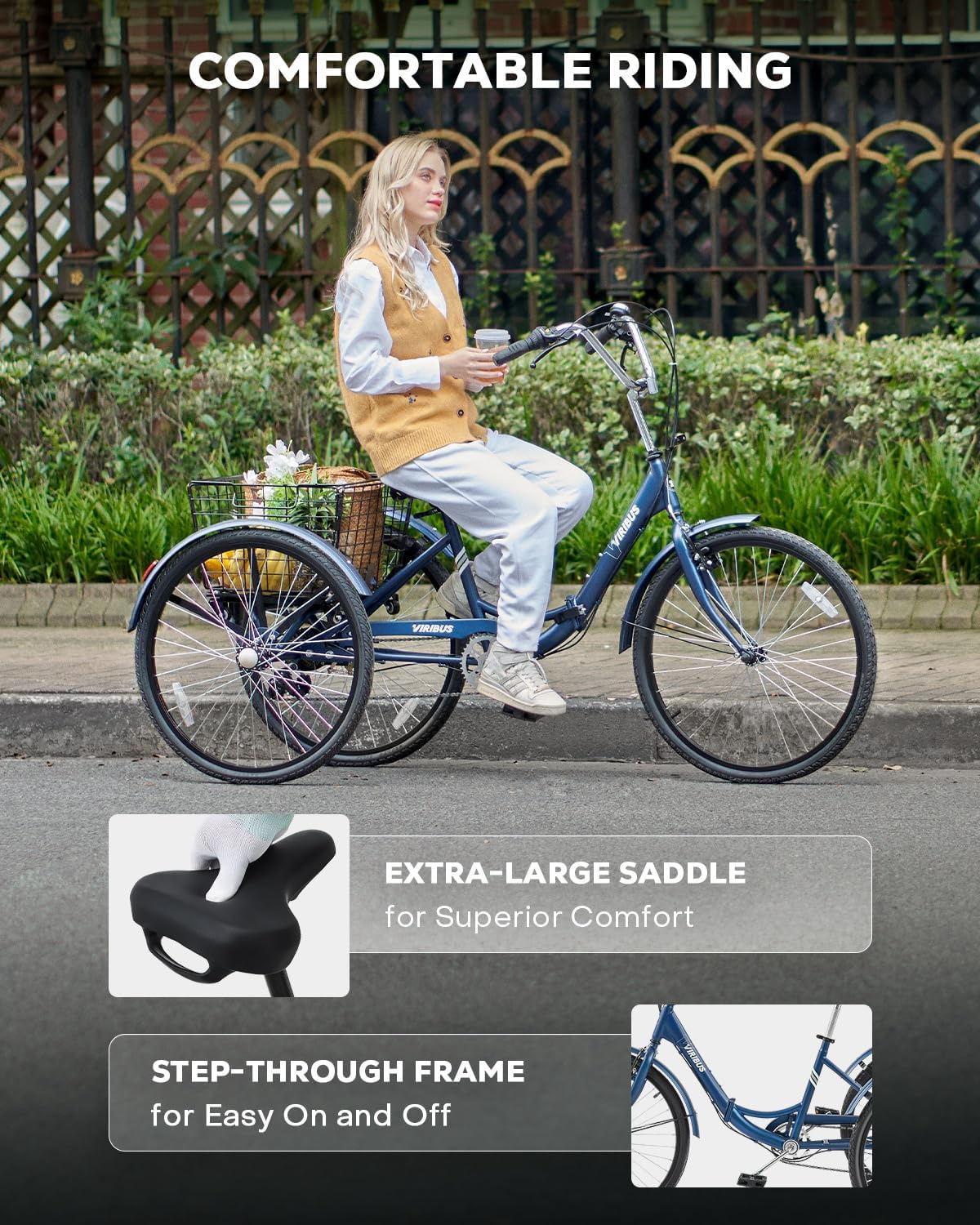

Image: The comfortable extra-large saddle and the accessible step-through frame design.
- Pedalinstallation:
- Befestigen Sie die Pedale an den Kurbelarmen. Beachten Sie, dass die Pedale üblicherweise mit „L“ für links und „R“ für rechts gekennzeichnet sind.
- Rear Basket Assembly and Attachment:
- Assemble the wire basket components.
- Attach the assembled basket to the rear rack of the tricycle.
Image: The spacious and removable rear basket, ready for use.
- Letzte Kontrollen: Ensure all bolts and nuts are tightened, brakes are functioning correctly, and tires are inflated to the recommended pressure.
Bedienungsanleitung
Riding Your Tricycle:
- Beginn: Mount the tricycle using the low step-through frame. Place both feet on the pedals and push off gently.
- Lenkung: Tricycles offer inherent stability. Steer by gently turning the handlebars in the desired direction.
- Bremsen: Your tricycle is equipped with linear pull brakes. Squeeze both brake levers simultaneously and evenly to slow down and stop. Practice braking at low speeds to get accustomed to the feel.
- Gangschaltung: The 7-speed Shimano derailleur allows you to adjust resistance. Use the thumb shifters on the handlebar to change gears. Shift to lower gears for uphill climbs and higher gears for flat or downhill riding. Shift gears smoothly to avoid strain on the chain.
Image: The 7-speed Shimano Revoshift gear shifter, indicating how to change gears for different terrains.
Folding the Tricycle:
The tricycle features a convenient folding design for storage. Consult the assembly video for detailed visual instructions on the folding mechanism. Typically, this involves releasing a latch on the frame and folding the rear section towards the front.
Wartung
Regular maintenance ensures the longevity and safe operation of your VIRIBUS tricycle.
- Reifendruck: Check tire pressure before each ride. Maintain recommended PSI as indicated on the tire sidewall.
- Bremsen: Regularly inspect brake pads for wear and replace if necessary. Ensure brake cables are free from fraying and properly tensioned.
- Kette: Keep the chain clean and lubricated. Apply bicycle-specific chain lubricant every few rides, especially after riding in wet conditions.
- Bolts and Nuts: Periodically check all bolts and nuts for tightness, especially on the wheels, handlebars, seat post, and folding mechanism.
- Reinigung: Clean your tricycle with mild soap and water. Avoid high-pressure washing, which can damage bearings and other components.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Die Bremsen fühlen sich schwammig oder wirkungslos an. | Lose Bremszüge, abgenutzte Bremsbeläge, falsch ausgerichtete Bremssättel. | Bremsseilspannung einstellen. Abgenutzte Bremsbeläge ersetzen. Bremssättel neu ausrichten. |
| Schwierigkeiten beim Gangwechsel. | Derailleur cable tension incorrect, dirty chain, bent derailleur hanger. | Adjust derailleur cable tension. Clean and lubricate chain. Inspect derailleur for damage. |
| Das Dreirad fühlt sich instabil oder wackelig an. | Loose wheel nuts, uneven tire pressure, loose frame bolts. | Check and tighten all wheel nuts and frame bolts. Ensure tire pressures are equal and correct. |
| Pedals are stiff or noisy. | Lack of lubrication, worn bearings. | Lubricate pedal bearings. If noise persists, pedals may need replacement. |
Technische Daten
| Besonderheit | Detail |
|---|---|
| Modellnummer | ABF-R1AB-AC |
| Fahrradtyp | Folding Bike (Tricycle) |
| Altersspanne | Erwachsene |
| Anzahl der Geschwindigkeiten | 7 |
| Radgröße | 26 Zoll |
| Rahmenmaterial | Kohlenstoffstahl |
| Federungstyp | Starr |
| Bremsenausführung | Linearzug |
| Rear Basket Capacity | Bis zu 66 Pfund |
| Maximales Benutzergewicht | 330 Pfund |
| Mindestbenutzergröße | 149 Zentimeter |
| Montage erforderlich | Ja |
Image: Dimensional diagram and key specifications of the tricycle, including recommended height, net weight, and maximum capacity.
Garantie und Support
Your VIRIBUS tricycle comes with a Limited Warranty. For specific details regarding the warranty coverage, please refer to the warranty card included with your product or contact customer support.
Kundendienst:
If you encounter any issues during assembly or operation, or have questions about your tricycle, please contact VIRIBUS customer service. We are a US-based company and aim to respond within one business day.
- Kontaktaufnahme mit dem Verkäufer: For assistance, please reach out to the seller directly through the platform where you purchased the product.
- Widerrufsfolgen: Vor dem Kaufasing, confirm if the size and weight are suitable. If there are quality issues, returns are accepted within 30 days.
