Einführung
This manual provides essential information for the safe and effective use of your Roland PSB7-120 12V Power Supply. The PSB7-120 is designed as a replacement power supply for various Roland keyboards and recorders, ensuring reliable operation of your compatible musical instruments and audio equipment. Please read this manual thoroughly before use and retain it for future reference.
Sicherheitshinweise
To prevent electric shock, fire, or other hazards, always observe the following safety precautions:
- Nur mit dem angegebenen Volumen verwendentage and current ratings. Connecting to an incompatible power source may damage the unit or connected device.
- Do not expose the power supply to rain, moisture, or extreme temperatures.
- Das Netzteil darf nicht zerlegt oder verändert werden. Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal durchgeführt werden.
- Ensure the power cord is not pinched, walked on, or otherwise damaged.
- Unplug the power supply from the wall outlet when not in use for extended periods or during electrical storms.
- Außerhalb der Reichweite von Kindern aufbewahren.
Aufstellen
Follow these steps to properly set up your Roland PSB7-120 power supply:
- Kompatibilität überprüfen: Confirm that your Roland device (keyboard, recorder, etc.) requires a 12V power supply and is compatible with the PSB7-120. This power supply is a replacement for PSB-120, ACB-120, ACF-120, ACK-120, and ACI-120 models, and is compatible with devices such as C-30, FP80, RP700 series digital pianos, BK5, BR, CD-2, FP-7, FP-30, FP-50, FR-3X, Prelude, RP-201, and RP-301.
- Mit Gerät verbinden: Insert the barrel connector of the PSB7-120 firmly into the DC IN jack of your Roland device. Ensure a secure connection.
- An die Steckdose anschließen: Plug the AC power cord of the PSB7-120 into a standard, grounded electrical outlet.
- Einschalten: Once connected, you can power on your Roland device according to its specific instructions.

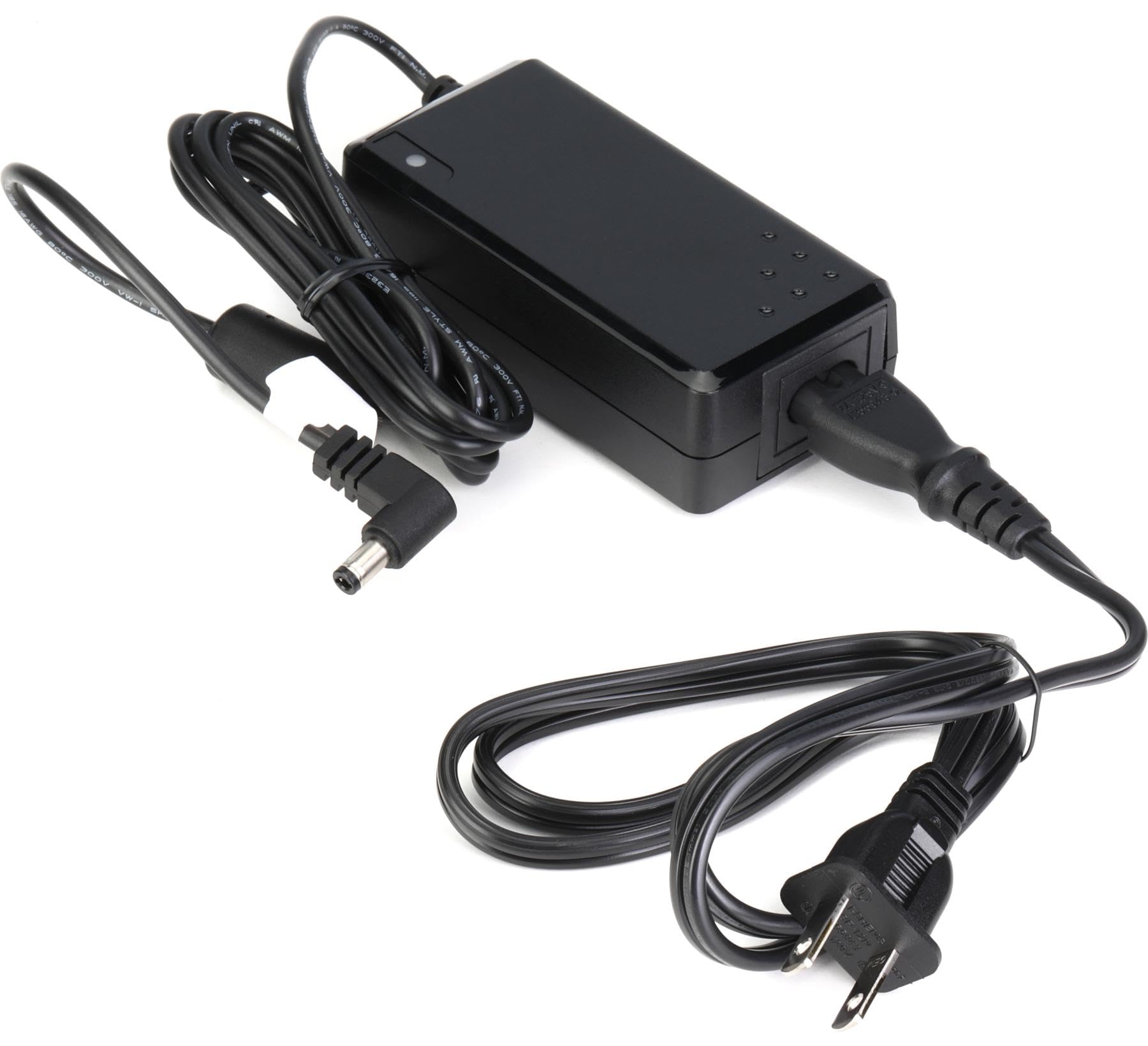

Image showing the Roland PSB7-120 12V Power Supply, a black rectangular unit with a power cord and a barrel connector. This illustrates the general appearance of the power supply.
Betrieb
The Roland PSB7-120 power supply operates automatically once connected to a compatible device and a power outlet. It provides the necessary 12V DC power to your Roland equipment.
- To power on your device, ensure the PSB7-120 is properly connected and then use the power switch on your Roland instrument or recorder.
- To power off, turn off your Roland device first, then you may unplug the power supply from the wall outlet if not in use for an extended period.
Wartung
Proper care will ensure the longevity of your power supply:
- Reinigung: Wischen Sie das Gerät mit einem weichen, trockenen Tuch ab. Verwenden Sie keine Scheuermittel, Wachse oder Lösungsmittel.
- Lagerung: Lagern Sie das Netzteil an einem kühlen, trockenen Ort, geschützt vor direkter Sonneneinstrahlung und extremen Temperaturen.
- Kabelpflege: Avoid sharp bends or kinks in the power cord. Do not place heavy objects on the cord.
Fehlerbehebung
Sollten Probleme auftreten, beachten Sie bitte die folgenden gängigen Schritte zur Fehlerbehebung:
- Gerät wird nicht mit Strom versorgt:
- Ensure the power supply is securely plugged into both the wall outlet and your Roland device.
- Prüfen Sie die Funktionsfähigkeit der Wandsteckdose, indem Sie ein anderes Gerät anschließen.
- Verify that your Roland device's power switch is in the "ON" position.
- Confirm that the PSB7-120 is the correct power supply for your specific Roland device model.
- Intermittierende Leistung:
- Prüfen Sie alle Verbindungen auf festen Sitz.
- Inspect the power cord and barrel connector for any visible damage. If damaged, discontinue use and replace the power supply.
If problems persist after attempting these steps, contact Roland customer support or a qualified service technician.
Technische Daten
The following are the technical specifications for the Roland PSB7-120 12V Power Supply:
| Modellnummer | PSB7-120 |
| Ausgangsvolumentage | 12 V |
| Artikelgewicht | 11.8 Unzen |
| Technische Daten | 5.2 x 4.85 x 1.9 Zoll |
| Steckertyp | Fassverbinder |
| Materialtyp | Plastik |
| Farbe | Schwarz |
Garantie und Support
Roland products are manufactured to high-quality standards and typically come with a limited warranty. For specific warranty terms and conditions applicable to your region and product, please refer to the warranty card included with your purchase or visit the official Roland webWebsite.
For technical support, service, or inquiries regarding your Roland PSB7-120 power supply, please contact Roland customer support through their official website or the contact information provided in your product documentation. When contacting support, please have your product model number (PSB7-120) and purchase details ready.
Note: This manual provides general information. Specific operational details for your Roland device should be found in its respective user manual.
