PURPLE LEAF Louvered Pergola 94AS Instruction Manual

1. Einleitung

This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF Louvered Pergola 94AS. This 12' x 20' outdoor aluminum pergola features an adjustable louvered roof and a fixed shutter wall, designed to enhance your outdoor living space. Please read this manual thoroughly before installation and use to ensure proper function and safety.

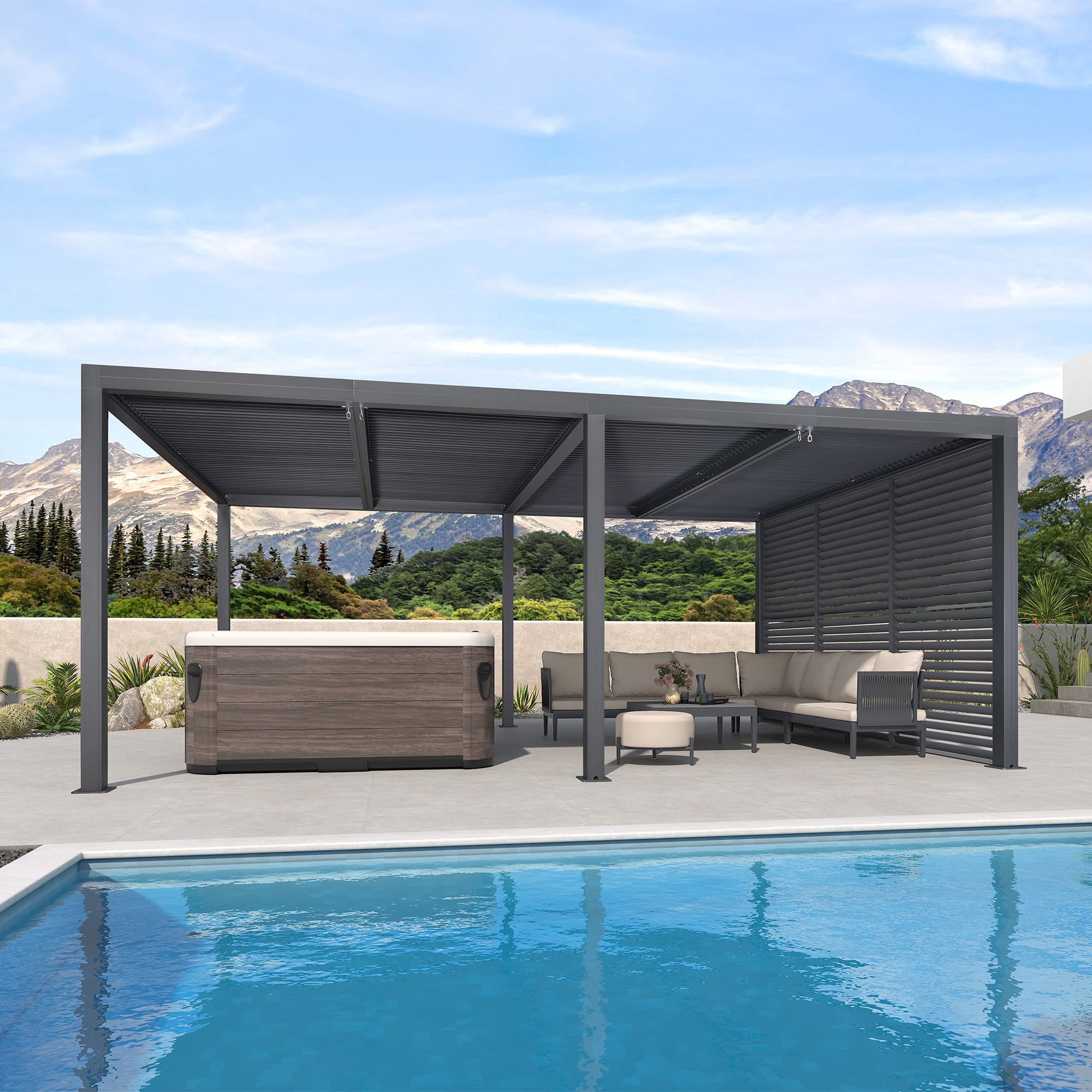

Figure 1.1: The PURPLE LEAF Louvered Pergola 94AS 12' x 20' provides a versatile outdoor living area.

2. Sicherheitshinweise

Adherence to the following safety guidelines is crucial for preventing injury and damage to the pergola:

• Always assemble and secure the pergola to a stable and level foundation. Use expansion screws on hardened floors for maximum stability.
• Do not adjust the louvered roof in windy conditions to prevent damage to the mechanism or structure.
• Keep children and pets away from the pergola during assembly, disassembly, and adjustment procedures.
• Do not use the pergola in winds exceeding 72 mph. Ensure the louvered roof is fully closed and secured during high winds.

3. Produktmerkmale

The PURPLE LEAF Louvered Pergola 94AS is engineered with several key features for optimal outdoor comfort and durability:

• Aluminum Adjustable Louvered Roof: Features two independent adjustable roofs, controlled by adjustable poles, allowing for effortless adjustment from 0° to 90°. This provides flexible protection against sun, rain, and wind.
• Integriertes Entwässerungssystem: Rainwater is efficiently diverted off the frame's edges to the four columns through a built-in system, then discharged to the ground via notches at the bottom, preventing pooling.
• Premium Material & Construction: Constructed from a powder-coated aluminum frame, resistant to scratching, peeling, corrosion, and rusting. The structure is designed to withstand wind speeds up to 72 mph when properly secured.
• Shutter Wall: Includes shutters designed to provide privacy and block direct sunlight, making it suitable for various outdoor settings.
• Flexibilität: Offers options to customize with groups of three, five, or more louvered grilles to enhance design and functionality.

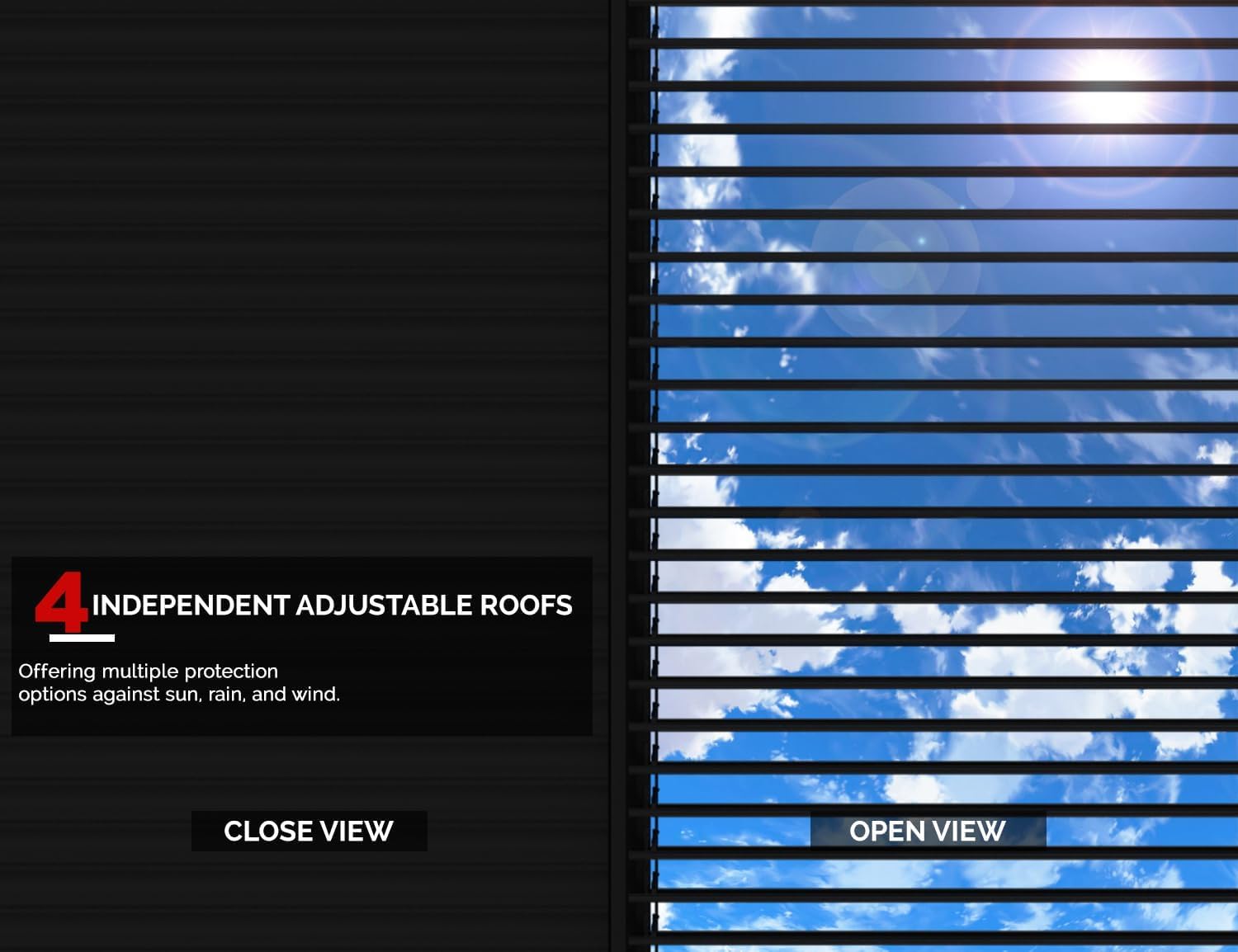

Figure 3.1: The independent adjustable louvered roofs offer versatile environmental control.

Figure 3.2: The integrated drainage system ensures efficient water runoff.

4. Aufbau und Montage

Assembly of the PURPLE LEAF Louvered Pergola requires careful attention to detail and a stable, level surface. It is recommended to have at least two to three people for assembly due to the size and weight of components.

4.1 Standortvorbereitung

Ensure the installation area is flat, level, and capable of supporting the pergola's weight. For optimal stability, especially in windy conditions, the pergola should be bolted to a concrete patio or wooden deck using appropriate anchors and expansion screws (not always included, check packaging).

4.2 Komponentenidentifikation

Unpack all components and verify against the parts list provided in your specific assembly guide. Each piece is protected by a plastic layer that should be carefully peeled off.

Figure 4.1: Refer to the dimension diagram for accurate measurements during site preparation.

4.3 Assembly Tools

While some basic tools may be included, it is highly suggested to have a good Philips screwdriver and 10mm hex tools for easier and more secure assembly.

4.4 Strukturelle Integrität

The pergola features thick 4.33" x 4.33" columns and multiple support beams for enhanced stability and durability. Ensure all connections are tightened securely during assembly.

Figure 4.2: Thick columns contribute to the pergola's stability.

Figure 4.3: Multiple support beams ensure a stable frame in various weather conditions.

5. Bedienungsanleitung

5.1 Adjusting the Louvered Roof

The pergola features two independent louvered roof sections. Use the provided adjustable poles to rotate the louvers from a fully open (0°) position, allowing maximum sunlight, to a fully closed (90°) position for complete shade and rain protection. Ensure smooth operation and avoid forcing the mechanism.

Figure 5.1: The well-designed louvers can be adjusted for desired shade and weather protection.

5.2 Utilizing the Shutter Wall

The fixed shutter wall provides additional privacy and blocks direct sunlight from one side. This feature is static and does not require adjustment.

5.3 Abdichtung

When the louvered roof is fully closed, the pergola is designed to be waterproof, directing rainwater through its integrated drainage system. Always ensure the louvers are completely closed during rain to keep the area underneath dry.

6. Wartung

Regular maintenance will prolong the life and appearance of your PURPLE LEAF Louvered Pergola.

• Reinigung: Clean the powder-coated aluminum frame and louvers periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Entwässerungssystem: Inspect the integrated drainage system regularly to ensure it is free from debris such as leaves or dirt, which could obstruct water flow.
• Befestigungsmaterial: Periodically check all bolts and screws to ensure they remain tight, especially after strong winds or heavy use.

Figure 6.1: The powder-coated aluminum construction requires simple cleaning for upkeep.

7. Fehlerbehebung

If you encounter any issues with your pergola, refer to the following common solutions:

• Wasserleck: Ensure the louvered roof is fully closed and properly aligned. Check the drainage channels for any blockages.
• Difficulty Adjusting Louvers: Inspect the adjustable poles and louver mechanisms for any obstructions or damage. Apply a silicone-based lubricant if movement is stiff.
• Strukturelle Instabilität: Verify that all connection points are securely fastened and that the pergola base is firmly anchored to a stable surface.

For issues not covered here, or if problems persist, please contact PURPLE LEAF customer support.

8. Spezifikationen

9. Support und Garantie

For any questions, missing parts, or assistance with assembly and operation, please contact PURPLE LEAF customer service. Many users have reported positive experiences with their prompt and thorough responses.

This product typically comes with a 30-day return/replacement policy. Please refer to your purchase documentation for specific warranty details and terms.
