1. Produktüberschreitungview
The JACK A2B Digital Industrial Sewing Machine is engineered for high-performance and reliability in professional and manufacturing environments. This machine integrates advanced digital technology with robust construction, making it suitable for a wide range of heavy-duty sewing applications.
Zu den Hauptmerkmalen gehören:
- Langlebige Konstruktion: Built with a cast aluminum frame and stainless steel base for long-term use.
- Hochgeschwindigkeitsbetrieb: Capable of up to 5500 stitches per minute, with adjustable stitch length up to 6mm.
- Advanced Digital Features: Includes automatic needle threading, an integrated stitch regulator, and needle up/down functionality for precise control.
- Vielseitige Anwendungen: Ideal for apparel manufacturing, quilting, home decor, and heavy fabric sewing.
- Verbesserte Sichtbarkeit: Equipped with a bright LED light to illuminate the work area.

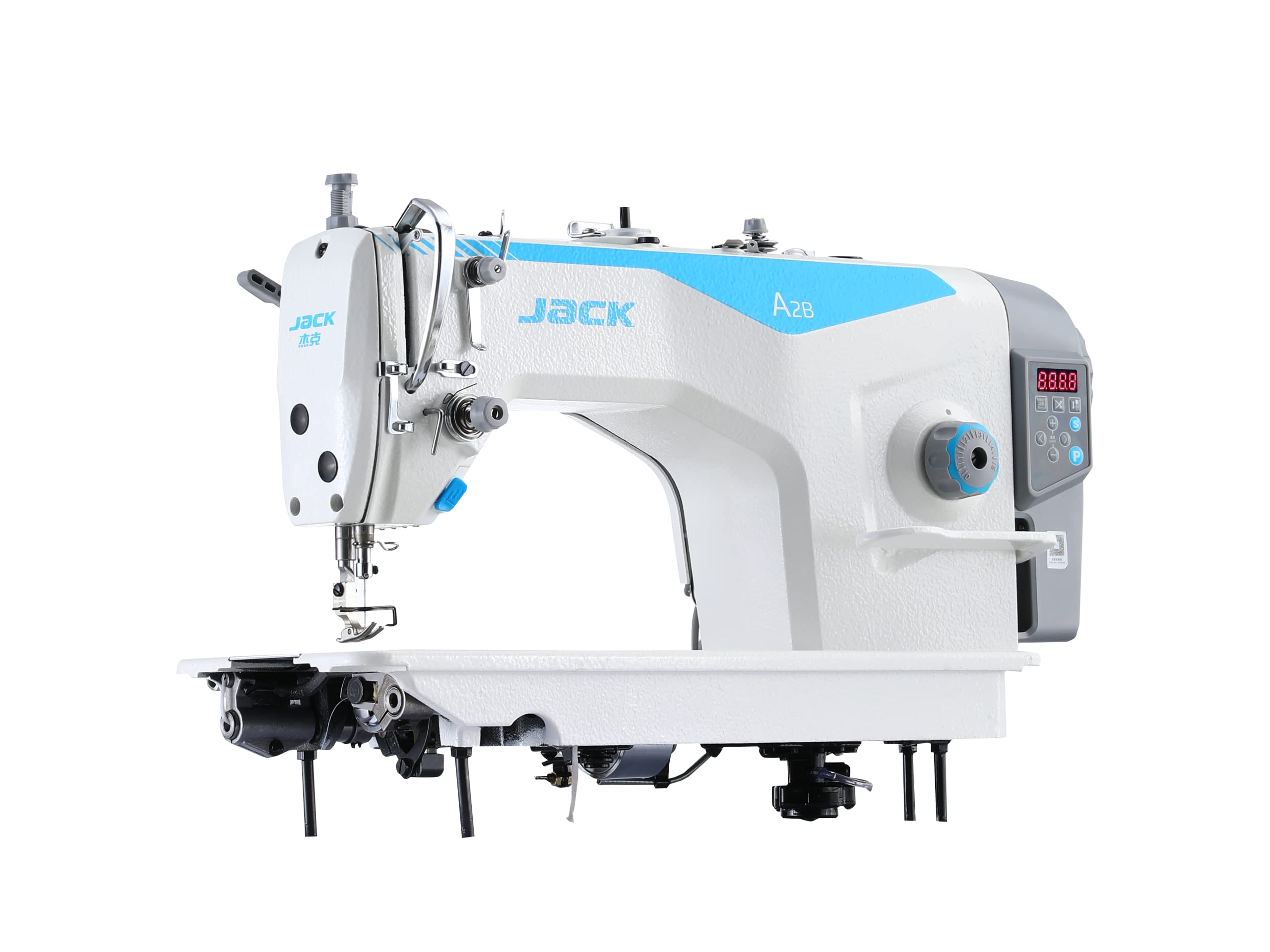

Figure 1: The JACK A2B Digital Industrial Sewing Machine.
2. Sicherheitshinweise
Read all instructions before operating the machine. Failure to follow safety guidelines may result in injury or damage to the machine.
- Vor der Reinigung, Wartung oder wenn das Gerät nicht benutzt wird, muss es immer vom Stromnetz getrennt werden.
- Keep fingers and hands away from the needle, presser foot, and other moving parts during operation.
- Das Gerät darf nicht mit beschädigten Kabeln oder wenn es heruntergefallen oder beschädigt wurde, betrieben werden.
- Stellen Sie sicher, dass die Maschine auf einer stabilen, ebenen Fläche steht.
- Verwenden Sie nur empfohlenes Zubehör und Aufsätze.
- Halten Sie Kinder und Haustiere während des Betriebs von der Maschine fern.
3. Installationsanleitung
3.1 Auspacken und Aufstellen
Carefully remove all packaging materials. Place the sewing machine on a sturdy, level table or stand. Ensure adequate space around the machine for comfortable operation and material handling.
3.2 Stromanschluss
Connect the power cord to a grounded electrical outlet. The machine operates on a corded electric power source. Verify that the voltage passt zu Ihrer örtlichen Stromversorgung.
3.3 Erste Kontrollen
- Check that the needle is correctly installed and not bent.
- Ensure the bobbin is properly wound and inserted.
- Verify that all covers and guards are securely in place.
4. Bedienungsanleitung
4.1 Bedienfeld vorbeiview
The digital control panel provides access to various machine functions and settings. Refer to the image below for button identification.
Abbildung 2: Digitales Bedienfeld.
- Digitaler Bildschirm: Shows current stitch length, speed, and error codes.
- Geschwindigkeitsanpassung: Use '+' and '-' buttons to increase or decrease sewing speed.
- Stichlängeneinstellung: Use dedicated buttons to set stitch length up to 6mm.
- Needle Up/Down: Controls the final resting position of the needle.
- Automatischer Fadenabschneider: Activates the automatic thread cutting function.
4.2 Einfädeln der Maschine
Follow these steps to thread the upper thread:
- Setzen Sie die Garnrolle auf den Garnrollenstift.
- Guide the thread through the thread guides as indicated in the machine's physical markings.
- Führe den Faden durch die Spannscheiben.
- Den Aufwickelhebel einfädeln.
- Verwenden Sie den automatischen Nadeleinfädler oder fädeln Sie die Nadel manuell von vorne nach hinten ein.
4.3 Aufwickeln der Spule
The machine features an integrated bobbin winder for convenience.
Figure 3: Bobbin Winder.
- Setzen Sie eine leere Spule auf die Spulenwickelspindel.
- Führen Sie den Faden von der Spule durch die Spulenwickel-Spannscheibe.
- Wickeln Sie den Faden einige Male um die Spule.
- Push the bobbin winder spindle towards the right to engage.
- Start the machine; the bobbin will wind automatically. Stop when full.
4.4 Verwenden des LED-Lichts
The integrated LED light illuminates the sewing area, improving visibility and reducing eye strain.
Figure 4: LED Work Light.
The LED light can typically be turned on or off via a dedicated button on the machine head or control panel, or it may activate automatically when the machine is in operation.
5. Wartung
Regelmäßige Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihrer Nähmaschine.
5.1 Reinigung
- Täglich: Remove lint and dust from the bobbin case, feed dogs, and needle plate area using a small brush.
- Wöchentlich: Clean the entire machine surface with a soft, dry cloth.
- Monatlich: For thorough cleaning, consult a qualified technician or refer to the detailed cleaning instructions in the full service manual.
5.2 Schmierung
Industrial sewing machines require regular lubrication. Refer to the machine's lubrication points diagram in the comprehensive manual. Use only high-quality sewing machine oil. Over-oiling can cause issues.
5.3 Nadelwechsel
Replace the needle regularly, especially if it becomes bent, dull, or if you experience skipped stitches. Use the correct needle type (DBx1 11-18#) for your fabric and thread.
Figure 5: Needle and Presser Foot Area.
6. Fehlerbehebung
In diesem Abschnitt werden häufig auftretende Probleme behandelt.
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Übersprungene Stiche | Incorrect needle, bent needle, improper threading, wrong tension. | Nadel austauschen, Maschine neu einfädeln, Fadenspannung einstellen. |
| Fadenbruch | High tension, poor quality thread, burrs on needle plate, incorrect threading. | Reduce tension, use quality thread, check for burrs, re-thread. |
| Ungleichmäßige Stiche | Incorrect tension, worn feed dogs, inconsistent fabric feeding. | Adjust tension, clean feed dogs, ensure consistent fabric handling. |
| Maschine startet nicht | No power, safety switch engaged, motor issue. | Check power connection, ensure safety switches are disengaged, consult technician. |
6.1 Fehlercodes
The digital display may show error codes to indicate specific issues.
Figure 6: E-04 High Voltage-Alarm.
- E-04 (High Voltage-Alarm): Indicates an issue with the power supply or internal voltage regulation. Disconnect power, wait a few minutes, and reconnect. If the error persists, contact support.
- For other error codes, refer to the comprehensive service manual or contact customer support.
7. Spezifikationen
Below are the general specifications for the JACK A2B Digital Industrial Sewing Machine.
| Besonderheit | Detail |
|---|---|
| Marke | JACK |
| Modell | A2B |
| Farbe | Weiß |
| Artikelgewicht | 65 Kilogramm |
| Material | Solid Alloy |
| Produktabmessungen (L x B x H) | 60 cm (T) x 60 cm (B) x 30 cm (H) |
| Stromquelle | Kabelgebundene Elektrik |
| Elektrischer Betrieb | Ja |
| Max. Stitch Speed | 5500 Stiche pro Minute |
| Maximale Stichlänge | 6 mm |
| Nadeltyp | DBx1 11-18# |
| Nähfußhub | 5-13 mm |
Abbildung 7: Detaillierte Modellspezifikationen.
8. Garantie und Support
8.1 Garantieinformationen
The JACK A2B Digital Industrial Sewing Machine comes with a 3 Jahr Garantie. This warranty covers manufacturing defects and ensures ongoing support and maintenance if required. Please retain your proof of purchase for warranty claims.
8.2 Kundendienst
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact your authorized JACK dealer or the manufacturer's customer support. Contact details can typically be found on the product packaging or the official JACK webWebsite.
