AUXITO H11 H8 H16 LED Fog Light Bulbs Instruction Manual

Produkt überview

The AUXITO H11 H8 H16 LED Fog Light Bulbs are designed to provide enhanced visibility and safety for your vehicle. Featuring advanced CSP LED chips, these bulbs offer 600% more brightness than standard halogen fog lights, emitting a 6500K cool white light. Their 1:1 mini size design ensures easy installation without modifications, and the non-polarity feature simplifies the connection process. Built-in smart IC system ensures compatibility with 99% of vehicles, preventing errors and radio interference. The robust multi-cooling design, including aviation-grade aluminum and multi-layer cooling fins, ensures efficient heat dissipation and a long lifespan of up to 50,000 hours. These bulbs are also IP68 waterproof and dustproof, ensuring reliable performance in various weather conditions.

Sicherheitshinweise

• Always disconnect the vehicle's battery before attempting any electrical installation to prevent electrical shock.
• Tragen Sie während der Installation geeignete Schutzausrüstung, einschließlich Handschuhen und Augenschutz.
• Ensure the vehicle's engine is off and cooled down before handling light bulbs.
• Berühren Sie die LED-Chips nicht direkt, da Hautfette deren Lebensdauer verkürzen können.
• Verify local regulations regarding vehicle lighting modifications before installation.
• If unsure about any step, consult a professional mechanic.

Packungsinhalt

Das Paket enthält folgende Artikel:

• 2 x AUXITO H11 H8 H16 LED Fog Light Bulbs
• Bedienungsanleitung (dieses Dokument)

Note: Specific contents may vary slightly. Please check your package upon receipt.

Setup und Installation

The AUXITO H11 H8 H16 LED Fog Light Bulbs are designed for a plug-and-play installation. No modification is typically required.

Schritt-für-Schritt-Installationsanleitung:

1. Locate the Fog Light Housing: Identify the fog light assembly on your vehicle. Access may vary depending on the vehicle model (e.g., from under the bumper, wheel well, or engine bay).


   Image: An old halogen fog light bulb installed in a vehicle's front bumper. This shows the typical location of the fog light.

2. Disconnect the Old Bulb: Carefully twist or unclip the old halogen bulb from its socket. Disconnect the electrical connector by pressing the release tab and pulling it apart.


   Image: A side-by-side comparison of the new AUXITO LED fog light bulb and an old halogen bulb, highlighting their structural differences and similar base sizes.

3. Install the AUXITO LED Bulb: Insert the new AUXITO LED fog light bulb into the housing. Ensure it is seated correctly and twist or clip it into place until secure. The 1:1 mini size design facilitates this process.


   Image: An illustration showing the correct method of installing the LED bulb into the housing, emphasizing proper alignment and secure fit.
4. Connect the Electrical Connector: Reconnect the vehicle's electrical connector to the AUXITO LED bulb. The non-polarity design means the bulb can be plugged in either way.
5. Testen Sie die Lichter: Turn on your vehicle's fog lights to ensure they are functioning correctly. Verify both bulbs illuminate and provide the desired light output.


   Image: A vehicle with the new AUXITO LED fog light bulb installed and illuminated, showing the bright, cool white light.

6. Sichere Komponenten: Ensure all components are securely fastened and any removed panels or covers are reinstalled.

Bedienungsanleitung

Once installed, the AUXITO LED fog light bulbs operate like your vehicle's original fog lights. Activate them using your vehicle's standard fog light switch.

• Aktivierung: Turn on your vehicle's fog lights via the dashboard switch or stalk control.
• Helligkeit: These LED bulbs provide 600% increased brightness compared to standard halogen bulbs, offering superior illumination in foggy, rainy, or low-visibility conditions.
• Farbtemperatur: The bulbs emit a 6500K cool white light, which is designed to improve visibility and reduce eye strain.

Image: A vehicle driving in foggy conditions with AUXITO LED fog lights illuminated, demonstrating improved visibility.

Wartung

The AUXITO LED fog light bulbs are designed for long-lasting performance with minimal maintenance.

• Reinigung: Periodically clean the fog light lenses to ensure maximum light output. Use a soft cloth and a mild cleaning solution.
• Inspektion: Occasionally inspect the bulbs and wiring for any signs of damage or loose connections.
• Wärmeableitung: The multi-cooling design ensures efficient heat management. Avoid obstructing the heat sink fins to maintain optimal performance and lifespan.
• Lebensdauer: With a service life of up to 50,000 hours, frequent replacement is not required under normal operating conditions.

Bild: Eine explodierte view diagram illustrating the multi-cooling design of the AUXITO LED bulb, showing the copper baseboard, copper tube, aluminum body, and multilayer heat sink.

Fehlerbehebung

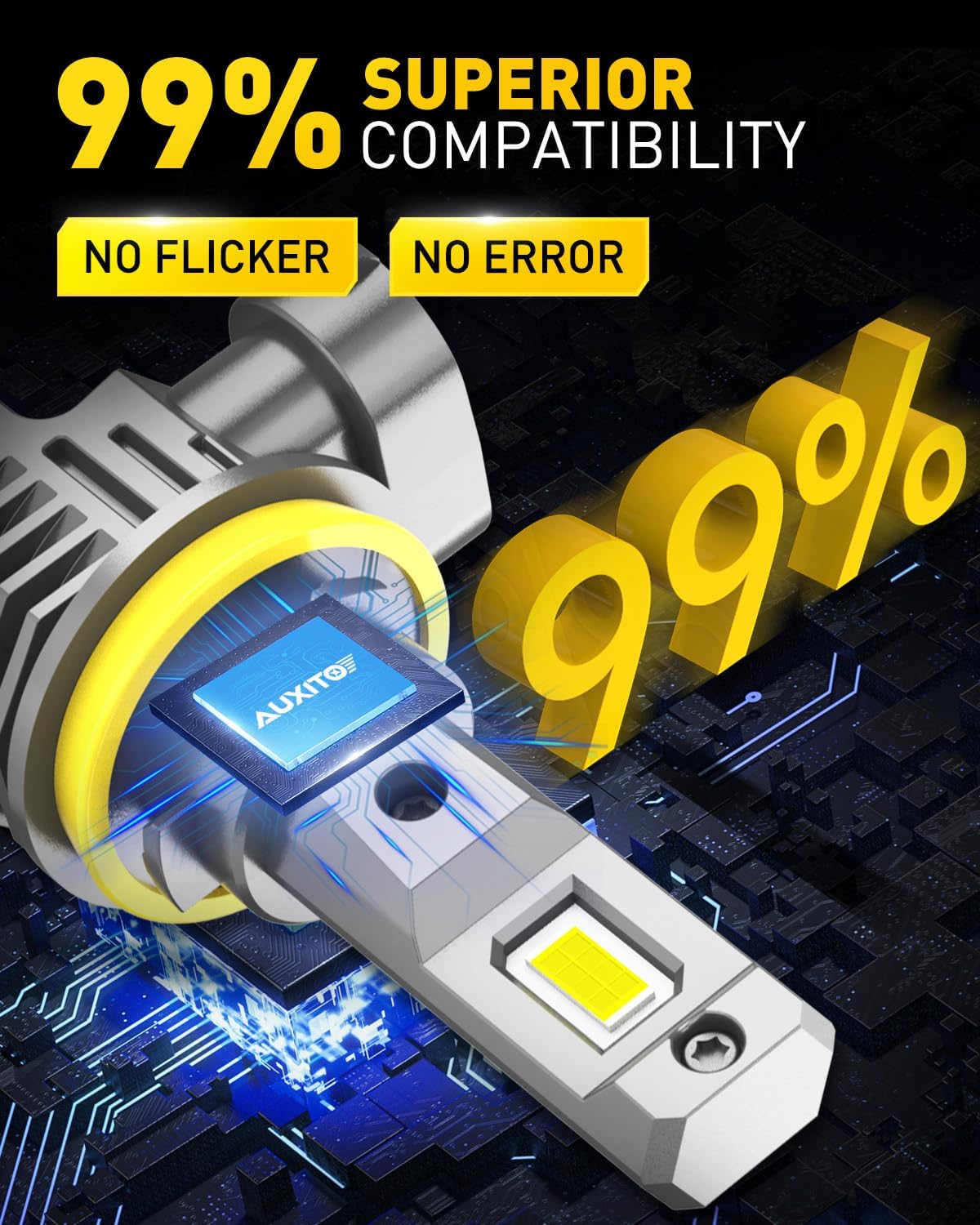

Image: A graphic illustrating the "Error Free & CANbus Ready" feature of the AUXITO LED bulbs, showing compatibility with vehicle systems and preventing dashboard warnings.

Technische Daten

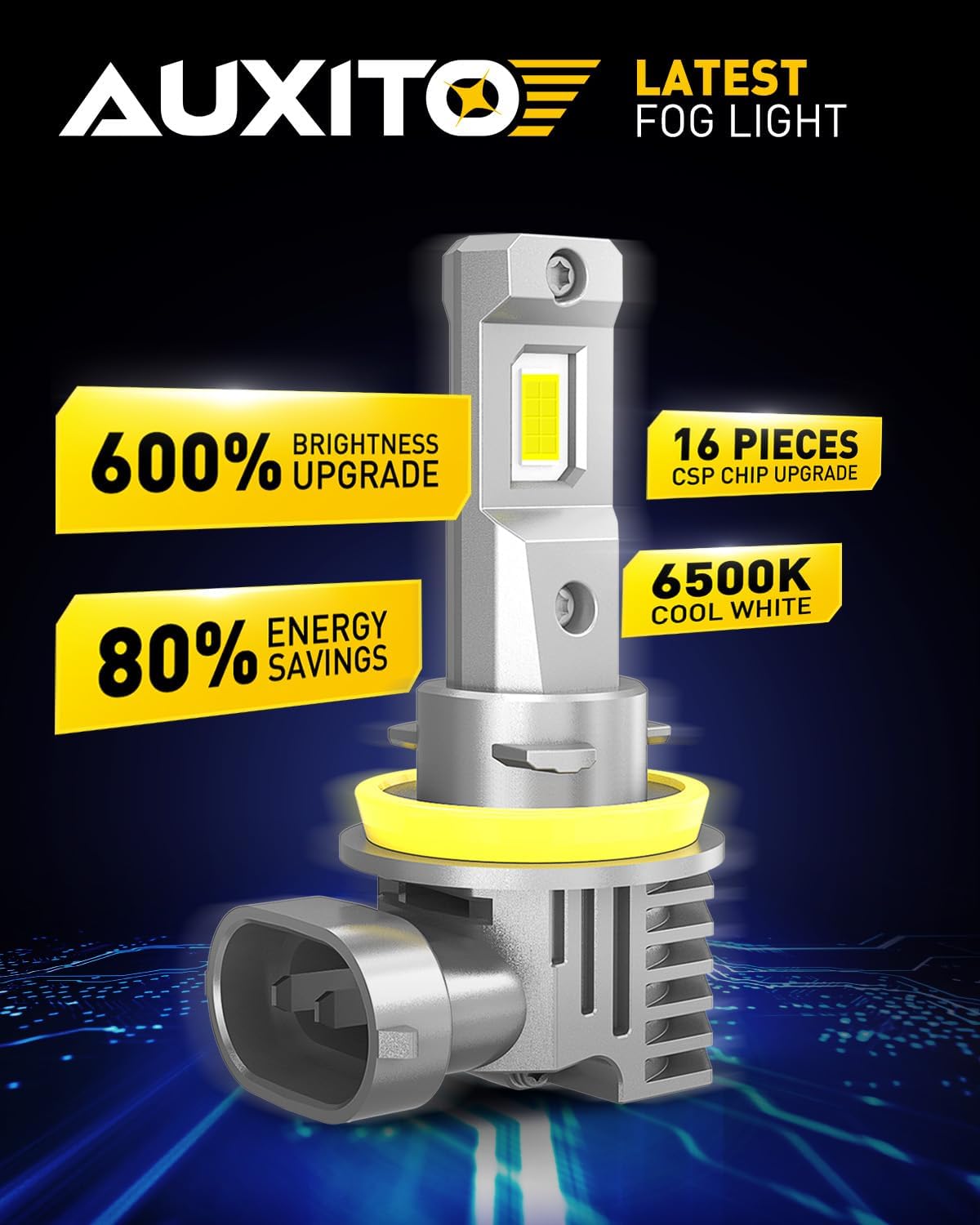

Bild: Eine detaillierte view of the AUXITO LED fog light bulb highlighting key features like 600% brightness upgrade, 16 CSP chip upgrade, 6500K cool white, and 80% energy savings.

Garantie und Support

AUXITO products are manufactured to high-quality standards. For warranty information, please refer to the specific warranty policy provided with your purchase or visit the official AUXITO website. If you encounter any issues or have questions regarding the installation or operation of your LED fog light bulbs, please contact AUXITO customer support.

Kontaktinformationen:

• Besuchen Sie die AUXITO Store on Amazon für Produktinformationen und Support.
• Beachten Sie die Kontaktdaten, die auf Ihrer Produktverpackung angegeben sind.
