1. Einleitung
This manual provides detailed instructions for the assembly, operation, and maintenance of your Tribesigns 2-Drawer Wood File Cabinet, Model ZYL-F1893-F1810-FC. This mobile lateral filing cabinet is designed for home office use, featuring two drawers for letter-sized files, open storage shelves, and a durable engineered wood construction. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product.
2. Wichtige Sicherheitshinweise
- Gewichtskapazität: Die maximale Gewichtskapazität darf nicht überschritten werden. 60 Pfund on the top shelf. Overloading can cause instability and damage.
- Bewegen des Schranks: Always use both hands when moving the cabinet to prevent tipping and potential injuries. Ensure drawers are closed and secured before moving.
- Montage: Follow all assembly instructions carefully. Ensure all parts are correctly installed and tightened before use.
- Kinder: Halten Sie Kleinteile während der Montage von Kindern fern. Erlauben Sie Kindern nicht, auf den Schrank zu klettern oder damit zu spielen.
- Stabilität: Place the cabinet on a flat, stable surface. If using the optional wheels, ensure they are locked when the cabinet is stationary to prevent accidental movement.
3. Packungsinhalt
Prüfen Sie vor Beginn der Montage, ob alle unten aufgeführten Komponenten vorhanden und unbeschädigt sind. Sollten Teile fehlen oder beschädigt sein, wenden Sie sich bitte an den Kundendienst.
- All necessary wooden panels for the cabinet structure, drawers, and shelves.
- Hardware kit (screws, cam locks, dowels, drawer slides, handles).
- Set of four (4) rolling wheels (optional installation).
- Montagewerkzeuge (z. B. Inbusschlüssel, Schraubendreher).
- Bedienungsanleitung.

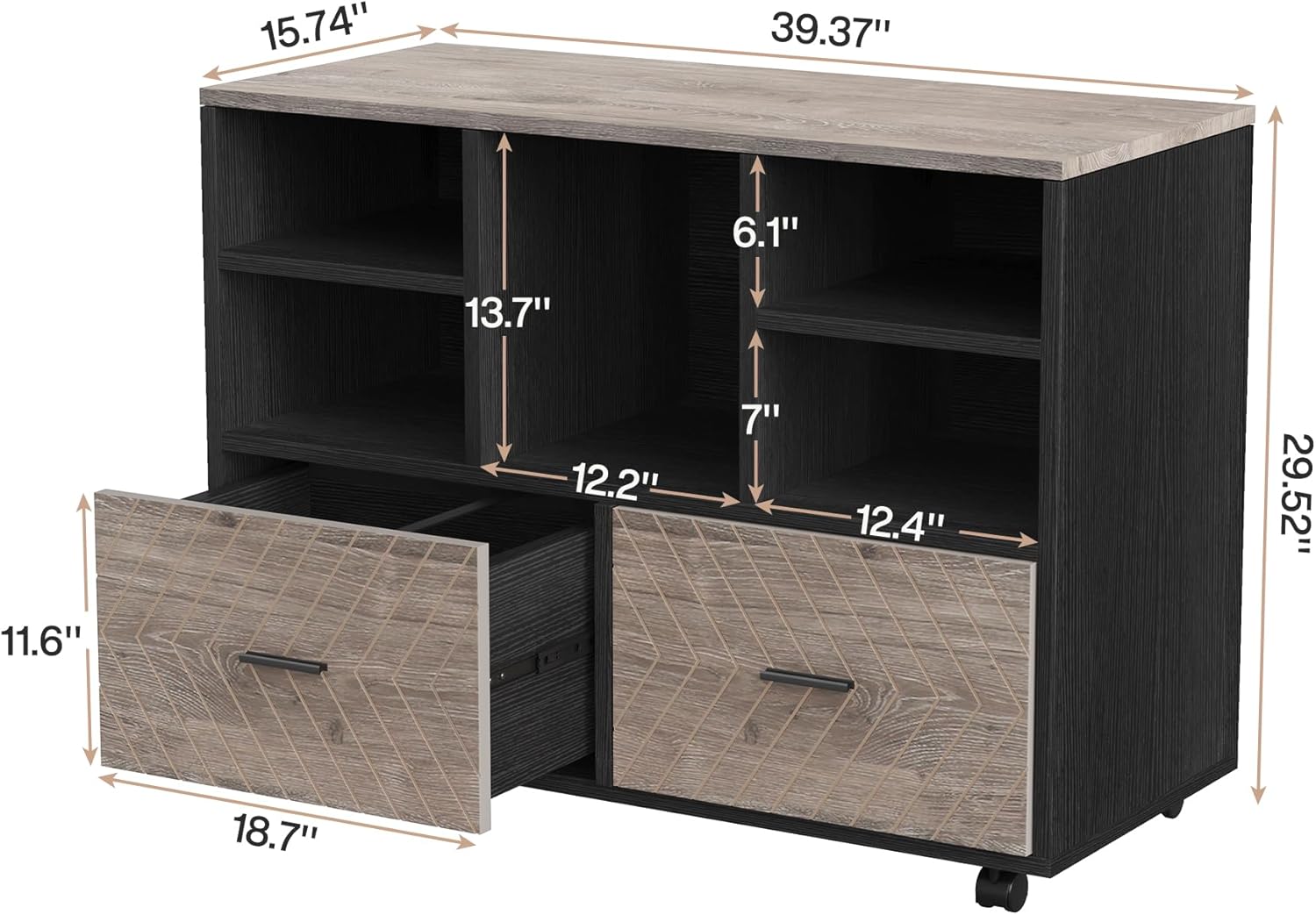

Abbildung 1: Überview of the Tribesigns 2-Drawer Wood File Cabinet with key dimensions highlighted. The cabinet measures 15.74 inches deep, 39.37 inches wide, and 29.52 inches high. Drawer dimensions are 11.6 inches high and 18.7 inches wide. Open shelf sections are 13.7 inches high and 12.2 inches wide, with a smaller upper shelf at 6.1 inches high and 12.4 inches wide.
4. Aufbau- und Montageanleitung
Für dieses Produkt ist eine Montage erforderlich. file cabinet. All parts are labeled, and the package includes all necessary tools and instructions. It is recommended to assemble the cabinet with two people for ease and safety.
- Komponenten auspacken: Carefully unpack all parts and lay them out on a clean, soft surface (e.g., a blanket or cardboard) to prevent scratches. Verify all parts against the included parts list.
- Rahmen zusammenbauen: Follow the step-by-step diagrams in the instruction manual to connect the main frame panels using the provided hardware (screws, dowels, cam locks). Ensure all connections are secure.
- Schubladenschienen montieren: Attach the drawer slides to the cabinet frame and the drawer boxes. Pay close attention to the orientation of the slides as indicated in the manual to ensure smooth operation.
- Schubladen zusammenbauen: Construct the two drawer boxes and attach the front panels with the decorative grey fishbone pattern. Install the silver handles onto the drawer fronts.
- Schubladeneinsätze: Carefully slide the assembled drawers into the cabinet frame, ensuring they glide smoothly on the installed slides.
- Regale installieren: Place the adjustable shelves into the desired positions within the open storage compartments. The shelves can be moved up or down using the pre-drilled holes and shelf pins.
- Räder anbringen (optional): If mobility is desired, attach the four rolling wheels to the base of the cabinet using the provided screws. Ensure they are securely fastened. If you prefer a stationary unit, omit this step.
- Endkontrolle: Once assembled, gently test the stability of the cabinet and the smooth operation of the drawers.

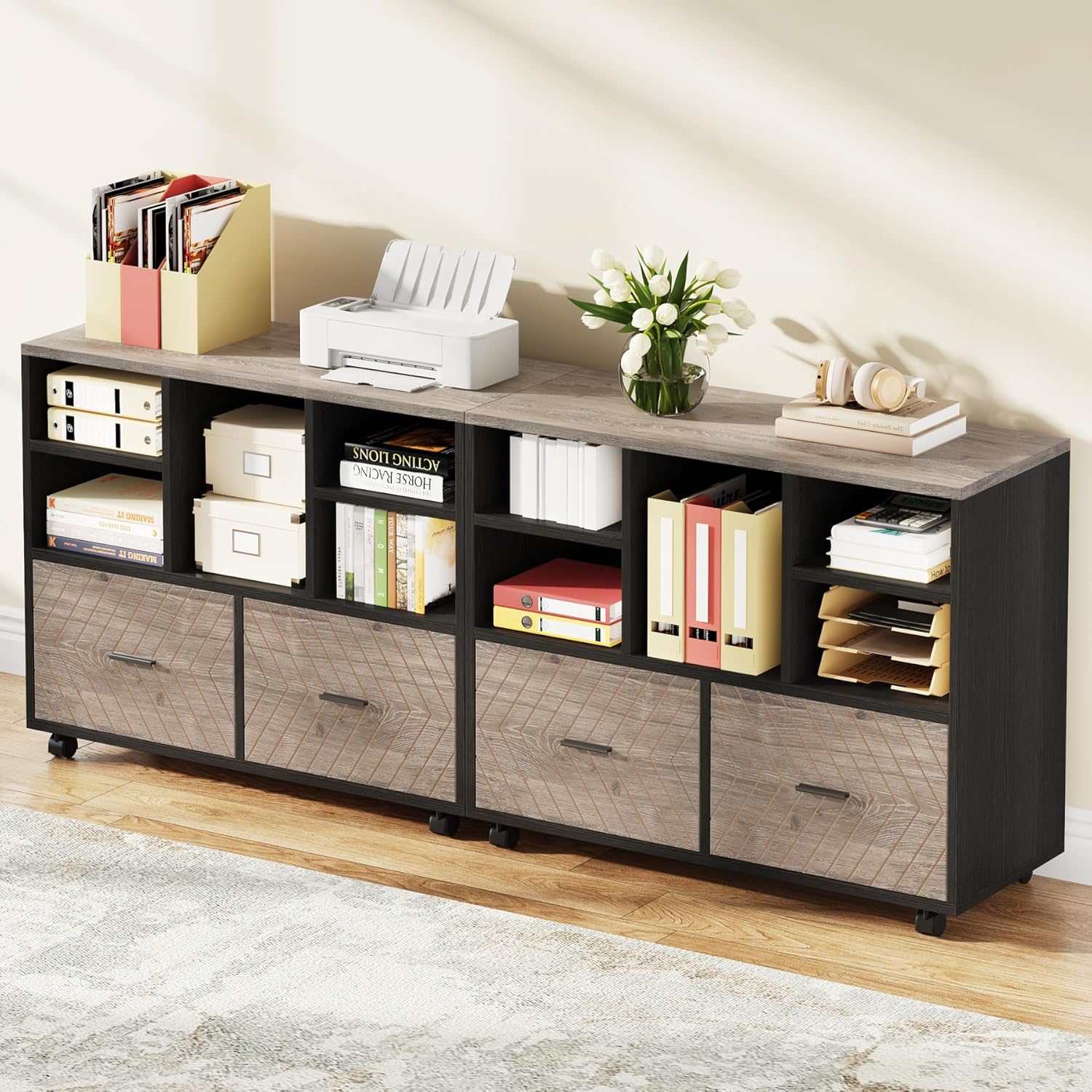

Abbildung 2: The Tribesigns 2-Drawer Wood File Cabinet positioned in a home office environment, showcasing its two drawers and open shelving. The top surface can function as a printer stand or display area.
5. Bedienungsanleitung
5.1. Benutzung der Schubladen
- The two bottom drawers are designed for hanging letter-sized files. File folder inserts (not included) can be added to organize your documents.
- To open a drawer, gently pull the silver handle. To close, push the drawer firmly until it is fully seated.
- Avoid forcing drawers open or closed, as this can damage the slides.
5.2. Regale einstellen
- The cabinet features five open shelves with adjustable heights.
- To adjust a shelf, remove any items from the shelf. Carefully lift the shelf and remove the four shelf pins from their current holes.
- Reinsert the shelf pins into the desired new set of holes on all three sides of the compartment. Ensure all four pins are securely in place before resting the shelf on them.
- Place the shelf back onto the pins, ensuring it is level and stable.
Video 1: A demonstration of the Tribesigns file cabinet's features, including the smooth-gliding drawers and the adjustable shelving system. The video highlights the ease of opening and closing drawers and the flexibility of shelf placement.
5.3. Mobility (with wheels)
- If the optional wheels are installed, the cabinet can be easily moved.
- To move the cabinet, ensure all drawers are closed. Gently push or pull the cabinet to its desired location.
- To secure the cabinet in place, engage the locks on the wheels. This prevents unintended movement.
Abbildung 3: Eine detaillierte view highlighting the key features of the Tribesigns file cabinet: five open storage compartments, two spacious drawers for filing, and four 360-degree rotating casters for mobility.
6. Wartung
- Reinigung: Wischen Sie die Schrankoberflächen mit einem weichen, fusselfreien Tuch ab.amp Mit einem Tuch abwischen. Vermeiden Sie die Verwendung von scharfen Chemikalien oder Scheuermitteln, da diese die Oberfläche beschädigen können.
- Abstauben: Den Schrank regelmäßig abstauben, um Ablagerungen zu vermeiden.
- Hardwareprüfung: Überprüfen Sie regelmäßig alle Schrauben und Befestigungselemente auf festen Sitz. Ziehen Sie sie gegebenenfalls nach, um die Stabilität zu gewährleisten.
- Schubladenführungen: If drawers become stiff, a small amount of silicone-based lubricant can be applied to the slides.
7. Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Die Schubladen lassen sich nicht leichtgängig öffnen und schließen. | Incorrect installation of drawer slides; debris in slides; loose screws. | Verify drawer slide orientation and installation as per manual. Clean slides of any debris. Tighten all screws on slides and drawer boxes. Apply silicone lubricant if needed. |
| Der Schrank wirkt instabil oder wackelig. | Loose fasteners; uneven floor; overloaded shelves/drawers. | Check and tighten all assembly screws and cam locks. Ensure the cabinet is on a level surface. Redistribute weight evenly and do not exceed weight limits. |
| Die Räder rollen oder arretieren nicht richtig. | Debris in wheel mechanism; damaged wheel; incorrect installation. | Clean wheels of any hair or debris. Ensure wheels are correctly installed and tightened. If a wheel is damaged, contact customer support for replacement. |
| Fehlende Teile beim Zusammenbau. | Verpackungsfehler. | Review the package contents list. Contact Tribesigns customer support with the specific part number(s) for assistance. |
8. Produktspezifikationen
- Marke: Stammeszeichen
- Modellname: ZYL-F1893-F1810-FC
- Farbe: Grau & Schwarz
- Produktabmessungen: 15.74"T x 39.37"B x 29.52"H
- Artikelgewicht: 79 Pfund
- Material: Holzwerkstoff
- Anzahl der Schubladen: 2 (for letter-sized files)
- Anzahl der offenen Regale: 5 (einstellbar)
- Besonderheit: Wheeled (optional)
- Montageart: Bodenhalterung
- Montage erforderlich: Ja
- Tragfähigkeit der oberen Ablage: 60 Pfund
9. Garantie und Kundendienst
For warranty information, missing parts, or any product-related inquiries, please contact Tribesigns customer support directly. Refer to the contact information provided with your purchase documentation or visit the official Tribesigns webWebsite für Unterstützung.
Hersteller: Stammeszeichen
