Produkt überview
The XK-2.0 Horsepower 806B Tire Changer Machine is designed for efficient and reliable tire mounting and demounting. It features a robust construction with a high-density aluminum casting piston for extended service life and precision steel cast clamping jaws for durability. The machine incorporates protective sleeves on the clamping jaws to safeguard tires and rims during operation. Its universal bead breaker and vertical inflation tool box enhance usability, while the iron stamping pedal provides durable control. The clamping range is adjustable to accommodate various tire sizes.
Figure 1: XK-806B Tire Changer Machine
Sicherheitshinweise
Always read and understand all instructions before operating the machine. Failure to follow safety guidelines may result in serious injury or equipment damage.
- Ensure the machine is properly grounded and connected to the correct power supply (110/220/380V, 0.75/1.1kW).
- Tragen Sie während der Arbeit geeignete persönliche Schutzausrüstung (PSA), einschließlich Schutzbrille und Handschuhen.
- Keep hands and clothing clear of moving parts, especially the turntable and clamping Kiefer.
- Do not exceed the maximum wheel diameter (1180mm) or tire width (3-14 inches) specified for this machine.
- Sorgen Sie für einen sauberen und gut beleuchteten Arbeitsbereich.
- Never attempt to service or repair the machine while it is powered on. Disconnect from power source before maintenance.
- Ensure proper air pressure (8-10 bar) for pneumatic components.
Komponenten überview
The XK-806B Tire Changer Machine consists of several key components designed for efficient tire service:
- Drehscheibe: Rotates the wheel during mounting and demounting.
- ClampJaws: Securely hold the wheel on the turntable. Equipped with protective sleeves.
- Mount/Demount Head: Positions and manipulates the tire bead.
- Bead Breaker: Separates the tire bead from the rim.
- Inflation Gun: Used for inflating tires after mounting.
- Fußpedale: Control various functions such as turntable rotation, clamping, and bead breaking.
- Air Filter/Lubricator Unit: Ensures clean and lubricated air supply to pneumatic components.

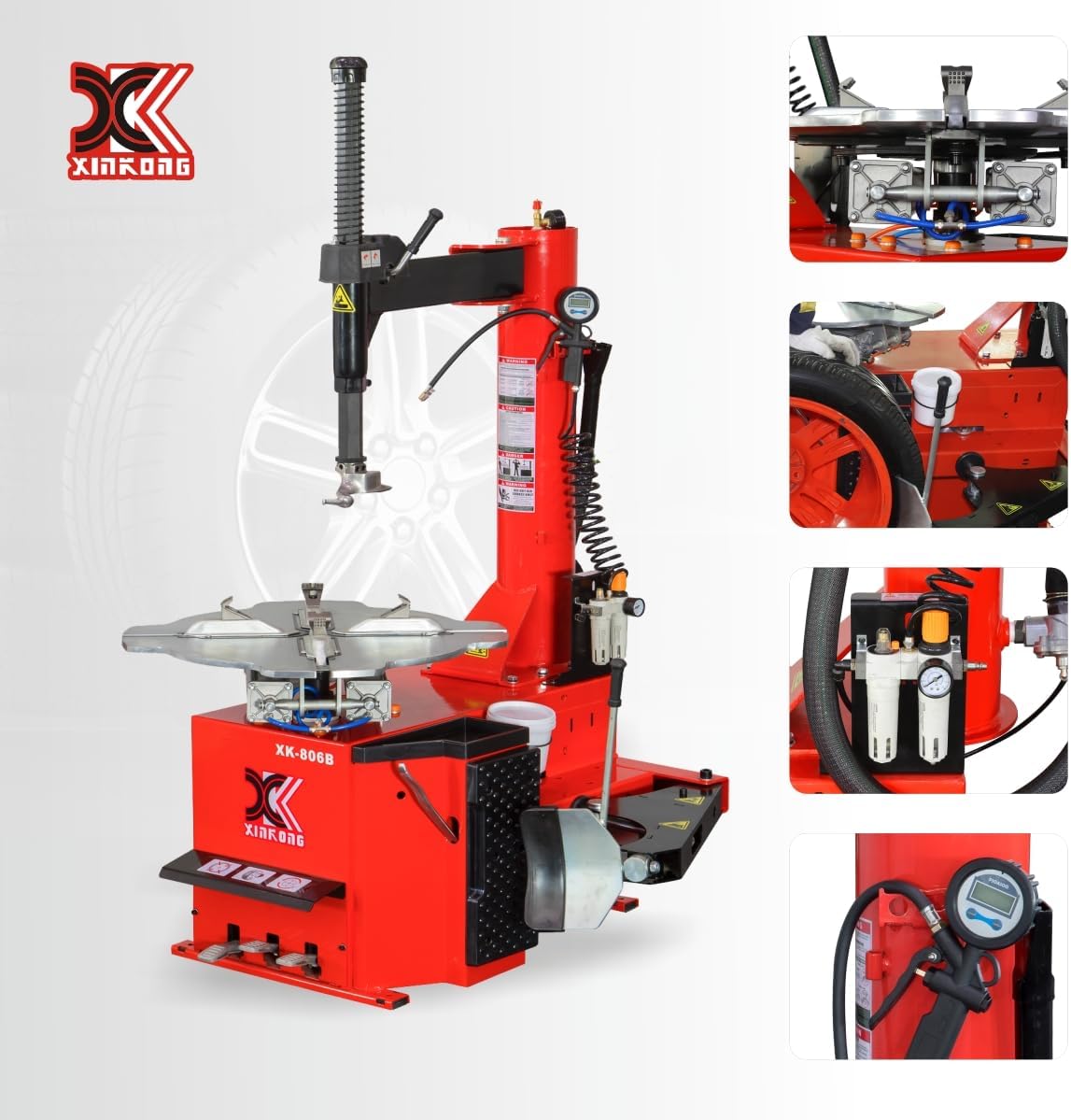

Abbildung 2: Ausführlich view der clamping jaw and mount/demount head.
Abbildung 3: Unterseite view der clamping-Mechanismus.
Figure 4: Air preparation unit, inflation gun, and lubricant container.
Aufstellen
Before operating the XK-806B Tire Changer, ensure proper installation and connection:
- Auspacken und Inspektion: Carefully unpack all components. Inspect for any shipping damage. Report any damage to the carrier immediately.
- Platzierung: Position the machine on a flat, stable, and level surface capable of supporting its weight (approximately 542 pounds). Ensure adequate clearance around the machine for safe operation.
- Stromanschluss: Connect the machine to a suitable electrical outlet. Verify that the voltage (110/220/380V) and power (0.75/1.1kW) match the machine's requirements and local electrical codes.
- Anschluss der Luftversorgung: Connect a compressed air line to the machine's air inlet. Ensure the air supply provides the recommended working pressure of 8-10 bar.
- Schmierung: Fill the lubricant container (if applicable) with appropriate tire mounting lubricant.
- Erste Kontrollen: Before first use, check all bolts and fasteners for tightness. Verify that all moving parts operate smoothly without obstruction.
Bedienungsanleitung
Follow these steps for safe and effective tire changing operations:
Video 1: Operational demonstration of the XK-806B Tire Changer Machine.
Figure 5: Visual guide for tire changing steps.
- Vorbereitung: Remove the valve core to fully deflate the tire. Remove any wheel weights.
- Bead Breaking (Step 1): Place the wheel on the bead breaker arm. Use the bead breaker pedal to separate the tire bead from the rim. Repeat for both sides of the tire.
- Mounting on Turntable (Step 2): Position the wheel onto the turntable. Use the clamping pedal to secure the wheel firmly with the clamping jaws. Adjust the slider position if necessary to change the clamping-Bereich.
- Lubrication (Step 3): Apply appropriate tire lubricant to both tire beads and the rim edges.
- Demounting Top Bead (Step 4): Position the mount/demount head correctly relative to the rim. Use a tire lever to lift the top bead over the mount/demount head. Activate the turntable rotation pedal to fully demount the top bead.
- Demounting Bottom Bead (Step 5): Reposition the tire. Use the tire lever to lift the bottom bead over the mount/demount head. Activate the turntable rotation pedal to fully demount the bottom bead.
- Mounting New Tire (Step 6): Place the bottom bead of the new tire onto the rim, ensuring it is below the mount/demount head. Activate the turntable rotation pedal to guide the bead onto the rim.
- Mounting Top Bead (Step 7): Push down on the top bead while activating the turntable rotation pedal to guide it onto the rim. Ensure the bead does not pinch.
- Inflation (Step 8): Reinstall the valve core. Connect the inflation gun to the valve stem. Inflate the tire to the recommended pressure, using the foot pedal for controlled inflation. The machine features a vertical inflation tool box for convenience.
- Letzte Kontrollen: Check for leaks and ensure the tire is properly seated on the rim.
Wartung
Regular maintenance ensures the longevity and optimal performance of your XK-806B Tire Changer:
- Täglich:
- Clean the machine, especially the turntable and clamping jaws, to remove tire debris and lubricant residue.
- Check air pressure and ensure the air filter/lubricator unit is functioning correctly. Drain any accumulated water from the air filter.
- Wöchentlich:
- Überprüfen Sie alle Schläuche und Anschlüsse auf Undichtigkeiten oder Beschädigungen.
- Lubricate moving parts, such as the mount/demount head pivot points and clamping jaw mechanisms, with appropriate grease or oil.
- Check the tightness of all fasteners and bolts.
- Monatlich/Vierteljährlich:
- Inspect the drive belt (if applicable) for wear and tension.
- Überprüfen Sie den Zustand des clamping jaw protective sleeves and replace if worn.
- Verify the accuracy of the inflation gauge.
- Lagerung: If storing the machine for an extended period, ensure it is clean, lubricated, and disconnected from power and air supplies.
Fehlerbehebung
Dieser Abschnitt bietet Lösungen für häufig auftretende Probleme:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Das Gerät lässt sich nicht einschalten. | No power supply; tripped circuit breaker; faulty power switch. | Check power connection; reset circuit breaker; contact customer support. |
| Plattenteller dreht sich nicht. | Motor issue; foot pedal malfunction; insufficient air pressure. | Check air supply; inspect foot pedal connections; contact customer support. |
| Clamping jaws do not operate. | Low air pressure; air line blockage; faulty pneumatic cylinder. | Verify air pressure (8-10 bar); check air lines for kinks; contact customer support. |
| Bead breaker is not effective. | Insufficient air pressure; improper positioning of wheel; worn bead breaker pad. | Check air pressure; reposition wheel; inspect and replace bead breaker pad if worn. |
| Tire or rim damage during operation. | Improper technique; worn protective sleeves on clamping jaws; incorrect mount/demount head adjustment. | Review operating instructions; replace worn protective sleeves; adjust mount/demount head properly. |
Technische Daten
Detailed technical specifications for the XK-806B Tire Changer Machine:
Figure 6: Product details including voltage, Leistung und Abmessungen.
Figure 7: Additional specifications such as noise level and net weight.
| Spezifikation | Wert |
|---|---|
| Hersteller | XK |
| Marke | XK |
| Modell | Nr. 806B |
| Artikelgewicht | 542 Pfund |
| Bandtage | 110/220/380 V |
| Leistung | 0.75/1.1kW |
| Turntable Rotation Speed | 7 U/min |
| Max. Raddurchmesser | 1180 mm |
| Reifenbreite | 3-14 Zoll |
| Felge Clamp Von außen | 12-23 Zoll |
| Felge Clamp Von innen | 15-26 Zoll |
| Arbeitsdruck | 8-10 bar |
| Geräuschpegel | < 70 dB |
| Datum der ersten Verfügbarkeit | 29. September 2024 |
Garantie und Support
XK is committed to providing quality products and customer satisfaction.
- Widerrufsfolgen: Dieses Produkt kann innerhalb von 30 Tagen problemlos zurückgegeben werden. Detaillierte Informationen finden Sie in den Rückgabebedingungen des Händlers.
- Kundendienst: For any questions, technical assistance, or service inquiries, please contact XK customer support. Contact information can typically be found on the product packaging or the retailer's webWebsite.
