T'nB FMCT09 Bluetooth FM Transmitter User Manual

Einführung

The T'nB FMCT09 Bluetooth FM Transmitter is designed to enhance your in-car audio experience. It allows you to stream music from your smartphone and manage calls directly through your vehicle's speakers, even if your car lacks built-in USB ports or Bluetooth connectivity. This device plugs into your car's cigarette lighter socket, providing a versatile solution for audio playback and charging.

Produkt überview

The FMCT09 offers multiple connection options and charging capabilities. Familiarize yourself with its components for optimal use.

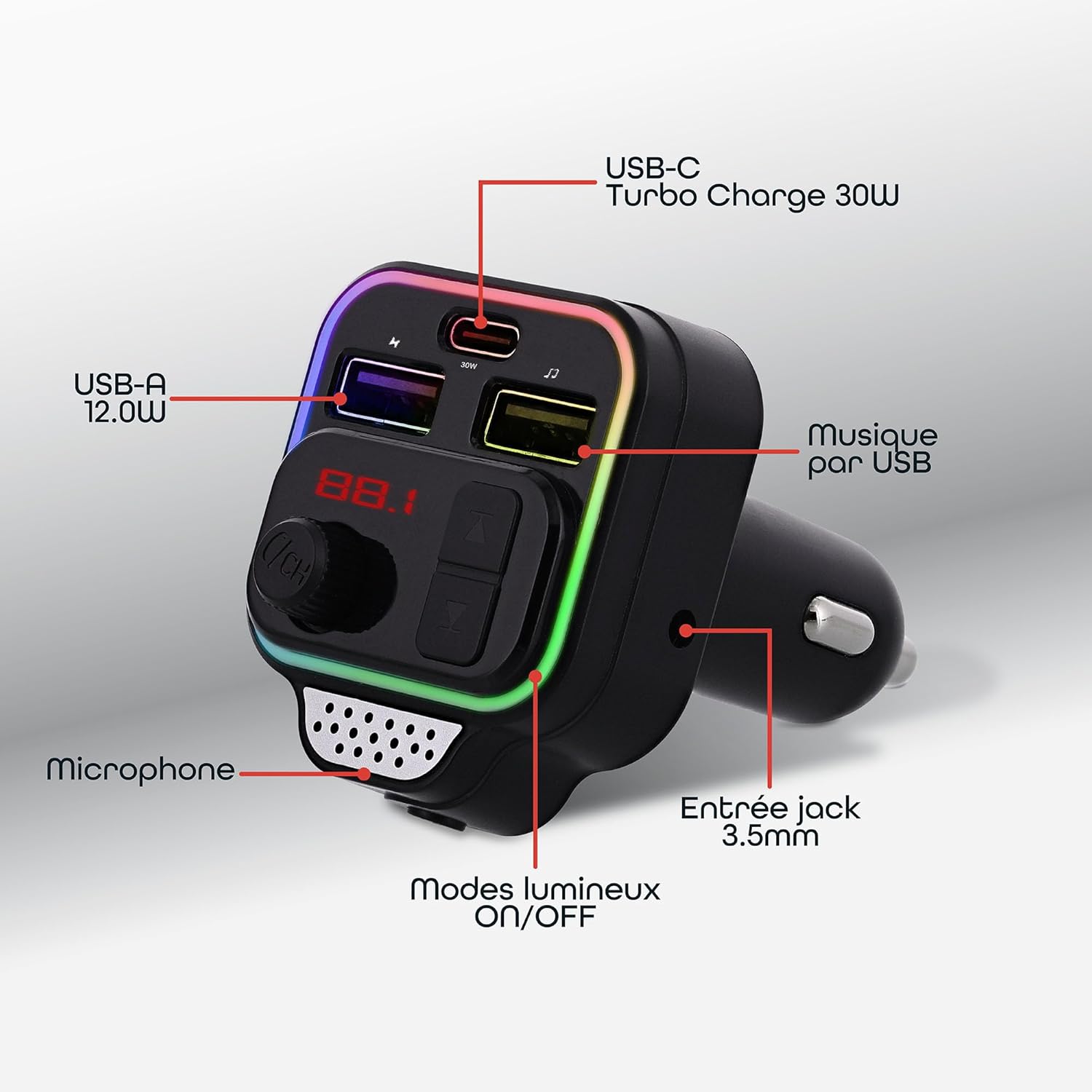

Bild: Überview of the T'nB FMCT09 Bluetooth FM Transmitter, highlighting its various ports and controls including USB-C, USB-A, music via USB, microphone, 3.5mm jack input, and luminous modes.

The FMCT09 supports three primary connection modes:

Image: The T'nB FMCT09 illustrating its three connection modes: Bluetooth for wireless pairing, USB-A for media playback or charging, and a 3.5mm jack cable for auxiliary audio input.

• Bluetooth-Konnektivität: For wireless audio streaming and hands-free calls.
• USB-A-Anschlüsse: Two USB-A ports, one for music playback and one for QC3.0 18W charging.
• USB-C-Anschluss: For 30W Turbo Charging.
• 3.5-mm-Klinkeneingang: Für kabelgebundene Audioverbindungen.
• Mikrofon: Integriert für Freisprechfunktion.
• Bedientasten: For managing music, calls, and volume.
• Luminous Outline: Customizable LED lighting modes.

Installationsanweisungen

1. Einschalten: Insert the FMCT09 into your vehicle's 12V cigarette lighter socket. The device will power on automatically.
2. FM-Frequenz einstellen:

   Adjust your car radio to an unused FM frequency. Then, synchronize the FMCT09 to the same frequency. This ensures clear audio transmission.

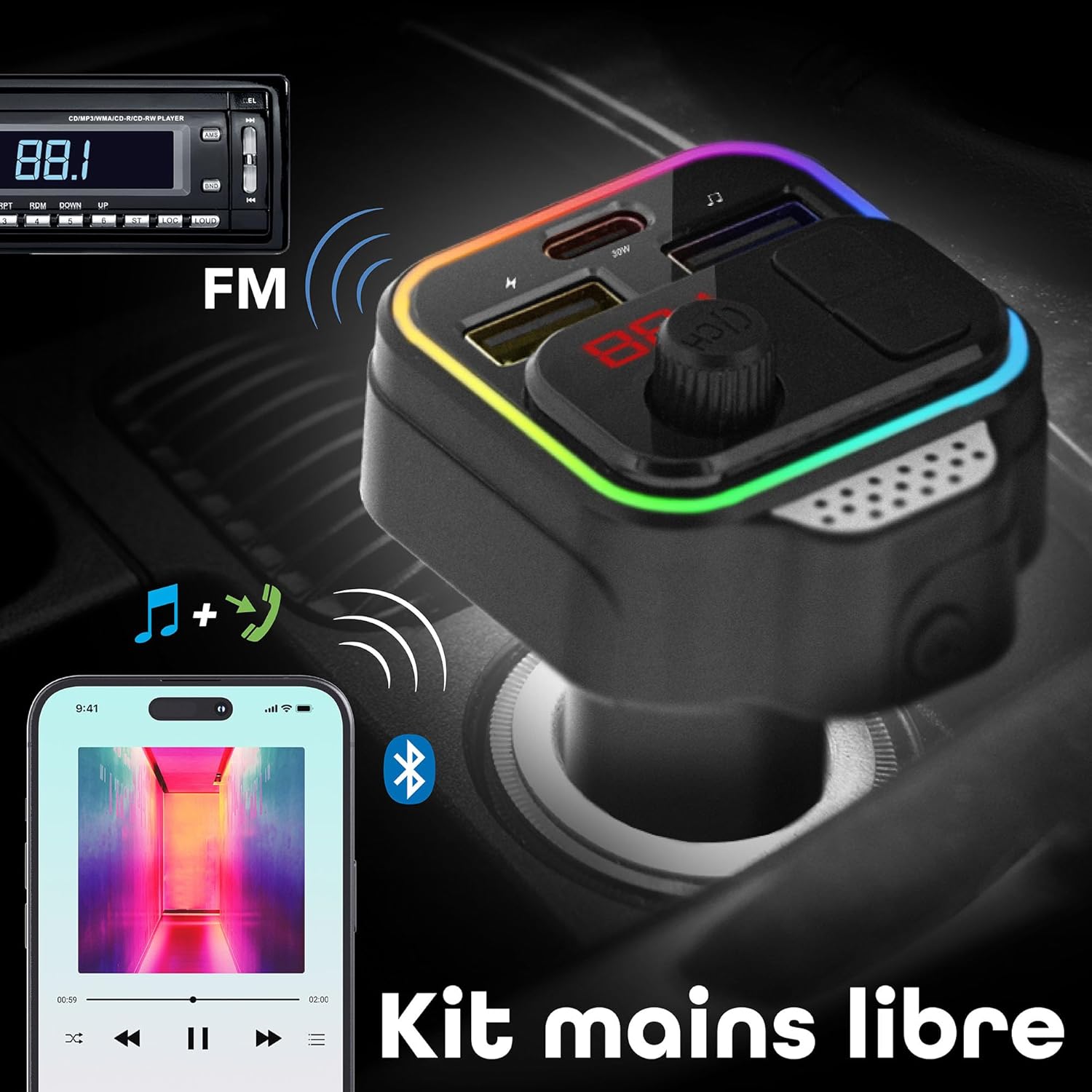

   Image: Illustration showing the T'nB FMCT09 displaying an FM frequency (88.1) and a car radio tuned to the same frequency, indicating successful synchronization for audio transmission.

3. Kopplung über Bluetooth:

   Aktivieren Sie die Bluetooth-Funktion auf Ihrem Mobilgerät. Suchen nach "FMCT09" in the list of available devices and select it to pair. A confirmation sound will indicate successful pairing.



   Image: A smartphone screen showing "FMCT09" as a discoverable Bluetooth device, with a hand selecting it for pairing, demonstrating the Bluetooth connection process.

4. Alternative Connections:
   • USB-Stick: Stecken Sie einen USB-Stick mit Audiodateien ein. files into the designated USB-A port for music playback.
   • 3.5-mm-Klinkenkabel: Connect your audio device to the FMCT09 using a 3.5mm jack cable.

Bedienungsanleitung

Musikwiedergabe

• Once connected via Bluetooth, USB stick, or jack cable, your music will play through your car's speakers.
• Use the integrated buttons on the FMCT09 to control playback (play/pause, next/previous track).
• Adjust the volume using the dedicated volume button on the device or your car radio.

Freisprechen

• When a call comes in, the music will automatically pause.
• Press the designated button on the FMCT09 to answer or end a call.
• The integrated microphone allows for clear communication.
• The device supports Siri function for voice commands during your travels.


Image: A visual representation of the T'nB FMCT09 facilitating both music streaming from a smartphone and hands-free call management through the car's audio system.

Ladegeräte

• The FMCT09 features two charging ports:
  • USB-A (QC3.0): Provides 18W fast charging.
  • USB-C: Offers 30W Turbo Charging.
• You can charge up to two devices simultaneously while using the FM transmitter's other functions.


Image: The T'nB FMCT09 connected to two charging cables, demonstrating its ability to charge two devices simultaneously via its USB-A (12W) and USB-C (30W Turbo Charge) ports.

Advanced Features and Controls

• Lautstärkeregelung: Easily adjust the volume using the dedicated control button.
• Batterie Voltage Anzeige: The device displays your car battery's voltage.
• Echo and Noise Suppression: Integrated technology provides an optimized audio experience.
• AD2P Function & Hi-Fi Stereo: Ensures high-quality stereo audio transmission.
• Siri-Funktion: Facilitates voice commands for convenience during your travels.


Bild: Eine detaillierte view of the T'nB FMCT09 highlighting features such as easy volume adjustment, battery voltage display, remote microphone, and Siri function for enhanced user interaction.

Luminous Modes

• The device features a luminous outline. Cycle through the available light modes: OFF, RED, GREEN, BLUE, APPLE GREEN, PURPLE, SKY BLUE.

Merkmale

• Premium Bluetooth FM Transmitter with integrated hands-free kit.
• Multiple connection options: Bluetooth, 3.5mm jack cable, USB stick.
• Dual charging ports: 1x USB-A QC3.0 (18W) and 1x USB-C (30W Turbo Charge).
• Allows full product functionality while charging mobile devices.
• Integrated buttons for music and call management.
• Automatic radio station search function.
• Adjustable music volume.
• Customizable luminous outline with multiple color modes.
• Echo and noise suppression technology for optimized audio experience.
• AD2P function and superior Hi-Fi stereo quality.
• Siri function support for voice commands.
• Akku voltage Anzeige.

Technische Daten

Image: Diagram showing the approximate dimensions of the T'nB FMCT09 Bluetooth FM Transmitter: 8cm (height), 5cm (width), and 4.5cm (depth).

Sicherheitshinweise

Bitte lesen und befolgen Sie diese Sicherheitsrichtlinien, um einen sicheren Betrieb zu gewährleisten und Schäden am Gerät oder Verletzungen zu vermeiden.

• Außerhalb der Reichweite von Kindern aufbewahren.
• Nicht während des Schlafens verwenden.
• Nicht extremen Temperaturen aussetzen.
• Do not throw into flames.
• Bei Beschädigung nicht verwenden.
• Vermeiden Sie Störungen mit anderen elektronischen Geräten.

Fehlerbehebung

If you encounter issues with your T'nB FMCT09, please refer to the following common solutions:

• Kein Strom: Ensure the device is securely plugged into the cigarette lighter socket and that the vehicle's power outlet is functional.
• Schlechte Audioqualität/Rauschen:
  • Adjust your car radio and the FMCT09 to a different, unused FM frequency to avoid interference.
  • Ensure the volume on both the FMCT09 and your car radio is set appropriately.
  • Check for strong local radio stations that might be interfering with your chosen frequency.
• Probleme mit der Bluetooth-Kopplung:
  • Stellen Sie sicher, dass Bluetooth auf Ihrem Mobilgerät aktiviert ist.
  • Ensure the FMCT09 is in pairing mode (usually indicated by a flashing light).
  • Delete "FMCT09" from your device's Bluetooth history and try pairing again.
  • Restart both your mobile device and the FMCT09.
• Laden funktioniert nicht:
  • Verify that the charging cable is properly connected to both the FMCT09 and your device.
  • Um Probleme mit dem Kabel oder dem Gerät auszuschließen, versuchen Sie es bitte mit einem anderen Ladekabel oder -gerät.
  • Ensure the vehicle's power outlet is providing power.

Wartung

To ensure the longevity and optimal performance of your FMCT09, follow these simple maintenance tips:

• Halten Sie das Gerät sauber, indem Sie es mit einem weichen, trockenen Tuch abwischen.
• Vermeiden Sie die Verwendung aggressiver Chemikalien oder Scheuermittel.
• Bewahren Sie das Gerät bei Nichtgebrauch an einem kühlen, trockenen Ort auf.
• Do not expose it to direct sunlight or extreme temperatures for extended periods.

Garantie und Support

The T'nB FMCT09 Bluetooth FM Transmitter comes with a 2 Jahr Herstellergarantie.

For technical support, warranty claims, or further assistance, please contact T'nB customer service through their official webWebsite oder der Einzelhändler, bei dem Sie das Produkt gekauft haben.
