1. Einleitung
Thank you for choosing the EMKE Bathroom Mirror with Lighting. This manual provides essential information for the safe installation, operation, and maintenance of your new mirror. Please read these instructions carefully before installation and retain them for future reference.
2. Sicherheitshinweise
- Vor Installationen oder Wartungsarbeiten muss immer die Stromzufuhr am Hauptsicherungsschalter unterbrochen werden.
- Die Installation sollte von einem qualifizierten Elektriker gemäß allen örtlichen Elektrovorschriften durchgeführt werden.
- Handle the mirror with care. The glass is tempered but can break if subjected to sharp impacts.
- Do not attempt to modify the electrical components of the mirror.
- Stellen Sie sicher, dass die Montagefläche statisch tragfähig ist und das Gewicht des Spiegels tragen kann.
- Halten Sie Kinder vom Installationsbereich fern.
3. Packungsinhalt
Vor Beginn der Installation prüfen Sie, ob alle Komponenten vorhanden und unbeschädigt sind.
- EMKE Bathroom Mirror with Lighting (Model TLM04BTD-FRVC)
- Befestigungsmaterial (Schrauben, Dübel)
- Bedienungsanleitung
4. Einrichtung und Installation
The EMKE Bathroom Mirror can be installed either horizontally or vertically. Choose the orientation that best suits your space.
Figure 4.1: Flexible Installation - Horizontal and Vertical Mounting Options
Installationsschritte:
- Messen: Determine the desired mounting height and position for the mirror. Mark the drilling points accurately on the wall.
- Markieren: Use a level to ensure the marks are perfectly aligned for horizontal or vertical installation.
- Bohren: Drill holes at the marked positions using an appropriate drill bit for your wall type. Insert wall anchors if necessary.
- Sicher: Insert screws into the wall anchors, leaving a small gap for the mirror's mounting brackets.
- Draht: Connect the mirror's electrical wiring to your household electrical supply. This step should be performed by a qualified electrician. Ensure power is disconnected before wiring.
- Montieren: Carefully hang the mirror onto the secured screws. Ensure it is stable and level.
Abbildung 4.2: Schritt-für-Schritt-Installationsanleitung
Abmessungen:
The mirror measures approximately 31.5 inches (80 cm) in length and 23.6 inches (60 cm) in width, with a depth of 35 mm.
Figure 4.3: Mirror Dimensions
5. Bedienungsanleitung
Your EMKE Bathroom Mirror features intuitive touch controls for lighting and anti-fog functions.
5.1 Ein-/Ausschalten und Dimmen
- Einschalten: Touch the power button on the mirror surface. The button will illuminate white when the mirror is on.
- Ausschalten: Touch the power button again. The button will illuminate blue when the mirror is off.
- Dimmen: With the light on, press and hold the power button to adjust the brightness from 10% to 100%. Release the button when the desired brightness is reached. The mirror features a cool white light with a color temperature of 6500K.
Figure 5.1: Light Dimming Function (10% to 100%)
5.2 Antibeschlagfunktion
- Antibeschlag aktivieren: Touch the dedicated anti-fog button on the mirror surface. This function operates independently for energy efficiency.
- Klare Spiegelung: Once activated, the integrated heating plate ensures a clear reflection even in a humid bathroom environment.
Figure 5.2: Anti-Fog Function for Clear Reflection
5.3 Memory Function and Automatic Shut-Off
- Speicherfunktion: The mirror remembers the last set brightness level and light color, restoring it upon reactivation.
- Automatische Abschaltung: The mirror lighting will automatically turn off after 3 hours of inactivity to conserve energy.
5.4 Wandschaltersteuerung
- The mirror can be controlled via your home's wall switch, provided the mirror's touch power button is activated (mirror is in an 'on' state).
Figure 5.3: Flexible Control via Wall Switch (Wall switch not included)
6. Wartung
To ensure the longevity and optimal performance of your EMKE Bathroom Mirror, follow these maintenance guidelines:
- Reinigung der Spiegeloberfläche: Verwenden Sie ein weiches, fusselfreies Tuch und einen nicht scheuernden Glasreiniger. Sprühen Sie den Reiniger auf das Tuch und nicht direkt auf den Spiegel, damit keine Flüssigkeit in die Ränder läuft.
- Rahmen reinigen: Wischen Sie den Rahmen mit einem weichen, fusselfreien Tuch ab.amp Mit einem Tuch abwischen. Vermeiden Sie aggressive Chemikalien oder Scheuermittel, die die Oberfläche beschädigen könnten.
- Elektrische Komponenten: Do not attempt to clean or service the internal electrical components. If you suspect an issue, contact a qualified electrician.
- Regelmäßige Inspektion: Periodically check the mounting hardware to ensure it remains secure.
7. Fehlerbehebung
If you encounter any issues with your EMKE Bathroom Mirror, refer to the following troubleshooting guide:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Licht geht nicht an | Keine Stromversorgung Fehlerhafte Verkabelung Fehlfunktion des Berührungsschalters | Check circuit breaker. Ensure proper electrical connection. If wiring is suspected, consult an electrician. |
| Die Antibeschlagfunktion funktioniert nicht. | Anti-fog button not activated Elektrisches Problem | Ensure the anti-fog button is pressed. Check power supply. |
| Licht flackert oder ist schwach | Instabile Stromversorgung Dimmeinstellung zu niedrig | Check power connections. Adjust brightness using the touch switch. |
| Mirror does not respond to wall switch | Mirror's touch button is off | Ensure the mirror's touch power button is activated (light is on or in standby mode). |
8. Spezifikationen
- Marke: EMKE
- Modellnummer: TLM04BTD-FRVC
- Produktabmessungen: 31.5 Zoll lang x 23.62 Zoll breit (80 cm x 60 cm)
- Form: Rechteckig
- Montageart: Wandhalterung
- Farbe: Anti-fog+6500k (Cool White Light)
- Lichtfarbtemperatur: 6500
- Dimmbar: Yes (10% to 100%)
- Merkmale: Anti-Fog, Touch Switch, Memory Function, Automatic Shut-Off (3 hours)
- Artikelgewicht: 16.94 Pfund
- Montage erforderlich: Nein (Installation erforderlich)
- Enthaltene Komponenten: Spiegel

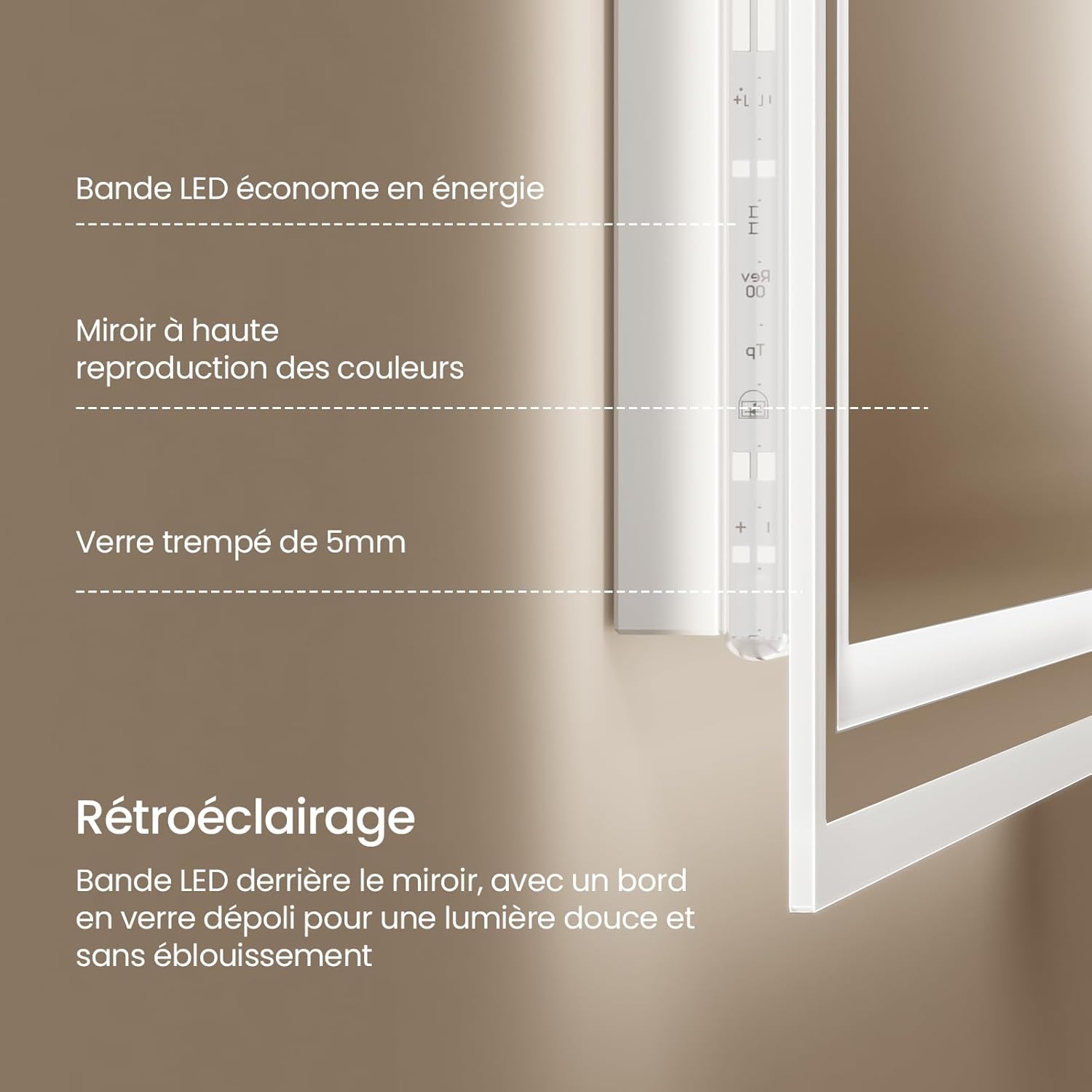

Figure 8.1: Mirror Construction Details
9. Garantie und Support
EMKE products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official EMKE website. Please have your model number (TLM04BTD-FRVC) and purchase date available when contacting support.
