SOLAKAKA SM805 Leichte kabellose Gaming-Maus – Benutzerhandbuch

1. Einleitung

This manual provides detailed instructions for the SOLAKAKA SM805 Lightweight Wireless Gaming Mouse. Please read this manual thoroughly before using the product to ensure proper operation and to maximize your gaming and work experience.

Abbildung 1: Vorderseite view of the SOLAKAKA SM805 mouse, showcasing its ergonomic shape and the included 2.4GHz USB receiver.

2. Produktüberschreitungview und Funktionen

The SOLAKAKA SM805 is a versatile gaming mouse designed for performance and comfort. Key features include:

• Dreimodus-Konnektivität: Supports 2.4GHz wireless, Bluetooth 5.0, and Type-C wired connections.
• Hochpräziser Sensor: Equipped with the PAW3311 sensor, offering adjustable DPI from 100 to 24000.
• Leichtbauweise: Weighs approximately 66g (without cable) for reduced wrist burden.
• Ergonomischer Griff: Contoured shape designed for comfortable right-hand use.
• Programmierbare Tasten: Features 6 customizable buttons for personalized functions and macros.
• Lange Akkulaufzeit: Integrated 800mAh high-capacity rechargeable battery with intelligent sleep design.
• Hohe Abfragerate: Up to 1000Hz polling rate for responsive tracking.

Abbildung 2: Ein Überview of the SOLAKAKA SM805 mouse's main features, including its connectivity options, sensor capabilities, button count, weight, polling rate, and battery capacity.

3. Packungsinhalt

Bitte prüfen Sie das Paket auf folgende Artikel:

• SOLAKAKA SM805 Wireless Gaming Mouse
• 2.4 GHz USB-Empfänger
• Typ C Ladekabel
• Bedienungsanleitung
• AAA Battery (pre-installed or included separately)

4. Einrichtung

4.1 Aufladen der Maus

Before first use, it is recommended to fully charge the mouse. Connect the Type-C charging cable to the mouse's front port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The mouse can be used while charging.

4.2 Anschließen der Maus

The SM805 mouse offers three connection modes:

Figure 3: Image illustrating the three connectivity modes (Bluetooth, 2.4GHz wireless, and Type-C wired) of the SM805 mouse, along with its 800mAh rechargeable battery.

2.4-GHz-Wireless-Modus:

1. Suchen Sie den 2.4-GHz-USB-Empfänger, der sich normalerweise in einem Fach an der Unterseite der Maus befindet.
2. Stecken Sie den USB-Empfänger in einen freien USB-Port Ihres Computers.
3. On the underside of the mouse, slide the mode switch to the '2.4G' position. The mouse should connect automatically.

Bluetooth 5.0-Modus:

1. On the underside of the mouse, slide the mode switch to the 'BT' position.
2. Aktivieren Sie Bluetooth auf Ihrem Computer oder Gerät und suchen Sie nach neuen Geräten.
3. Select 'SOLAKAKA SM805' from the list of available devices to pair.

Type-C Wired Mode:

1. Connect the Type-C charging cable to the mouse and the other end to your computer's USB port.
2. Die Maus schaltet automatisch in den kabelgebundenen Modus und beginnt mit dem Ladevorgang.

5. Bedienungsanleitung

5.1 DPI-Anpassung

The SM805 mouse features a dedicated DPI button, typically located behind the scroll wheel, allowing you to cycle through preset DPI levels (800-1200-1600-3200-12000-22000). The DPI indicator light will change to reflect the current setting. Fine-tuning of DPI (100-24000 DPI) is available via the software.

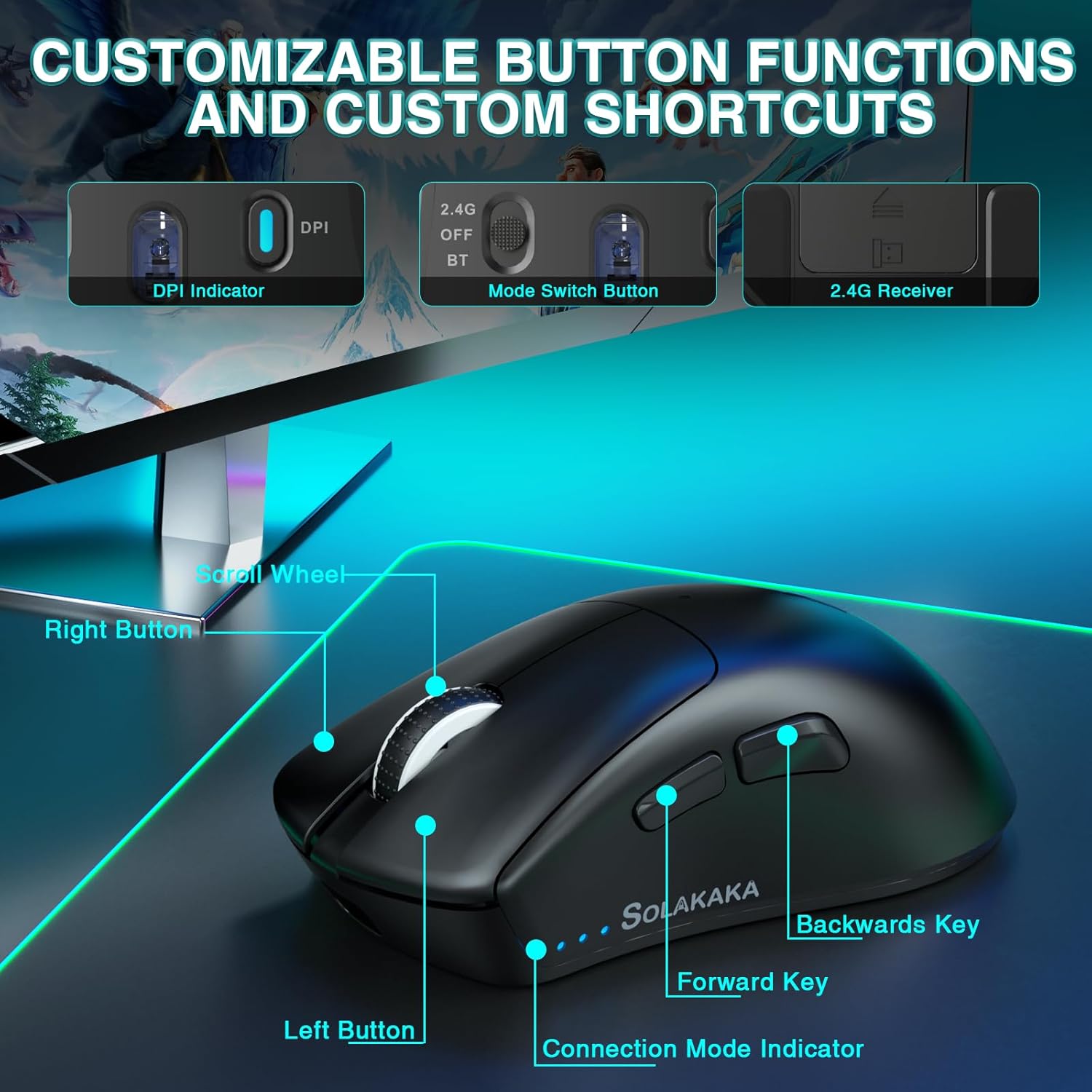

Figure 4: A detailed diagram pointing out the various buttons and indicators on the SM805 mouse, including the DPI indicator, mode switch, scroll wheel, and side buttons.

5.2 programmierbare Tasten

The mouse includes 6 programmable buttons: Left Click, Right Click, Middle Click (Scroll Wheel), Forward Key, Backward Key, and DPI Switch. These buttons can be customized using the SOLAKAKA software.

5.3 Intelligent Power Saving

To conserve battery life, the SM805 mouse is equipped with an intelligent sleep design. If the mouse is inactive for a certain period, it will automatically enter hibernation mode. To wake it up, simply click any button.

6. Anpassung (Software)

For advanced customization, download the official SOLAKAKA software (compatible with Windows). The software allows you to:

• Program all 6 buttons with various functions, multimedia keys, or fire keys.
• Create and assign macro files for complex command sequences.
• Adjust DPI settings in increments of 100, up to 24000 DPI.
• Set the polling rate (report rate) from 125Hz to 1000Hz.

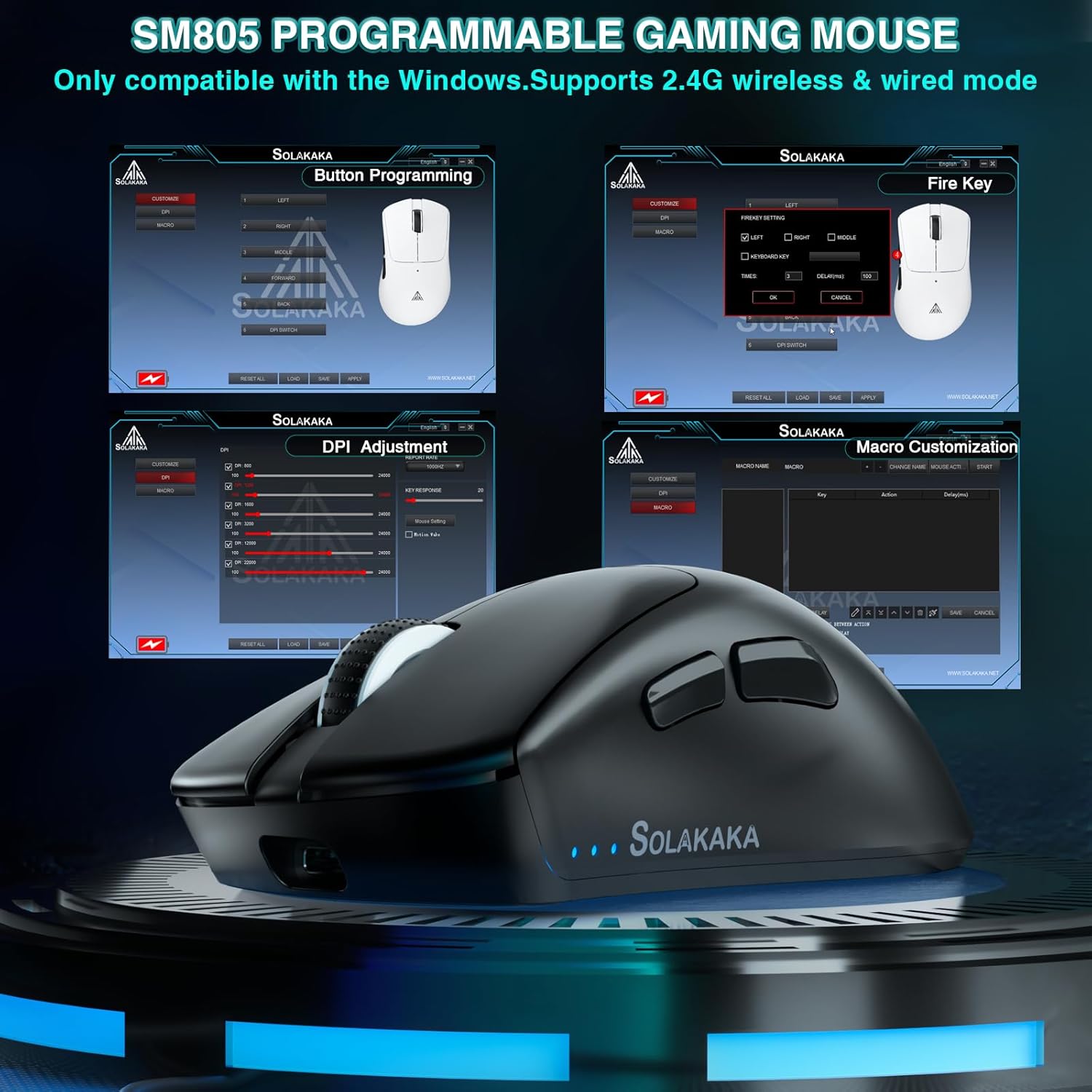

Figure 5: A visual representation of the SM805 mouse's software interface, demonstrating its capabilities for button programming, DPI settings, and macro creation.

7. Wartung

• Reinigung: Reinigen Sie die Maus mit einem weichen, trockenen Tuch. Vermeiden Sie die Verwendung von scharfen Chemikalien oder scheuernden Materialien.
• Lagerung: Bewahren Sie die Maus an einem kühlen, trockenen Ort fern von direkter Sonneneinstrahlung und extremen Temperaturen auf.
• Batteriepflege: For optimal battery longevity, avoid fully discharging the battery frequently. Charge the mouse when the battery indicator is low.

8. Fehlerbehebung

8.1 Verbindungsprobleme

• No connection in 2.4GHz mode: Stellen Sie sicher, dass der USB-Empfänger fest eingesteckt ist und der Mausschalter auf „2.4 GHz“ eingestellt ist. Versuchen Sie es mit einem anderen USB-Anschluss.
• Fehler bei der Bluetooth-Kopplung: Ensure Bluetooth is enabled on your device and the mouse switch is set to 'BT'. Remove previous pairings and try pairing again.
• Unterbrechungsverbindung: Ensure the mouse is within range of the receiver/device. Avoid sources of strong electromagnetic interference.

8.2 Maus reagiert nicht

• Prüfen Sie den Akkustand. Ist er niedrig, schließen Sie das Ladekabel an.
• If in intelligent sleep mode, click any button to wake the mouse.
• Versuchen Sie, Ihren Computer neu zu starten.

9. Spezifikationen

10. Garantie und Support

For warranty information and technical support, please refer to the documentation included with your product or visit the official SOLAKAKA brand store. You can find more information at the SOLAKAKA Store on Amazon.
