Carson 500204036 1:8 Virus V21 2.4G RTR Nitro RC Buggy Bedienungsanleitung

Einführung

This manual provides essential information for the safe and effective operation, maintenance, and setup of your Carson 500204036 1:8 Virus V21 2.4G RTR Nitro RC Buggy. Please read this manual thoroughly before using the product to ensure proper handling and to maximize your enjoyment.

The Virus V21 is a high-performance 1:8 scale RC buggy designed for ambitious RC enthusiasts. With its 3.5 ccm Force nitro engine and numerous configuration options, it provides impressive driving fun both off-road and on asphalt. It features a 2.4 GHz interference-free remote control system, a robust competition aluminum chassis, and high-quality components like three steel differentials and powerful 9kg servos.

Sicherheitswarnungen

WARNUNG!

• Nicht empfohlen für Kinder unter 14 Jahren.
• Please keep these indications for any query.
• Images may differ from the product found in the packaging.
• TAMIYA-CARSON reserves the right to make improvements and modifications.
• Always operate the RC buggy in a safe and open area, away from people, pets, and obstacles.
• Never operate the RC buggy near public roads or in areas where it could cause a disturbance.
• Ensure proper ventilation when operating the nitro engine.
• Handle fuel with care and store it in a safe, well-ventilated area away from ignition sources.

Aufstellen

1. Auspacken und Komponentenidentifizierung

Carefully remove all components from the packaging. Verify that all parts are present according to the packing list. The package includes the fully assembled RC buggy with a combustion engine and a 2.4 GHz remote control system.

• Carson 1:8 Virus V21 RC Buggy
• 2.4 GHz Reflex Wheel Remote Control
• Nitro Combustion Engine (3.5 ccm Force engine)
• Bedienungsanleitung
• Additional accessories (check packaging for full list)

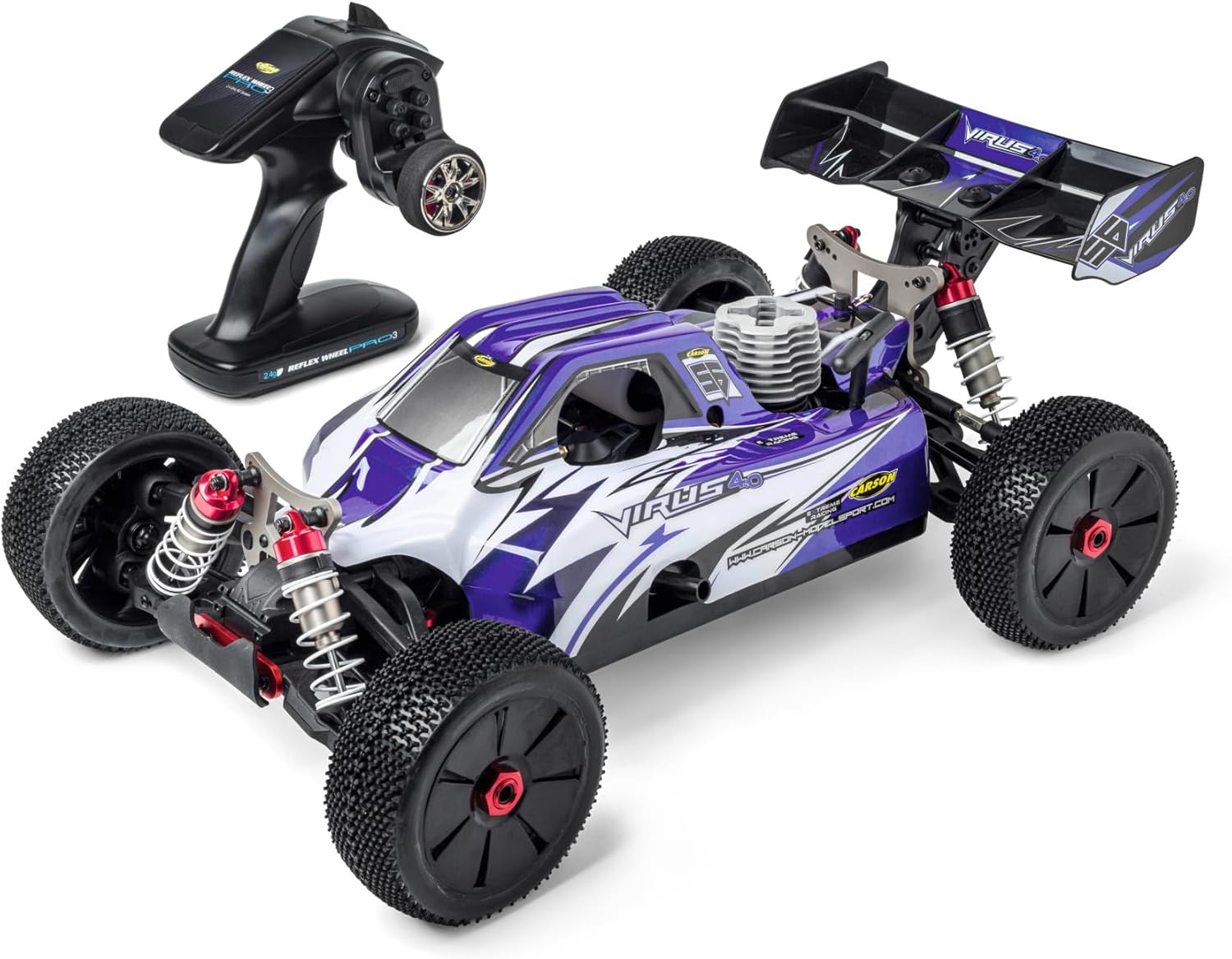

Image: The Carson 1:8 Virus V21 RC Buggy shown with its 2.4 GHz Reflex Wheel remote control.

2. Initial Checks and Preparation

1. Batterien der Fernbedienung: Install the required batteries (not included) into the 2.4 GHz Reflex Wheel remote control. Ensure correct polarity.
2. Empfängerbatterien: Install the receiver batteries (not included) into the RC buggy.
3. Tanken: This model uses nitro fuel. Carefully fill the fuel tank with appropriate nitro fuel (not included). Refer to the engine manufacturer's recommendations for fuel type.
4. Engine Priming: Before the first start, prime the engine according to the nitro engine manual. This usually involves covering the exhaust and pulling the starter cord a few times until fuel reaches the carburetor.
5. Glühkerze: Ensure the glow plug is properly installed and connected to a glow plug igniter (not included).
6. Binding (if necessary): If the remote control and receiver are not pre-bound, follow the instructions in the remote control manual to bind them.

Bedienungsanleitung

1. Starten des Motors

1. Place the RC buggy on a stable surface.
2. Turn on the remote control, then turn on the receiver in the buggy.
3. Attach the glow plug igniter to the glow plug.
4. Use the pull starter to start the engine. If the engine does not start after a few pulls, check the fuel flow and glow plug.
5. Once the engine starts, remove the glow plug igniter.

2. Fahrbedienelemente

• Drosseln: Use the trigger on the remote control to accelerate (pull) and brake/reverse (push).
• Lenkung: Benutzen Sie das Lenkrad auf der Fernbedienung, um nach links oder rechts zu lenken.
• Borten: Adjust the steering and throttle trims on the remote control to ensure the buggy drives straight and stops when the throttle is neutral.

3. Fahrtipps

• Off-road Driving: The robust chassis and large-diameter oil pressure shock absorbers are designed for challenging off-road conditions. Maintain control on uneven terrain and adjust speed accordingly.
• Asphalt Driving: The buggy can also be driven on asphalt. Adjusting convergence and camber can optimize performance for smoother surfaces.
• Höchstgeschwindigkeit: The Carson Virus V21 can reach speeds of up to 65 km/h. Always be aware of your surroundings and drive responsibly.

Image: The Carson 1:8 Virus V21 RC Buggy in action on a gravel surface, demonstrating its off-road capability.

Wartung

Regular maintenance is crucial for the longevity and performance of your Carson Virus V21 RC Buggy.

1. Allgemeine Reinigung

• After each use, especially in dusty or muddy conditions, clean the buggy thoroughly. Use a soft brush or compressed air to remove dirt and debris.
• Avoid using water directly on electronic components. If necessary, use a damp cloth and ensure all parts are dry before next use.

2. Engine Maintenance (Nitro Engine)

• After-Run Oil: Apply after-run oil to the engine after each running session to prevent corrosion, especially if storing for extended periods.
• Luftfilter: Regularly clean and re-oil the air filter to protect the engine from dust and dirt.
• Glühkerze: Inspect the glow plug periodically and replace it if it shows signs of wear or damage.
• Carburetor Settings: Refer to the engine manual for proper carburetor tuning. Incorrect settings can lead to poor performance or engine damage.

3. Component Checks

• Lager: The vehicle is fully ball-bearing mounted. Check bearings for smooth operation and replace if they feel rough.
• Differenziale: The buggy features three steel differentials. Inspect them for wear and ensure they are properly lubricated.
• Stoßdämpfer: Check the large-diameter oil pressure shock absorbers for leaks or damage. Ensure they provide consistent damping.
• Servos: Verify that the 9kg steering and throttle/brake servos operate smoothly and respond accurately to remote control inputs.
• Fahrgestell und Federung: Regularly inspect the aluminum chassis, solid wishbones, and pivot ball suspension for any damage or loose connections.

Fehlerbehebung

This section addresses common issues you might encounter with your RC buggy.

If you encounter issues not listed here, please consult the detailed engine manual or contact Carson customer support.

Technische Daten

Garantie und Support

Carson products are known for their quality. For warranty claims or technical support, please refer to the contact information provided with your product packaging or visit the official Carson webBewahren Sie Ihren Kaufbeleg für eventuelle Garantieanfragen auf.

As a specialist in remote-controlled vehicles, Carson has been guaranteeing exceptional quality and product safety for 30 years.
