Einführung
Thank you for choosing the Outsunny Double Sided Patio Umbrella with LED Light. This manual provides important information regarding the safe assembly, operation, and maintenance of your new umbrella. Please read these instructions thoroughly before use and retain them for future reference.
Sicherheitshinweise
Bitte beachten Sie die folgenden Sicherheitsvorkehrungen, um Verletzungen oder Schäden am Produkt zu vermeiden:
- Stabilität: Ensure the umbrella is securely mounted in a weighted base. A minimum of 66 lbs. weight is required for stability (base not included).
- Wetterbedingungen: Do not use the umbrella during extreme weather conditions such as strong winds, heavy rain, or snow. High winds can cause the umbrella to tip over or become damaged.
- Montage: Follow all assembly instructions carefully. Ensure all parts are correctly installed and tightened before use.
- Spielraum: Maintain adequate clearance around the umbrella to prevent obstruction or contact with other objects when opening or closing.
- Kinder und Haustiere: Um Unfälle zu vermeiden, sollten Kinder und Haustiere während des Betriebs des Regenschirms ferngehalten werden.
- LED-Leuchten: The integrated LED lights are solar-powered. Ensure the solar panel is exposed to direct sunlight for optimal charging.
Packungsinhalt
Vor Beginn der Montage prüfen Sie, ob alle Komponenten vorhanden sind:
- Double-sided Umbrella Canopy with LED Lights
- Two-section Umbrella Pole
- Kurbelmechanismus
- Bedienungsanleitung
- Note: Umbrella base is not included and must be purchased separately. Recommended base models: 84D-122 and 84D-077.
Einrichtung und Montage
Follow these steps for proper assembly of your patio umbrella:
- Attach Bottom Pole Section: Insert the bottom section of the umbrella pole into a suitable umbrella base (not included). Ensure the base is stable and weighted sufficiently (minimum 66 lbs.).
- Connect Top Pole Section: Carefully connect the top section of the umbrella pole, which includes the canopy and crank mechanism, to the bottom pole section. Ensure the connection is secure.
- Secure Umbrella in Base: Tighten any securing knobs or screws on your umbrella base to firmly hold the umbrella pole in place.
- Eröffnung: Gently turn the crank handle clockwise to begin opening the umbrella canopy. Ensure the fabric unfolds smoothly without snagging.

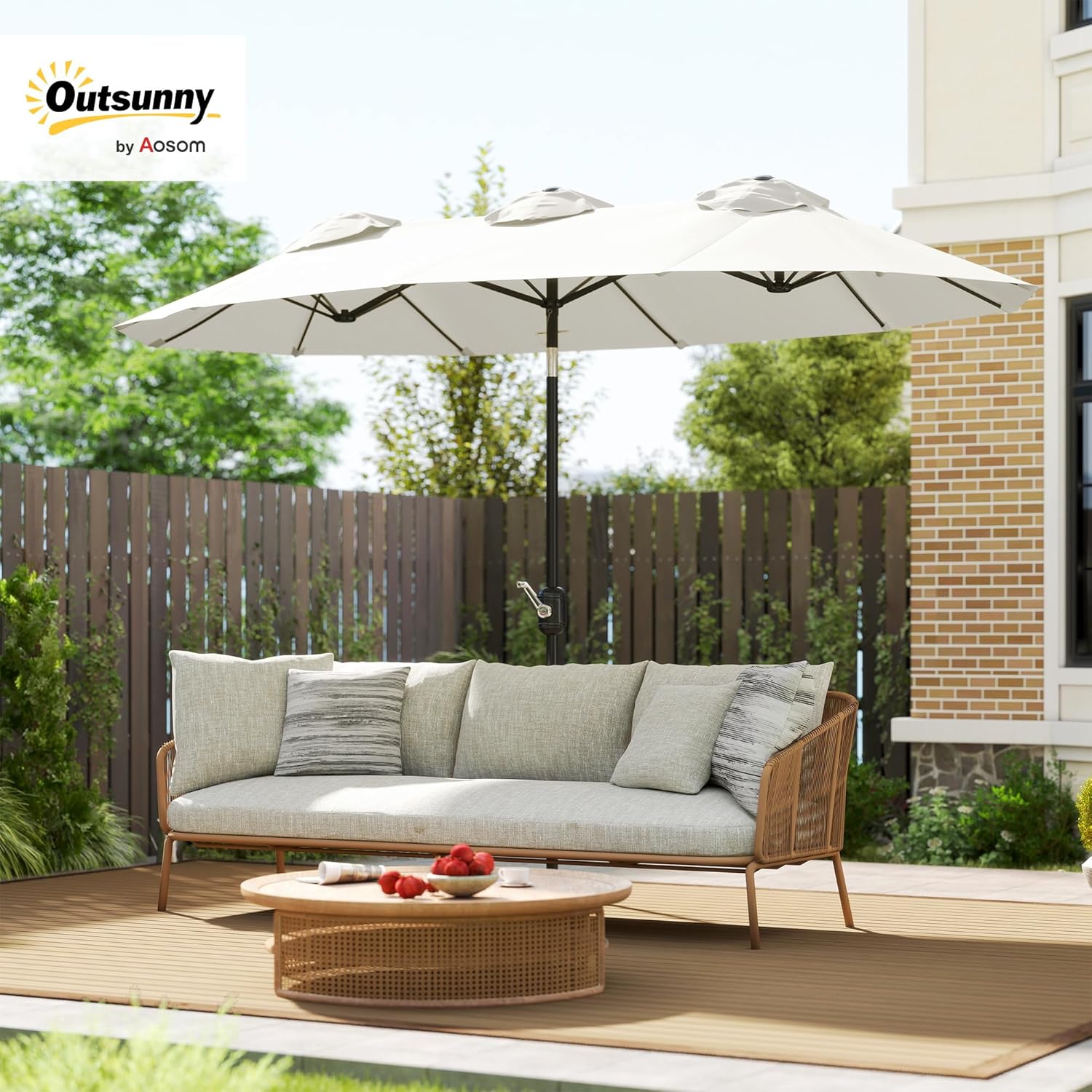

Image: The Outsunny Double Sided Patio Umbrella fully assembled and open, providing shade over a patio seating area.
Image: A visual representation of the umbrella's dimensions, including its length (116.1"), width (59.8"), and height (87.4").
Image: Detail showing the two-section design of the umbrella pole, facilitating easier transport and storage.
Betrieb
Öffnen und Schließen des Regenschirms
The umbrella features a convenient crank handle mechanism for easy operation.
- Öffnen: Turn the crank handle clockwise until the canopy is fully extended.
- Schließen: Turn the crank handle counter-clockwise until the canopy is fully retracted. Use the integrated latch to secure the canopy in the closed position.
Bild: Eine detaillierte view of the manual crank mechanism, indicating the direction to turn for opening and closing the umbrella.
Neigen des Baldachins
The umbrella canopy can be tilted up to 45 degrees to adjust shade coverage.
- Locate the tilt button or lever on the umbrella pole.
- Press the button or engage the lever and gently tilt the canopy to the desired angle. Release the button/lever to lock it in place.
Image: A close-up demonstrating the tilt mechanism, allowing adjustment of the umbrella's angle to block oblique sunlight.
Verwenden der LED-Leuchten
This umbrella is equipped with 36 solar-powered LED lights integrated into the ribs.
- Ensure the solar panel located on top of the umbrella canopy is exposed to direct sunlight during the day for charging.
- The lights will automatically illuminate at dusk or can be manually switched on/off if a switch is present (refer to specific product design for switch location if applicable).
Image: The double-sided patio umbrella with its LED lights glowing, providing ambient lighting for an evening patio setting.
Wartung
Proper care will extend the life of your umbrella.
- Reinigung: Wipe the canopy fabric and frame with a dry cloth. For stubborn dirt, use a mild soap solution and a soft brush, then rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
- Lagerung: When not in use for extended periods or during inclement weather, close the umbrella and secure it. For long-term storage, it is recommended to remove the umbrella from its base and store it in a dry, protected area.
- Inspektion: Periodically inspect the frame, ribs, and fabric for any signs of wear, damage, or loose connections. Address any issues promptly.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Der Regenschirm lässt sich nicht reibungslos öffnen/schließen. | Der Mechanismus ist steif oder blockiert. | Check for any obstructions in the canopy or crank mechanism. Apply a silicone-based lubricant to moving parts if necessary. |
| Die LED-Leuchten funktionieren nicht. | Insufficient solar charge; solar panel is dirty or obstructed; switch is off. | Ensure the solar panel receives direct sunlight for several hours. Clean the solar panel. Check if there's a manual switch and ensure it's in the "ON" position. |
| Umbrella is unstable. | Der Sockel ist entweder nicht schwer genug oder nicht richtig befestigt. | Ensure the umbrella base meets the minimum weight requirement (66 lbs.) and that the pole is securely tightened within the base. |
Technische Daten
| Modellnummer: | 84D-217V80CW |
| Gesamtabmessungen: | 116.5" L x 59.1" B x 89.4" H (295.9 cm L x 150.1 cm B x 227.1 cm H) |
| Canopy Bottom Height: | 77.5 Zoll H (196.8 cm H) |
| Material: | Polyester Fabric (180 gsm), Steel Frame |
| Farbe: | Creme Weiß |
| Besondere Merkmale: | 45-Degree Tiltable Canopy, Crank Handle, Double-Sided Design, Two-Section Umbrella Pole, Vented Canopy, 36 Solar LED Lights |
| Required Base Weight: | 66 lbs. (not included) |
| Pflegehinweise: | Mit trockenem Tuch abwischen |
Image: The polyester canopy features a vented design to enhance stability in windy conditions.
Kontakt und Support
For further assistance, questions, or to report any issues, please contact Outsunny customer support. Refer to your purchase documentation for specific contact details or visit the official Outsunny webWebsite.
Hersteller: Aosom LLC
Marke: In der Sonne
