Sygonix SY-6313014 Solar-Wandspot Bedienungsanleitung

1. Einleitung

Thank you for choosing the Sygonix SY-6313014 Solar Wall Spot. This product is a solar-powered LED floodlight designed for outdoor use, providing warm white illumination. It features an integrated solar panel for energy collection and a remote control for convenient operation. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Sicherheitshinweise

• Ensure all components are securely mounted to prevent falling.
• Do not look directly into the LED light when it is active, as this may cause eye strain or damage.
• Halten Sie das Solarpanel sauber, um eine optimale Ladeeffizienz zu gewährleisten.
• Do not attempt to modify or disassemble the product. Refer all servicing to qualified personnel.
• Bewahren Sie Verpackungsmaterialien außerhalb der Reichweite von Kindern auf.
• This product is designed for outdoor use. Ensure all connections are waterproof and protected from the elements.

3. Packungsinhalt

Bitte überprüfen Sie, ob alle unten aufgeführten Artikel in Ihrem Paket enthalten sind:

• LED Floodlight Unit
• Solarmodul mit Anschlusskabel
• Fernbedienung
• Mounting Bracket for LED Floodlight
• Montagehalterung für Solarpanel
• Screws and Wall Plugs for installation

Image 3.1: All components of the Sygonix SY-6313014 Solar Wall Spot, including the LED floodlight, solar panel, remote control, and various mounting hardware.

4. Produktüberschreitungview

The Sygonix SY-6313014 consists of a separate solar panel and an LED floodlight unit, connected by a cable. This design allows for flexible placement of both components to optimize sunlight exposure for the panel and light coverage for the floodlight.

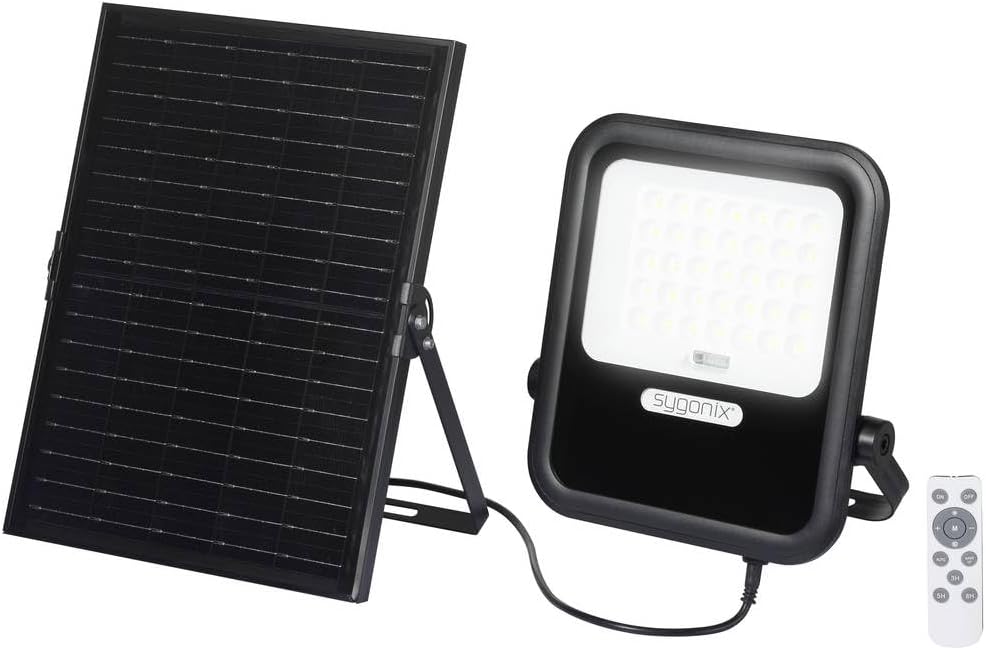

Bild 4.1: Vorderseite view of the Sygonix SY-6313014 Solar Wall Spot, showing the solar panel, the LED floodlight unit with the Sygonix logo, and the remote control.

Abbildung 4.2: Nahaufnahme von vorn view of the Sygonix SY-6313014 Solar Wall Spot, highlighting the solar panel and the LED array on the floodlight unit.

Abbildung 4.3: Rückseite view of the Sygonix SY-6313014 Solar Wall Spot, showing the rear of the solar panel and the heat sink design on the back of the LED floodlight unit, along with the connecting cable.

5. Einrichtung und Installation

Follow these steps to install your solar wall spot:

1. Wählen Sie den Installationsort: Select a location for the solar panel that receives direct sunlight for at least 6-8 hours daily. The LED floodlight can be placed in a desired area for illumination, ensuring the connecting cable can reach both units.
2. Montieren Sie das Solarpanel: Use the provided mounting bracket, screws, and wall plugs to securely attach the solar panel to a wall or pole. Adjust the angle of the solar panel to face the sun for maximum exposure.
3. Mount the LED Floodlight: Attach the LED floodlight unit to your desired location using its mounting bracket, screws, and wall plugs. Ensure it is securely fastened and can be angled to illuminate the target area.
4. Schließen Sie das Kabel an: Carefully connect the cable from the solar panel to the LED floodlight unit. Ensure the connection is firm and waterproof.
5. Grundgebühr: Allow the solar panel to charge the internal battery for at least 24 hours in direct sunlight before first use. The light may not operate at full capacity if not sufficiently charged.

6. Bedienungsanleitung

The Sygonix SY-6313014 Solar Wall Spot operates automatically at dusk and can be controlled manually via the remote control.

Automatischer Betrieb

• The integrated light sensor will automatically turn on the floodlight at dusk and turn it off at dawn, provided there is sufficient battery charge.

Fernbedienungsfunktionen

Die Fernbedienung ermöglicht die manuelle Steuerung und Anpassung der Einstellungen:

• EIN/AUS: Press to manually turn the light on or off.
• Helligkeitsanpassung: Use the brightness buttons (e.g., '+' and '-') to increase or decrease the light intensity.
• Timer-Einstellungen: Set the light to operate for a specific duration (e.g., 3H, 5H, 8H). The light will turn off after the set time.
• Modusauswahl: Some remotes offer different lighting modes (e.g., constant light, motion sensor mode if applicable). Refer to the remote's specific button labels.

7. Wartung

Regular maintenance ensures optimal performance and longevity of your solar wall spot.

• Solarpanel reinigen: Wischen Sie die Oberfläche des Solarpanels regelmäßig mit einem weichen,amp cloth to remove dust, dirt, or debris. A clean panel ensures maximum sunlight absorption.
• Verbindungen prüfen: Inspect the cable connection between the solar panel and the floodlight regularly to ensure it remains secure and free from damage.
• Clean LED Unit: Gently wipe the LED floodlight's surface to remove any accumulated dirt that might obstruct light output.

8. Fehlerbehebung

If you encounter issues with your Sygonix SY-6313014, refer to the following troubleshooting guide:

• Das Licht geht nachts nicht an:
  • Ensure the solar panel is receiving sufficient direct sunlight during the day.
  • Check if the cable connection between the solar panel and the floodlight is secure.
  • Verify that the remote control has not set a timer that has expired or turned the light off.
  • Allow for an initial charge of at least 24 hours.
• Das Licht ist schwach oder bleibt nur kurz an:
  • The battery may not be fully charged. Ensure the solar panel is clean and positioned for maximum sunlight exposure.
  • Wetterbedingungen (z. B. anhaltende Bewölkung) können die Ladeeffizienz beeinträchtigen.
• Die Fernbedienung funktioniert nicht:
  • Prüfen Sie, ob die Batterie der Fernbedienung ausgetauscht werden muss.
  • Ensure there are no obstructions between the remote and the floodlight's sensor.

9. Spezifikationen

10. Garantie und Support

Sygonix products are designed for reliability and performance. For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official Sygonix website. For technical support or further assistance, please contact Sygonix customer service.
