1. Einleitung
Thank you for choosing the Dedra DED8682 Electric Garden Shredder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new garden tool. Please read these instructions carefully before use and keep them for future reference.
The Dedra DED8682 is designed for processing garden waste, such as branches and plant material, into smaller pieces suitable for composting or disposal. It features a powerful 2800W motor and a robust cutting roller mechanism capable of handling branches up to 44mm in diameter.
Abbildung 1: Vorderseite view of the Dedra DED8682 Electric Garden Shredder.
2. Sicherheitshinweise
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This shredder is intended for outdoor use only.
Allgemeine Sicherheit
- Lesen Sie das gesamte Handbuch: Understand all instructions before operating the shredder.
- Wear appropriate PPE: Always wear safety glasses, hearing protection, sturdy gloves, and long trousers. Avoid loose clothing that could get caught in moving parts.
- Clear the work area: Ensure the area around the shredder is free of debris, children, and pets. Maintain a safe distance from others.
- Stabiler Untergrund: Stellen Sie den Aktenvernichter auf eine feste, ebene Fläche, um ein Umkippen zu verhindern.
- Vermeiden Sie nasse Bedingungen: Do not operate the shredder in rain or damp Umgebungen.
- Stromzufuhr trennen: Always unplug the shredder from the power supply before performing any assembly, cleaning, maintenance, or when leaving it unattended.
- Hände fernhalten: Never place hands or any body part into the feeding chute or discharge opening while the machine is running. Use the provided pusher tool for feeding material.
- Überlastschutz: The shredder is equipped with overload protection. If it stops due to overload, disconnect power, clear the jam, and allow it to cool before restarting.
3. Aufbau und Montage
Before first use, ensure all components are present and assemble the shredder according to these steps.
Auspacken
- Entnehmen Sie vorsichtig alle Teile aus der Verpackung.
- Prüfen Sie das Produkt auf Transportschäden. Beschädigte Produkte dürfen nicht verwendet werden.
- Verify all components listed in the 'Included Components' section are present.
Attaching the Wheels and Support Legs
Attach the transport wheels and support legs to the base of the shredder for stability and mobility.
Figure 2: The shredder's base with attached wheels and support legs for stability and easy movement.
Connecting the Collection Bag
Slide the 55-liter collection bag into its designated slot at the bottom of the shredder. Ensure it is securely latched in place before operation. The shredder will not operate if the collection bag is not correctly installed.
Figure 3: The 55-liter collection box, which must be securely attached before operation.
4. Bedienungsanleitung
Follow these steps for safe and effective operation of your garden shredder.
Stromanschluss
- Connect the shredder to a suitable 230V power outlet. Ensure the power cord is in good condition and positioned to avoid tripping hazards or damage.
Starten und Stoppen des Aktenvernichters
Das Bedienfeld befindet sich oben auf dem Gerät.

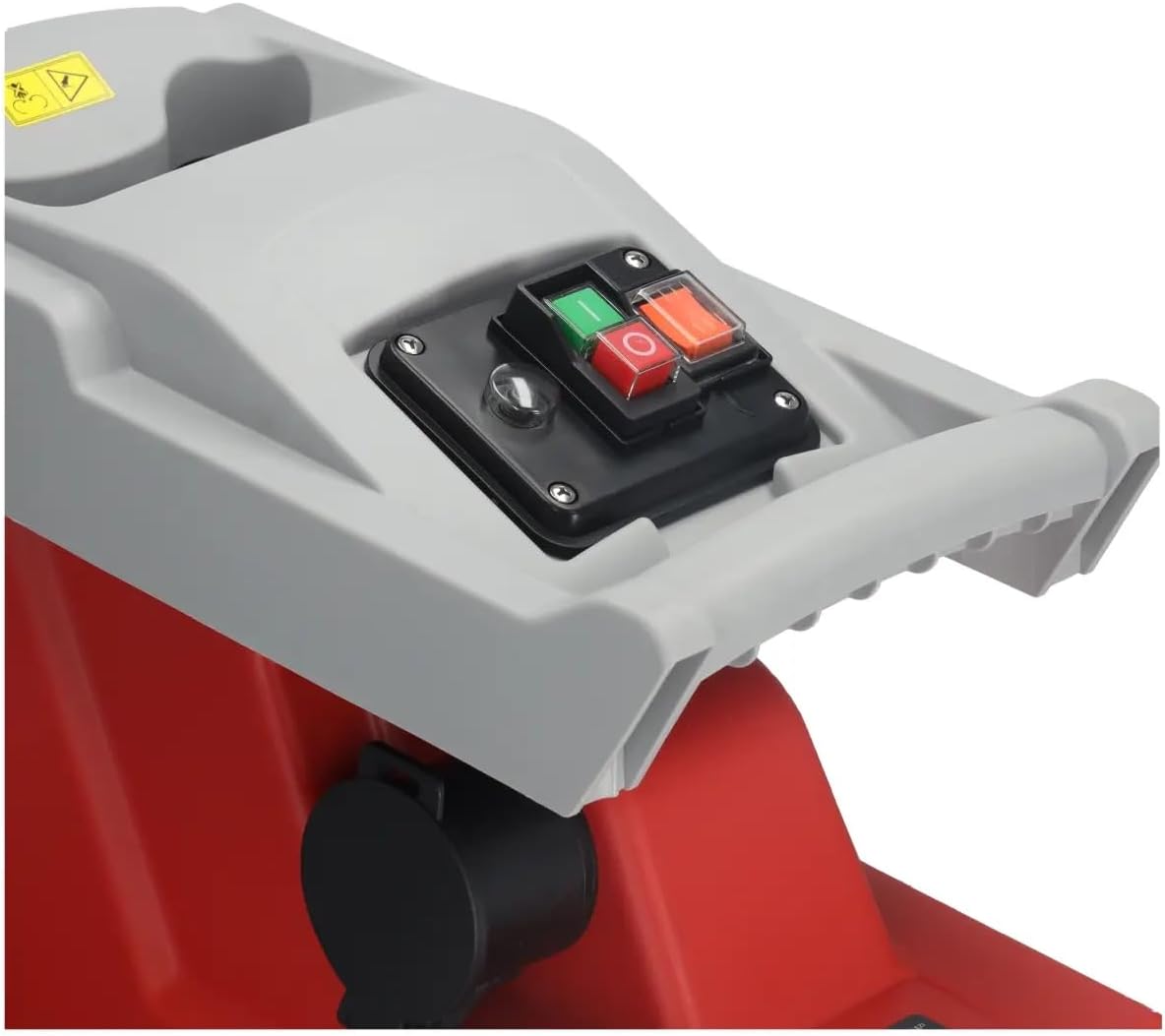

Abbildung 4: Nahaufnahme view of the control panel with ON/OFF buttons.
- To start: Press the green 'ON' button.
- To stop: Press the red 'OFF' button.
Futtermaterial
- Only feed branches and plant material into the shredder. Do not attempt to shred metal, stones, plastic, or other non-organic materials.
- The shredder features an automatic branch feeding mechanism. Insert branches into the feeding chute. The machine will pull them in.
- Do not force material into the chute. Allow the shredder to work at its own pace.
- The maximum branch diameter for this model is 44mm.
Figure 5: A user feeding branches into the shredder's chute.
Reversible Funktion
In case of a jam, the shredder is equipped with a reversible function to clear blockages.
Figure 6: The knob for activating the reversible function to clear jams.
- If the shredder jams, immediately press the red 'OFF' button.
- Turn the reversible function knob to reverse the rotation of the cutting roller. This helps to dislodge stuck material.
- Once the material is cleared, return the knob to the forward position and restart the shredder.
5. Wartung
Regelmäßige Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihres Aktenvernichters.
Reinigung
- Trennen Sie vor der Reinigung immer die Stromversorgung.
- After each use, empty the collection bag.
- Clean the feeding chute and discharge opening of any residual debris using a brush or non-metallic tool.
- Wischen Sie die Außenseite der Maschine mit Werbung abamp Tuch. Verwenden Sie keine scharfen Chemikalien oder Scheuermittel.
Klingeninspektion
- Periodically inspect the cutting roller for wear or damage. Sharp blades are crucial for efficient shredding.
- If blades are dull or damaged, they should be replaced by a qualified service technician.
Lagerung
- Store the shredder in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
- Ensure the collection bag is empty and clean before storage.
6. Fehlerbehebung
In diesem Abschnitt werden häufig auftretende Probleme und deren Lösungen behandelt.
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Der Aktenvernichter startet nicht. |
|
|
| Shredder jams during operation |
|
|
| Schlechte Zerkleinerungsleistung |
|
|
7. Spezifikationen
Technical data for the Dedra DED8682 Electric Garden Shredder.
| Besonderheit | Spezifikation |
|---|---|
| Modellnummer | DED8682 |
| Hersteller | Dedra |
| Leistung | 2800 Watt |
| Bandtage | 230 V |
| AmpAlter | 12 A |
| Max. Astdurchmesser | 44 mm |
| Rotationsgeschwindigkeit | 2950 U/min |
| Fassungsvermögen des Sammelbeutels | 55 Liter |
| Produktabmessungen (L x B x H) | 38 x 52 x 61 cm |
| Gewicht | 28.3 kg |
| Material | Kunststoff, Metall |
| Besonderheit | Compact design, Overload protection, Reversible function |
| Im Lieferumfang enthaltene Komponenten | 1 pusher bar, 1 collection tank, 1 garden shredder |
8. Garantie und Support
Garantieinformationen
The Dedra DED8682 Electric Garden Shredder comes with a 2 Jahr Garantie Die Garantie deckt Herstellungsfehler ab Kaufdatum ab. Bitte bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
Abbildung 7: Produktverpackung mit dem Hinweis auf eine einjährige Garantie.
Die Garantie deckt keine Schäden ab, die durch unsachgemäße Verwendung, Vernachlässigung, nicht autorisierte Reparaturen oder normale Abnutzung verursacht wurden.
Kundenservice
For technical assistance, spare parts, or warranty inquiries, please contact Dedra customer support through their official website or the retailer where the product was purchased. Have your model number (DED8682) and proof of purchase ready when contacting support.
