Hepway P1300 Portable Power Station User Manual

1. Einleitung

This manual provides essential instructions for the safe and efficient operation of your Hepway P1300 Portable Power Station. Please read this manual thoroughly before using the device and retain it for future reference.

The Hepway P1300 is a portable power station equipped with a 1154Wh lithium battery, providing up to 1300W (1500W peak) of pure sine wave AC output. It features multiple output ports, including AC, DC, USB-A, and USB-C, and supports various charging methods such as AC adapter, car charger, and solar panels.

2. Sicherheitshinweise

Beachten Sie die folgenden Sicherheitsvorkehrungen, um Verletzungen oder Schäden am Gerät zu vermeiden:

• Zerlegen, reparieren oder modifizieren Sie das Gerät nicht.
• Avoid exposure to rain, moisture, or immersion in water. The power station is not water-resistant.
• Do not use or store the unit near heat sources, open flames, or in direct sunlight for extended periods.
• Außerhalb der Reichweite von Kindern und Haustieren aufbewahren.
• Sorgen Sie während des Gebrauchs und des Ladevorgangs für ausreichende Belüftung. Blockieren Sie die Belüftungsöffnungen nicht.
• Verwenden Sie ausschließlich zugelassenes Zubehör und Ladekabel.
• If the unit emits unusual odors, heat, or shows other abnormalities, discontinue use immediately and contact support.
• Vermeiden Sie es, das Gerät fallen zu lassen oder starken Stößen auszusetzen.
• Dispose of the unit and its battery according to local regulations.

3. Packungsinhalt

Prüfen Sie, ob alle Artikel in Ihrem Paket enthalten sind:

• 1x Hepway P1300 Portable Power Station
• 1x Netzteil
• 1x Car Charger to XT60 Cable
• 1x MC4 to XT60 Cable (for solar charging)
• 1x Benutzerhandbuch

4. Produktüberschreitungview

4.1. Unit Diagram

The image below illustrates the main components and ports of the Hepway P1300 Portable Power Station.

Abbildung 1: Vorne und seitlich view of the Hepway P1300 Portable Power Station with labels indicating the LCD display, 8mm input, XT60 solar charging port, Refrigerator Mode button, USB-A fast charge ports, USB output, Car port, USB-C PD3.0 port, AC output ports, and LED lamp.

4.2. LCD-Anzeige

Das LCD-Display liefert Echtzeitinformationen über den Status des Kraftwerks.

Abbildung 2: Detaillierte view of the LCD display. Key indicators include (1) Charging Status, (2) Work Mode, (3) Remained Time, (4) Battery Level Indicator, (5) Output Power, (6) Input Power, (7) Discharge Mode, (8) Fault Code, and (9) Fan Status.

5. Einrichtung und Erstgebrauch

5.1. Erstes Aufladen

Before first use, it is recommended to charge the Hepway P1300 to at least 90%. This helps to calibrate the battery management system and optimize battery performance. If you observe rapid power consumption initially, perform 2-3 full charge-discharge cycles to normalize battery capacity.

5.2. Geräte anschließen

Ensure the power station is turned on before connecting any devices. Plug your devices into the appropriate output ports (AC, DC, USB-A, USB-C).

6. Bedienungsanleitung

6.1. Ein-/Ausschalten

Press and hold the main power button to turn the unit on or off. Individual output sections (AC, DC, USB) may have their own power buttons.

6.2. Nutzung von Wechselstromsteckdosen

The P1300 provides 4 AC 120V pure sine wave outlets, capable of delivering up to 1300W continuously (1500W peak). Connect appliances that require standard household power.

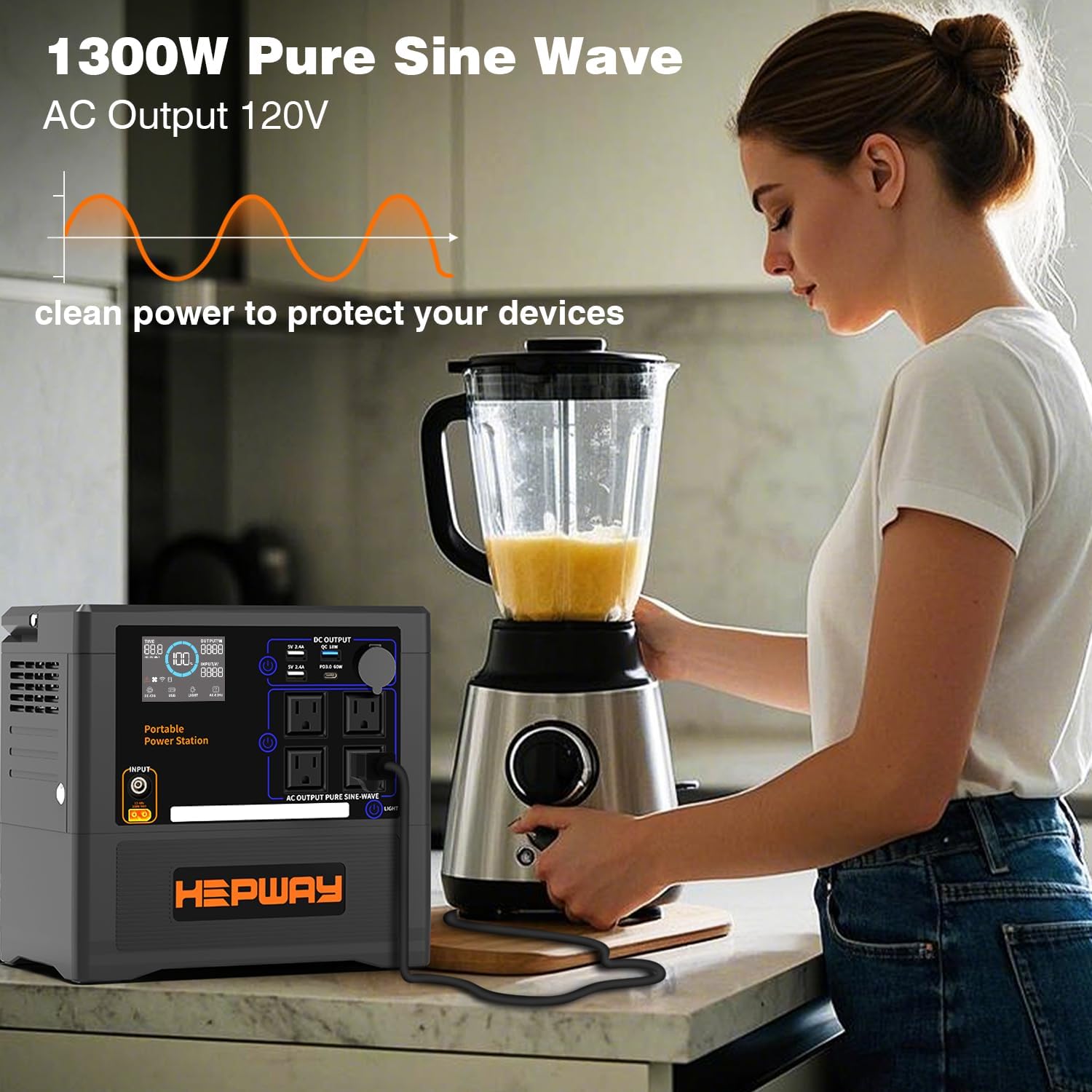

Abbildung 3: The Hepway P1300 providing stable 120V AC power for a blender, demonstrating its pure sine wave output suitable for sensitive electronics.

6.3. Verwendung von Gleichstrom- und USB-Ausgängen

The unit includes:

• USB-A-Anschlüsse: Two 5V/2.4A ports and one fast charge QC3.0 (18W) port.
• USB-C PD3.0 Port: One 60W Power Delivery port.
• Autohafen: One DC12V, Max 10A port.

Abbildung 4: The Hepway P1300 simultaneously powering a blender, a portable speaker, and other devices using its various output ports, including AC, USB-C, USB-A, and a car outlet.

6.4. Refrigerator Mode

The P1300 features a dedicated 'Refrigerator Mode' designed for low-wattage devices requiring continuous power, such as refrigerators, CPAP machines, aquariums, or pet feeders. This mode optimizes power delivery for these specific applications.

Abbildung 5: The Hepway P1300 operating in Refrigerator Mode, providing power to a CPAP machine, ensuring continuous operation for essential devices.

To activate Refrigerator Mode, locate the dedicated button on the side of the unit. The display text will change between "saving" and "normal" in response to the button position. While the 'Refrigerator Mode' icon may not always be displayed, the functionality is active when the corresponding setting is selected.

6.5. Aufladen der Powerstation

The P1300 supports multiple charging methods:

• Aufladen mit Netzteil: Connect the provided AC adapter to a wall outlet. Max 180W, approximately 6.5 hours for a full charge.
• Aufladen im Auto: Use the Car Charger to XT60 Cable to charge from your vehicle's 12V outlet. Approximately 15 hours for a full charge.
• Solarladung: Connect compatible solar panels (18V-43V, 300W MAX) using the MC4 to XT60 Cable. The built-in MPPT controller optimizes charging efficiency. Approximately 4 hours for a full charge with optimal solar input.

Abbildung 6: Illustration of the three primary charging methods: AC adapter for home charging, solar panels for outdoor charging, and a car charger for on-the-go power replenishment.

Abbildung 7: The Hepway P1300 connected to a solar panel for efficient solar charging, highlighting its compatibility with various solar setups.

7. Wartung

7.1. Batteriepflege

To ensure optimal performance and longevity of the lithium battery:

• Recharge the unit promptly when the battery level drops below 20%.
• For long-term storage, maintain the battery level between 50% and 80%.
• Regularly discharge the battery to 20% and then charge to 80-90%. Operating the battery consistently below 20% or above 90% can reduce its lifespan due to increased heat generation in these ranges.

7.2. Speicherung

Store the power station in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the unit is clean and free of dust. Recharge every 3-6 months if stored for extended periods to prevent deep discharge.

8. Fehlerbehebung

• Gerät lässt sich nicht einschalten: Ensure the battery is charged. If completely depleted, connect to an AC power source for a few minutes before attempting to power on.
• Keine Ausgabe von den Ports: Verify that the specific output section (AC, DC, USB) is activated. Check the LCD display for any fault codes. Ensure the connected device's power consumption does not exceed the port's or unit's maximum output.
• Refrigerator Mode Icon Not Displaying: While the icon may not always be visible, the mode is active if the side button changes the display text between "saving" and "normal."
• Langsamer Ladevorgang: Check that the charging cable and adapter are securely connected. For solar charging, ensure panels are in direct sunlight and correctly angled. Verify solar panel specifications (18V-43V, 300W MAX).
• Überlastschutz: If the unit shuts down due to overload, disconnect the high-power device, wait a few minutes, and then restart the power station.

9. Spezifikationen

10. Garantie und Support

10.1. Garantieinformationen

The Hepway P1300 Portable Power Station comes with a 2 Jahr HerstellergarantieBitte bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.

10.2. Kundendienst

For technical assistance, warranty inquiries, or any questions not covered in this manual, please contact Hepway customer support through the retailer's platform or the official Hepway webWebsite.
