Hepway H30 Portable Power Station User Manual

1. Einleitung

The Hepway H30 Portable Power Station is a versatile and reliable power solution designed for various applications, including outdoor activities, emergency backup, and home use. Equipped with a durable LiFePO4 battery, it provides stable and efficient power to charge and operate a wide range of electronic devices and small appliances.

2. Lieferumfang

Upon unboxing your Hepway H30 Portable Power Station, you will find the following items:

• Hepway H30 Portable Power Station
• AC Wall Charger Adapter
• Car Charger Cable (DC charging kit)
• Bedienungsanleitung

Image: The Hepway H30 Portable Power Station displayed with its AC wall charger adapter, car charger cable, and instruction manual.

3. Produktüberschreitungview

The Hepway H30 is designed for portability and ease of use, featuring a compact form factor and a clear display. It incorporates a robust ABS flame-retardant anti-leakage enclosure and dual silent fans for efficient cooling.

3.1. Schlüsselkomponenten

• Tragbarer Griff: Integriert für einfachen Transport.
• HD-LCD-Bildschirm: Zeigt den Batterieprozentsatz antage, Eingangs-/Ausgangswassertage, and remaining usage time.
• Dual Silent Fans: Ensures efficient heat dissipation with minimal noise.
• ABS Flame-retardant Anti-leakage Enclosure: Provides durability and safety.

Bild: Eine detaillierte view highlighting the portable handle, dual silent fans, ABS flame-retardant enclosure, and the HD LCD screen of the Hepway H30.

3.2. Ausgangsports

The H30 offers a variety of output ports to accommodate different devices:

• 2 x AC 120V Outlets: Für Standard-Haushaltsgeräte (bis zu 300 W Dauerleistung, 500 W Spitzenleistung).
• 2 x USB-C-Anschlüsse: One PD 100W for fast charging laptops and other compatible devices, and one PD 20W.
• 2 x USB-A-Anschlüsse: QC 18W for quick charging smartphones and tablets.
• 2 x DC5525-Anschlüsse: DC 12V 10A for compatible DC devices.

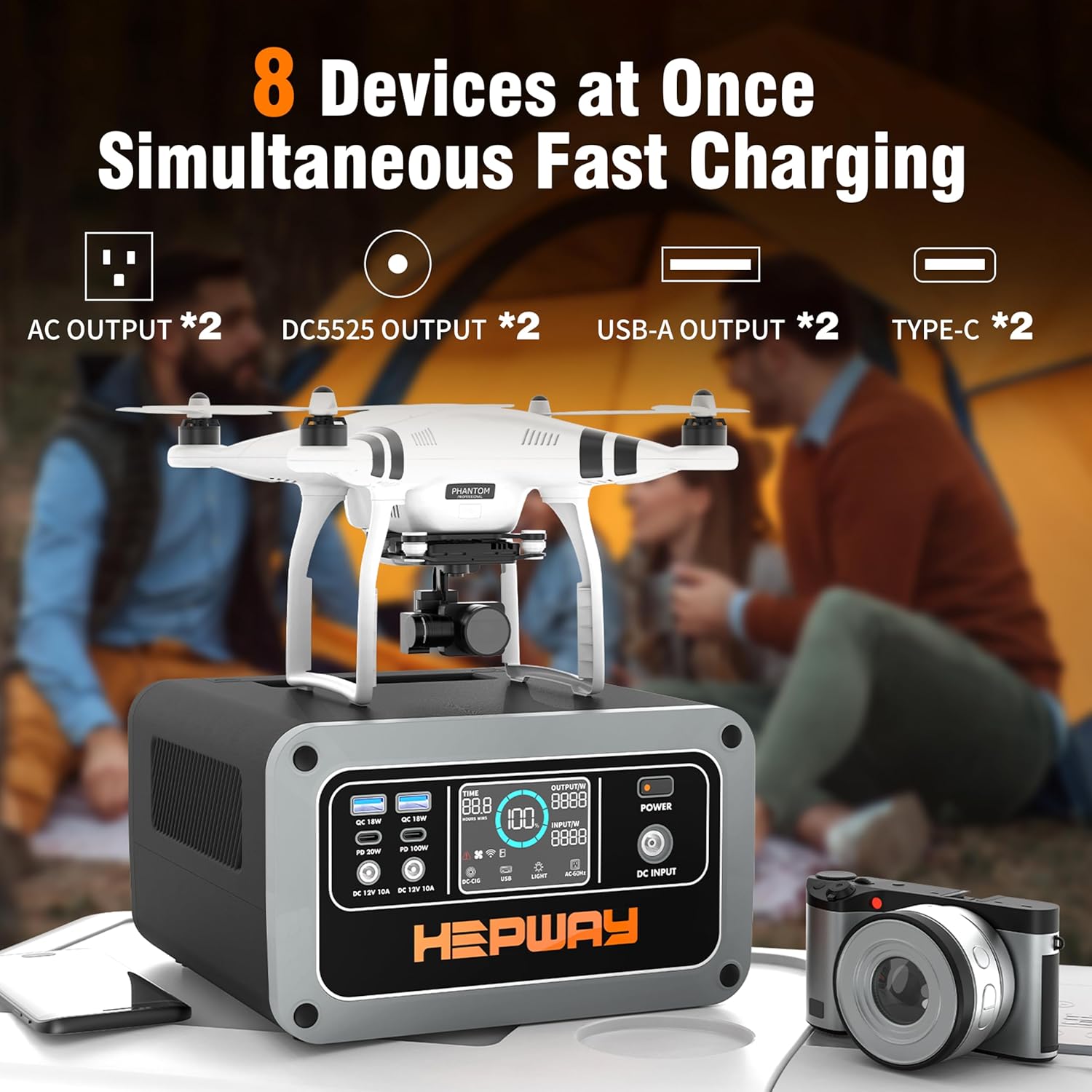

Image: The Hepway H30 with labels indicating its 8 output ports, including AC, DC5525, USB-A, and USB-C, designed for simultaneous fast charging.

4. Charging the Hepway H30

The H30 Portable Power Station can be recharged using three primary methods:

• AC-Steckdose: Use the provided AC adapter to charge the unit from a standard wall socket. A full charge takes approximately 5 hours.
• Autoladegerät: Utilize the included car charger cable to recharge the H30 from your vehicle's 12V DC outlet while driving. A full charge takes approximately 5 hours.
• Solarpanel (separat erhältlich): Connect a compatible solar panel to the DC input port for eco-friendly charging using sunlight. A full charge takes approximately 5 hours, depending on solar intensity.

Image: Visual representation of the three ways to recharge the Hepway H30: via car charger, AC wall outlet, and a solar panel.

5. Battery Technology (LiFePO4)

The Hepway H30 utilizes advanced LiFePO4 (Lithium Iron Phosphate) battery technology, offering significant advantages over traditional lithium-ion polymer (LiPo) batteries:

• Verlängerte Lebensdauer: LiFePO4 batteries provide over 3500 charge cycles, translating to a lifespan of more than 10 years with daily use, significantly longer than LiPo batteries (typically 300-400 cycles).
• Erhöhte Sicherheit: Integrated BMS (Battery Management System) ensures safer operation by monitoring temperature and preventing overcharge/discharge.
• Temperaturtoleranz: LiFePO4 cells perform reliably across a wider range of temperatures, making them suitable for diverse outdoor conditions (hot or cold).
• Stable Charge Retention: Maintains charge levels for longer periods when not in use, reducing the need for frequent topping off.

Image: An infographic highlighting the benefits of LiFePO4 battery technology, including a 6x longer lifespan, enhanced safety with BMS, and over 3500 charge cycles.

6. Operating the Hepway H30

To operate the Hepway H30, ensure it is adequately charged. The LCD screen provides real-time information on battery status, input/output power, and estimated remaining usage time.

6.1. Ein-/Ausschalten

• Press and hold the main POWER button to turn the unit on or off.
• Individual output sections (AC, DC, USB) may have separate power buttons or automatic activation upon device connection.

6.2. Nutzung von Wechselstromsteckdosen

• Locate the 2 AC 120V outlets on the back of the unit.
• Plug in your AC-powered devices (e.g., small appliances, CPAP machines) into these outlets.
• Stellen Sie sicher, dass das Gesamtwasser vorhanden isttage of connected devices does not exceed 300W (500W peak).

6.3. Verwendung von Gleichstromsteckdosen

• The H30 features 2 DC5525 ports (12V 10A).
• These ports can be used with compatible DC devices or with adapters (sold separately) to convert to other DC formats, such as a car-style DC outlet.

6.4. Verwendung von USB-Anschlüssen

• USB-A (QC 18W): Connect smartphones, tablets, and other USB-A compatible devices for fast charging. The ports intelligently detect the device to optimize charging speed.
• USB-C (PD 100W & PD 20W): Use the Power Delivery (PD) USB-C ports for rapid charging of laptops, modern smartphones, and other USB-C PD compatible devices.

7. LED-Lichtmodi

The Hepway H30 includes a built-in LED light with multiple modes for convenience in various situations:

• SOS-Modus: Sendet in Notfällen ein SOS-Signal aus.
• Atemmodus: A gentle, pulsating light effect.
• Blinkmodus: A steady flashing light for visibility.
• Dimmmodus: Low brightness for ambient lighting.
• Heller Modus: High brightness for maximum illumination.

Image: The Hepway H30 showcasing its five distinct LED light modes, offering versatile illumination options.

8. Spezifikationen

9. Sicherheitshinweise

Please read and understand all safety instructions before using the Hepway H30 Portable Power Station to prevent injury or damage to the unit:

• Zerlegen, reparieren oder modifizieren Sie das Gerät nicht.
• Halten Sie das Gerät von Feuer, Wasser und extremen Temperaturen fern.
• Vermeiden Sie es, das Gerät fallen zu lassen oder starken Stößen auszusetzen.
• Verwenden Sie ausschließlich zugelassenes Zubehör und Ladekabel.
• Sorgen Sie während der Verwendung und des Ladevorgangs für ausreichende Belüftung.
• Außerhalb der Reichweite von Kindern aufbewahren.

10. Fehlerbehebung

If you encounter issues with your Hepway H30, refer to the following common troubleshooting steps:

• Gerät lässt sich nicht einschalten: Ensure the battery is charged. Connect to an AC outlet for at least 30 minutes.
• Gerät wird nicht geladen: Verify the output port is active. Check the cable connection and ensure the device's power requirements do not exceed the port's or unit's maximum output.
• Langsamer Ladevorgang: Confirm the device is compatible with Quick Charge (QC) or Power Delivery (PD) standards if using those ports. Some devices may charge slower if not compatible.
• Überlastschutz: If the unit shuts down, it may be due to an overload. Disconnect devices, restart the unit, and connect devices with lower power consumption.

Bei anhaltenden Problemen wenden Sie sich bitte an den Kundendienst.

11. Garantie und Support

The Hepway H30 Portable Power Station comes with a 5 Jahr Garantie, ensuring peace of mind for your purchase. For any questions, technical assistance, or warranty claims, please refer to the contact information provided in your instruction manual or visit the official Hepway webWebsite.
