Mercusys MA72XH WiFi 6 AX1800 USB Adapter User Manual

Einführung

The Mercusys MA72XH is a high-performance Wi-Fi 6 AX1800 USB adapter designed to provide fast and stable wireless connectivity for your desktop or laptop computer. Featuring dual-band support, USB 3.0 interface, and advanced security protocols like WPA3, this adapter enhances your online experience for streaming, gaming, and video calls. This manual provides detailed instructions for the proper installation, operation, and maintenance of your MA72XH adapter.

Packungsinhalt

Überprüfen Sie, ob Ihr Paket die folgenden Artikel enthält:

• 1 x Mercusys MA72XH AX1800 High-Performance Dual-Band Wireless USB Adapter
• 1 x Schnellinstallationsanleitung

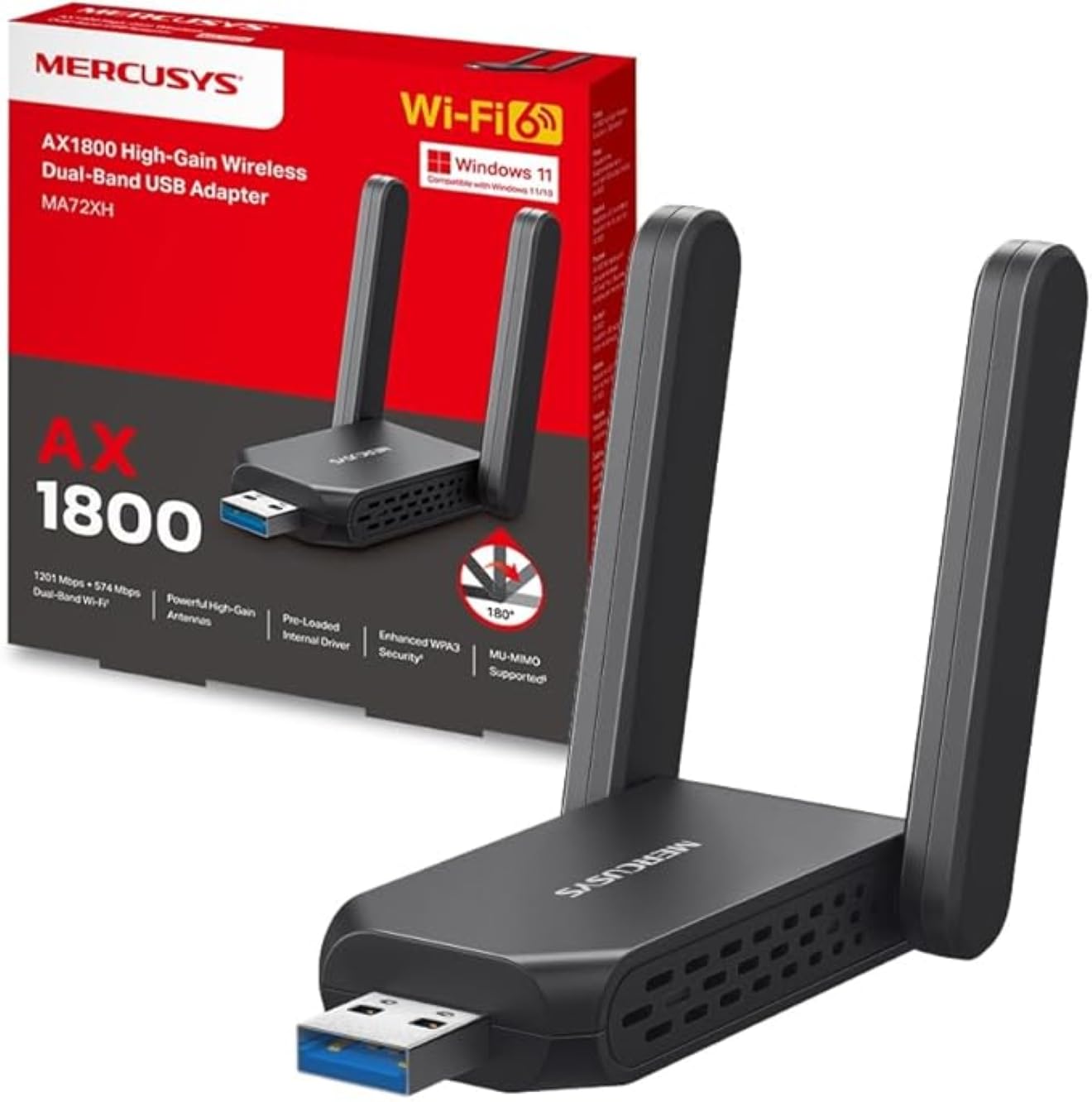

Image: The Mercusys MA72XH WiFi 6 AX1800 USB Adapter, showcasing its compact design and two adjustable external antennas.

Produkteigenschaften

• Hochgeschwindigkeits-Dualband-WLAN: Achieves speeds up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, supported by two high-performance antennas.
• Preloaded Internal Driver: Offers simple plug-and-play installation for most Windows 10/11 systems, eliminating the need for manual driver downloads in many cases.
• MU-MIMO-Technologie: Enables the adapter to communicate with multiple devices simultaneously, reducing latency and improving overall network efficiency.
• Enhanced WPA3 Security: Utilizes the latest Wi-Fi security standard to provide robust protection for your network and personal data against unauthorized access.
• USB 3.0-Schnittstelle: Ensures superior data transfer speeds, optimizing performance for high-definition streaming, online gaming, and large file transfers when paired with Wi-Fi 802.11ax.
• Breite Kompatibilität: Vollständig kompatibel mit den Betriebssystemen Windows 10 und Windows 11.

Installationshandbuch

Follow these steps to install your Mercusys MA72XH WiFi adapter:

1. Setzen Sie den Adapter ein: Plug the MA72XH adapter into an available USB 3.0 port on your desktop or laptop computer. For optimal performance, use a USB 3.0 port (often blue inside).
2. Treiberinstallation:
   • Automatische Installation: In most cases, Windows 10 or 11 will automatically detect the adapter and install the necessary drivers from its preloaded internal memory. Wait for a notification indicating successful driver installation.
   • Manuelle Installation (falls erforderlich): If the driver does not install automatically, or if you encounter issues, you may need to download the latest drivers from the official Mercusys support website. Insert the adapter, then navigate to the Mercusys support page for the MA72XH model, download the driver, and follow the on-screen instructions for installation.
3. Antennen anpassen: Position the two external antennas for optimal signal reception. Generally, pointing them upwards or slightly angled can improve performance.
4. Mit dem Wi-Fi-Netzwerk verbinden:
   • Once the driver is installed, click the Wi-Fi icon in your computer's system tray (usually in the bottom-right corner).
   • Wählen Sie das gewünschte WLAN-Netzwerk aus der Liste der verfügbaren Netzwerke aus.
   • Geben Sie gegebenenfalls den Netzwerksicherheitsschlüssel (das Passwort) ein und klicken Sie anschließend auf „Verbinden“.

Your Mercusys MA72XH adapter should now be connected to your wireless network.

Bedienungsanleitung

The Mercusys MA72XH operates as a standard Wi-Fi adapter once installed.

• Verbinden/Trennen: Manage your Wi-Fi connections through the standard Windows network settings. Click the Wi-Fi icon in the system tray to view available networks, connect to a new one, or disconnect from an existing one.
• Dualband-Betrieb: The adapter automatically selects the optimal band (2.4 GHz or 5 GHz) based on network conditions and router capabilities. If your router broadcasts separate SSIDs for each band, you can manually choose to connect to the 5 GHz network for higher speeds or the 2.4 GHz network for better range.
• MU-MIMO Benefits: When connected to a MU-MIMO compatible router, the MA72XH can process data streams to and from multiple devices simultaneously, leading to more efficient network usage and reduced buffering, especially in busy network environments.

Wartung

To ensure the longevity and optimal performance of your MA72XH adapter:

• Treiber-Updates: Überprüfen Sie regelmäßig die offizielle Mercusys-Website. website for the latest driver updates. Keeping your drivers current can improve performance, stability, and security.
• Körperliche Pflege: Keep the adapter clean and free from dust. Avoid exposing it to extreme temperatures, humidity, or direct sunlight. Do not attempt to disassemble the device.
• Antennenplatzierung: Ensure the antennas are not obstructed and are positioned for the best possible signal reception. Avoid placing the adapter near large metal objects or other electronic devices that may cause interference.
• Sichere Verbindung: Always ensure the adapter is firmly seated in the USB port to prevent intermittent connections.

Fehlerbehebung

If you encounter issues with your Mercusys MA72XH adapter, refer to the following common solutions:

1. Keine Wi-Fi-Verbindung:
   • Stellen Sie sicher, dass der Adapter fest an einen funktionierenden USB-Anschluss angeschlossen ist. Versuchen Sie es mit einem anderen USB-Anschluss.
   • Überprüfen Sie, ob WLAN in den Einstellungen Ihres Computers aktiviert ist.
   • Check if the adapter's driver is correctly installed in Device Manager (Windows Key + X > Device Manager > Network adapters). If there's a yellow exclamation mark, reinstall the driver.
   • Restart your computer and your Wi-Fi router.
2. Langsame WLAN-Geschwindigkeit:
   • Ensure you are connected to the 5 GHz band if available and your router supports it, as it generally offers higher speeds.
   • Move closer to your Wi-Fi router or adjust the adapter's antennas for better signal strength.
   • Prüfen Sie, ob Störungen durch andere elektronische Geräte (z. B. Mikrowellen, schnurlose Telefone) auftreten.
   • Aktualisieren Sie die Treiber Ihres Adapters auf die neueste Version.
3. Häufige Verbindungsabbrüche:
   • Ensure the adapter is not loose in the USB port.
   • Disable any power-saving features for the USB port in Device Manager (right-click the adapter > Properties > Power Management tab, uncheck "Allow the computer to turn off this device to save power").
   • Aktualisieren Sie die Firmware Ihres Routers.
   • Try connecting to a different Wi-Fi channel on your router to avoid congestion.
4. Treiberinstallationsfehler:
   • Deaktivieren Sie die Antivirensoftware vorübergehend während der Treiberinstallation.
   • Download the driver directly from the Mercusys official website and run the installer as an administrator.
   • Stellen Sie sicher, dass Ihr Windows-Betriebssystem auf dem neuesten Stand ist.

Technische Daten

Garantie und Support

For warranty information and technical support, please refer to the official Mercusys website or the documentation included with your product. You can typically find support resources, FAQs, and contact information by visiting www.mercusys.com/support and searching for your model (MA72XH).
