FOSSIBOT F110L Rugged Smartphone User Manual

1. Einleitung

This manual provides essential information for the safe and efficient use of your FOSSIBOT F110L rugged smartphone. Please read it thoroughly before operating the device.

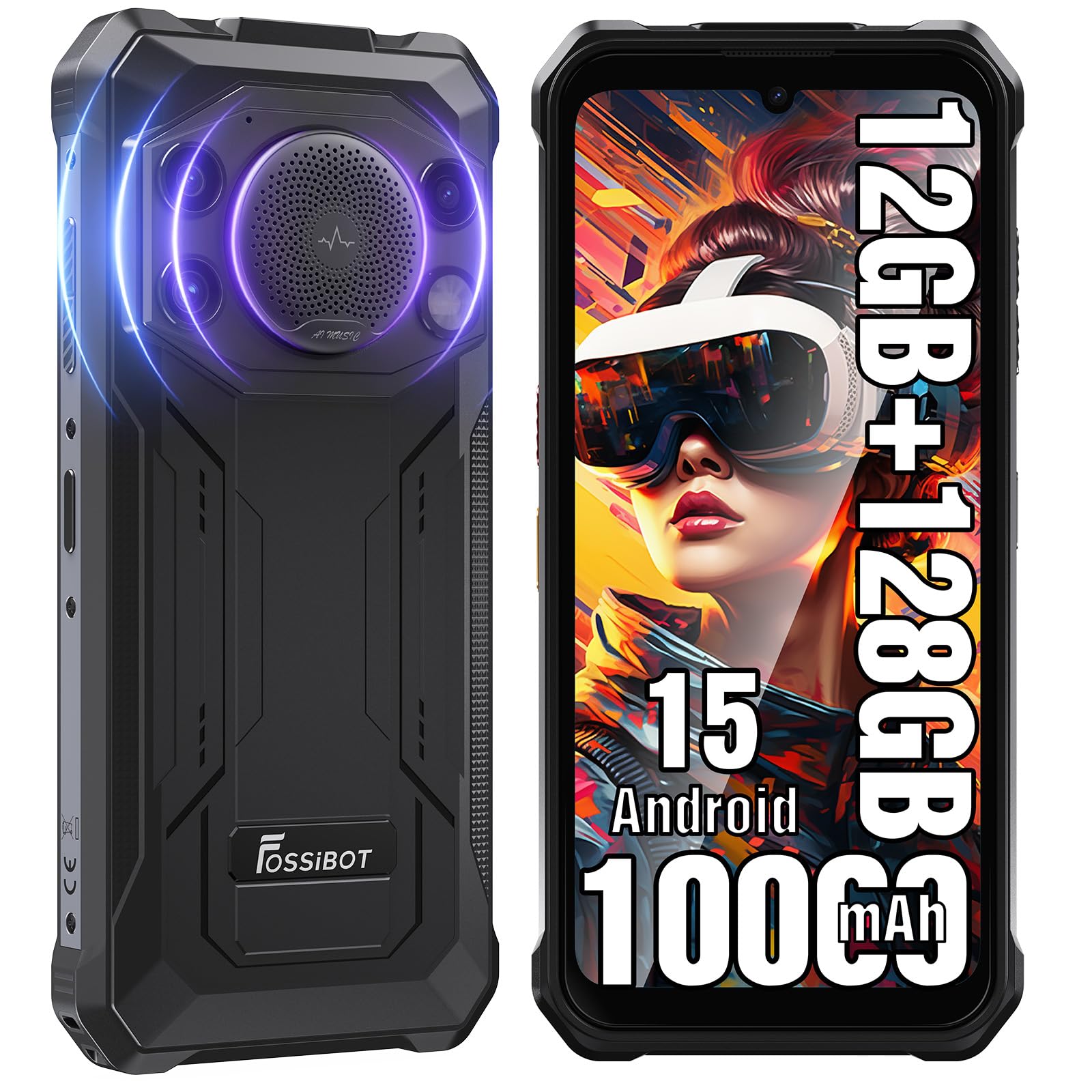

Image 1: FOSSIBOT F110L Rugged Smartphone, front and back view.

Hauptmerkmale vorbeiview

• Massiver 10000mAh Akku: Offers extended usage with 20W fast charging and OTG reverse charging capabilities.
• Extrem langlebig: IP68 & IP69K rated for dust and water resistance, and MIL-STD-810H certified for drop protection.
• Loud Stereo Speaker: 128dB high-output speaker for clear audio in noisy environments.
• Advanced Triple Camera System: Features a 50MP main camera, 8MP front camera, and 5MP macro camera.
• Reibungslose Leistung: Powered by an Octa-Core UMS T615 processor with 12GB RAM (4GB physical + 8GB virtual) and Android 15 OS.
• Konnektivität: Supports Dual 4G SIM, NFC, and features face & side fingerprint unlock.

2. Einrichtung

2.1 Auspacken und Packungsinhalt

Carefully unpack your FOSSIBOT F110L smartphone and verify all contents. The standard package includes:

• Rugged Smartphone x 1
• Ladegerät x 1
• 1 x USB-Kabel
• TP Screen Protector (Pre-applied) x 1
• SIM Card Ejector x 1
• Benutzerhandbuch x 1
• Verpackungsbox x 1

Image 2: Contents of the FOSSIBOT F110L standard package.

2.2 Installation der SIM-Karte und des Speichers

The FOSSIBOT F110L supports Dual 4G SIM (nano + nano) or one nano SIM with a TF card (up to 2TB). Use the provided SIM ejector tool to open the SIM tray.

1. Suchen Sie den SIM-Karten-Einschub an der Seite des Geräts.
2. Führen Sie das SIM-Auswurfwerkzeug in die kleine Öffnung neben dem Fach ein und drücken Sie vorsichtig, bis das Fach herausspringt.
3. Legen Sie Ihre Nano-SIM-Karte(n) und/oder Ihre TF-Karte in die dafür vorgesehenen Schlitze des Kartenfachs ein. Achten Sie auf die richtige Ausrichtung.
4. Schieben Sie die Ablage vorsichtig wieder in das Gerät hinein, bis sie bündig mit der Seite abschließt.

Image 3: Illustration of SIM and MicroSD card installation.

2.3 Erstes Aufladen und Einschalten

Before first use, fully charge your FOSSIBOT F110L. Use the provided charger and USB cable.

1. Connect the USB cable to the charger and then to the phone's USB Type-C port.
2. Stecken Sie das Ladegerät in eine Steckdose.
3. Once fully charged, press and hold the power button (located on the side) until the FOSSIBOT logo appears.
4. Follow the on-screen prompts to complete the initial setup of Android 15.

Image 4: The FOSSIBOT F110L connected to a charger via USB-C.

3. Bedienungsanleitung

3.1 Android 15 Betriebssystem

Your FOSSIBOT F110L runs on Android 15, offering optimized performance, enhanced privacy, and an improved user experience. Navigate using touch gestures, access apps from the home screen or app drawer, and customize settings via the notification panel.

Image 5: The FOSSIBOT F110L displaying the Android 15 interface.

3.2 Kameranutzung

The F110L features a versatile triple camera system:

• 50MP Hauptkamera: For high-resolution photos with F1.8 aperture and PDAF.
• 8MP Frontkamera: Ideal for selfies and video calls with beautification features.
• 5-Megapixel-Makrokamera: Für detaillierte Nahaufnahmen.

Access various modes like Night, AI Scene, Portrait, Pro, and Underwater Camera Mode through the camera application.

Image 6: The FOSSIBOT F110L's 50MP AI Main Camera capturing a landscape.

Abbildung 7: Beispielamples of photos taken with the 8MP front camera and 5MP macro camera.

Image 8: The FOSSIBOT F110L being used in Underwater Camera Mode.

3.3 Speaker Functionality

The F110L is equipped with a 128dB high-output stereo speaker, providing clear and loud audio for calls, music, and navigation, even in noisy environments.

Image 9: Diagram illustrating the FOSSIBOT F110L's powerful 128dB speaker.

3.4 Flashlight Usage

The device includes a high-brightness lamp, functioning as a 120 Lumen flashlight. This feature is useful for outdoor adventures, construction sites, and emergency situations.

Image 10: The FOSSIBOT F110L's high-brightness lamp in use during various outdoor activities.

3.5 Akku und Aufladen

The FOSSIBOT F110L is equipped with a 10000mAh battery. It supports 20W fast charging, allowing it to reach 80% charge in approximately 3 hours. The unique OTG reverse charging feature enables the phone to act as a power bank for other devices.

Image 11: Visual representation of the 10000mAh battery and 20W fast charging capability.

Image 12: The FOSSIBOT F110L utilizing its reverse charging feature to power another device.

3.6 Merkmale der Langlebigkeit

The F110L is built to withstand harsh environments:

• Schutzarten IP68 und IP69K: Provides complete 360° dust resistance and can survive submersion in 1.5 meters of water for 30 minutes.
• MIL-STD-810H-zertifiziert: Withstands drops from up to 1.5 meters, shocks, and vibrations.

Image 13: Visual demonstration of the FOSSIBOT F110L's MIL-STD-810H drop resistance, IP68 waterproof, and IP69K dustproof ratings.

3.7 Konnektivität und Sicherheit

The F110L supports NFC for quick payments and features both face recognition and a side-mounted fingerprint sensor for secure unlocking.

Image 14: The FOSSIBOT F110L's side fingerprint unlock and face recognition features.

3.8 Software Toolbox

The F110L includes a software toolbox with various utility applications such as Compass, Gradlenter, Sound Meter, Magnifier, Protractor, Plumb Bob, Warning, Height Measure, and Torch. It also features a customizable button for quick access to frequently used apps or functions.

Image 15: The FOSSIBOT F110L's software toolbox interface and customizable button.

4. Wartung

4.1 Reinigung Ihres Geräts

To maintain your FOSSIBOT F110L, wipe it with a soft, damp Verwenden Sie kein Tuch. Vermeiden Sie die Verwendung von scharfen Chemikalien oder scheuernden Materialien, die den Bildschirm oder die Oberfläche beschädigen könnten.asing. For stubborn dirt, especially after exposure to mud or sand, rinse the device under clean water, ensuring all ports are securely closed, then dry thoroughly.

4.2 Water and Dust Resistance Care

While the F110L is IP68/IP69K rated, proper care is essential:

• Ensure all port covers (USB-C, SIM tray) are firmly sealed before exposing the phone to water or dust.
• Tauchen Sie das Telefon nicht absichtlich in Wasser tiefer als 1.5 Meter oder länger als 30 Minuten ein.
• Avoid exposing the phone to high-pressure water jets or hot water, as this can compromise seals.
• If the phone gets wet, dry it completely before charging or opening any ports.

5. Fehlerbehebung

5.1 Häufige Probleme und Lösungen

• Gerät lässt sich nicht einschalten: Stellen Sie sicher, dass der Akku geladen ist. Schließen Sie das Gerät mindestens 15 Minuten lang an das Ladegerät an, bevor Sie es erneut einschalten.
• Schlechte Akkulaufzeit: Close unused apps, reduce screen brightness, disable unnecessary features like GPS or Wi-Fi when not in use. Check for background app activity in settings.
• Probleme mit der Netzwerkverbindung: Verify your SIM card is correctly inserted. Check your carrier's signal strength. Ensure your device is compatible with your carrier's bands (e.g., T-Mobile 4G LTE bands B2, B4, B5, B12, B66, B71 in the US).
• SD-Karte nicht erkannt: Ensure the TF card is correctly inserted into the designated slot. Some models may use the second SIM slot for TF cards. Reformat the card if necessary (this will erase data).
• Speaker volume too low/distorted: Check volume settings. Ensure the speaker grille is not obstructed by debris.
• Bildschirm reagiert nicht: Starten Sie das Gerät neu. Sollte das Problem weiterhin bestehen, setzen Sie das Gerät auf die Werkseinstellungen zurück (sichern Sie vorher Ihre Daten).

5.2 Videoanleitung

For a visual guide on key features and durability, please watch the official product video:

Video 1: Official FOSSiBOT F110L Rugged Smartphone overview, demonstrating features like the speaker, flashlight, durability, and camera.

6. Spezifikationen

7. Garantieinformationen

The FOSSIBOT F110L comes with a 12-month manufacturer's warranty. Please retain your proof of purchase for any warranty claims. For detailed terms and conditions, refer to the warranty card included in your package or contact FOSSIBOT customer support.

8. Unterstützung

For further assistance, technical support, or service inquiries, please visit the official FOSSIBOT website or contact their customer service department. Contact information can typically be found on the FOSSIBOT brand store page or in the included documentation.
