Shadowhawk S1969 LED Rechargeable Tactical Torch User Manual

1. Einleitung

Thank you for choosing the Shadowhawk S1969 LED Rechargeable Tactical Torch. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new device. Please read it thoroughly before use and retain it for future reference.

The Shadowhawk S1969 is a high-performance LED torch designed for various applications, including camping, hiking, outdoor activities, and emergency situations. It features an advanced XHM90.2 LED chip, dual switch operation, an LCD battery display, and a robust IP67 waterproof and dustproof design.

Image: The Shadowhawk S1969 LED Tactical Torch demonstrating its powerful beam, illuminating a distant area up to 1000 meters.

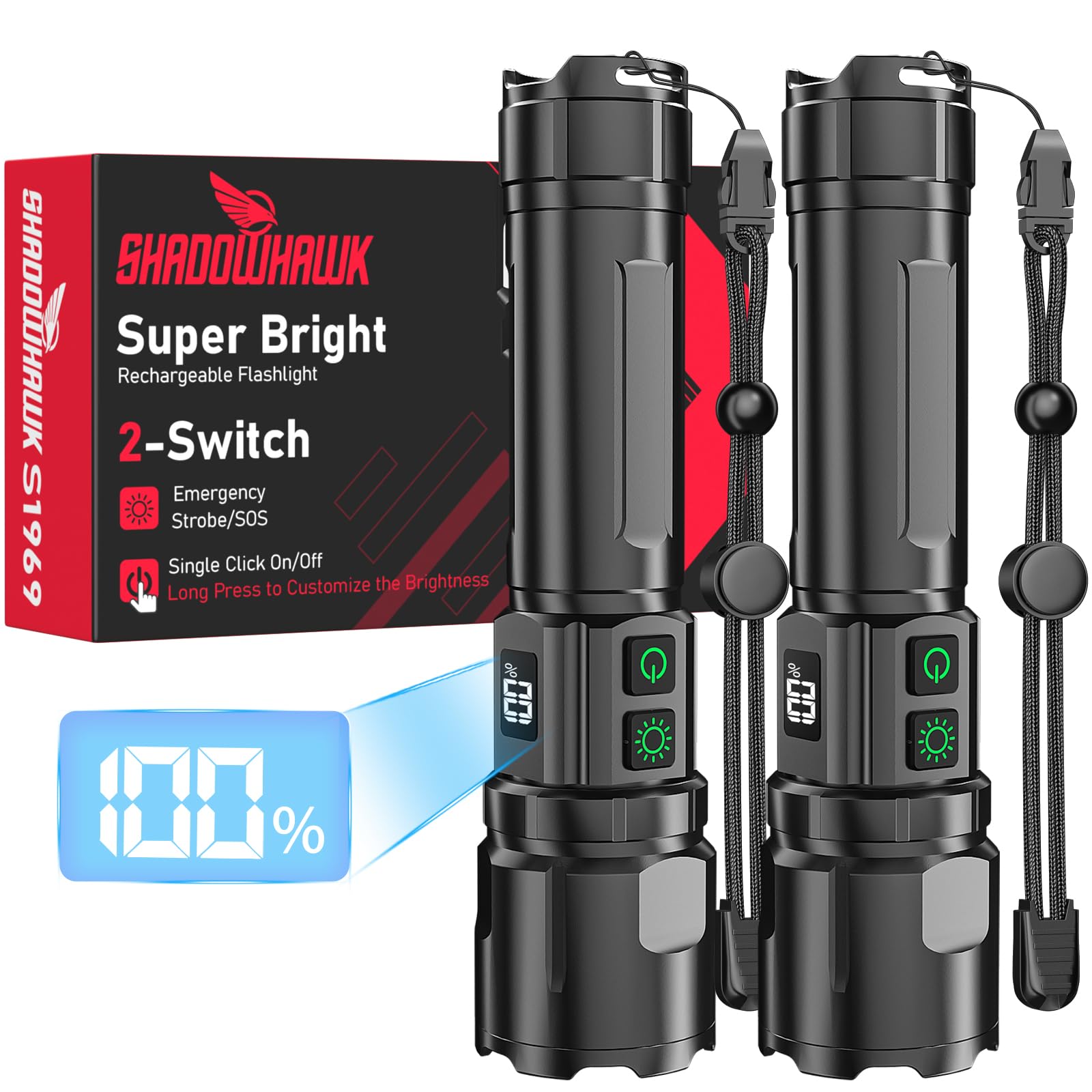

2. Packungsinhalt

Bitte überprüfen Sie beim Auspacken, ob alle unten aufgeführten Artikel vorhanden und in gutem Zustand sind:

• 2 x Shadowhawk S1969 Tactical Torches
• 2 x 6000 mAh Powerful Lithium Ion Batteries
• 2 x USB-C-Ladekabel
• 2 x Schlüsselband.
• 1 x Benutzerhandbuch (dieses Dokument)

Image: Two individuals using Shadowhawk S1969 tactical torches to illuminate a dark outdoor environment, highlighting the dual torch package.

3. Sicherheitshinweise

• Do not look directly into the LED beam: Das hochintensive Licht kann zu vorübergehenden Sehstörungen oder dauerhaften Augenschäden führen.
• Außerhalb der Reichweite von Kindern aufbewahren: Dies ist kein Spielzeug.
• Verwenden Sie nur die angegebenen Batterien: Using incompatible batteries may cause damage to the device or pose a safety risk.
• Avoid disassembling the torch: This may void the warranty and could lead to damage or injury.
• Batterien ordnungsgemäß entsorgen: Befolgen Sie die örtlichen Vorschriften zur Batterieentsorgung.
• Betriebstemperatur: Avoid exposing the torch to extreme temperatures.

4. Einrichtung

4.1 Einlegen der Batterie

1. Die Endkappe der Taschenlampe lässt sich durch Drehen gegen den Uhrzeigersinn abschrauben.
2. Insert the provided 6000 mAh Lithium Ion battery with the positive (+) end facing towards the head of the torch.
3. Schrauben Sie die Endkappe im Uhrzeigersinn wieder fest, bis sie sicher sitzt.

4.2 Erstaufladung

Before first use, it is recommended to fully charge the battery. Refer to the 'Charging the Torch' section for detailed instructions.

5. Bedienungsanleitung

5.1 Ein-/Ausschalten und Helligkeitseinstellung

The Shadowhawk S1969 features a dual-switch design for intuitive control.

• Hauptnetzschalter: Press the main power button (large button) once to turn the torch ON or OFF.
• Helligkeitsregelung: When the torch is ON, press and hold the main power button to smoothly adjust the brightness level from high to low, or low to high. Release the button at your desired brightness.

5.2 Spezialmodi (Stroboskop & SOS)

• Notfall Knopf: Press the dedicated emergency button (smaller button) once to activate the Strobe mode.
• Press the emergency button again to switch to SOS mode.
• Press the emergency button a third time to turn off the special mode and return to the previous brightness setting.

Image: Illustration of the Shadowhawk S1969's dual switch system, showing the main power button for on/off and brightness adjustment, and the emergency button for Strobe and SOS modes.

5.3 Zoomfunktion

The torch features a zoomable focus mechanism to switch between floodlight and spotlight modes.

• To adjust the beam, simply slide the head of the torch forward or backward.
• Slide forward for a focused spotlight beam, ideal for long-distance illumination.
• Slide backward for a wide floodlight beam, suitable for illuminating a broad area.

Image: The Shadowhawk S1969 torch illustrating its zoomable focus feature, showing how sliding the head changes the beam from a wide floodlight to a concentrated spotlight.

6. Charging the Torch

The Shadowhawk S1969 is equipped with a USB-C charging port and an LCD display for precise battery percentage-Anzeige.

• Ladeeingang: Connect the provided USB-C cable to the torch's charging port and plug the other end into a USB power source (e.g., wall adapter, computer, power bank).
• The LCD display will show the charging progress, indicating the exact battery percentage.
• Power Bank Function (Output): The torch can also function as a power bank. Connect your mobile device or other USB-powered gadgets to the torch's USB output port using an appropriate cable to charge them.

Image: The Shadowhawk S1969 torch displaying its LCD battery percentage and highlighting the USB-C input and output ports for charging and power bank functionality.

7. Wartung

• Reinigung: Wipe the torch with a clean, soft cloth. For stubborn dirt, use a slightly damp Tuch. Keine Scheuer- oder Lösungsmittel verwenden.
• Batteriepflege: If the torch will not be used for an extended period, charge the battery to approximately 50% and store it in a cool, dry place. Recharge every 3-6 months to maintain battery health.
• Wasserbeständigkeit: The torch has an IP67 rating, meaning it is protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. Ensure the USB port cover is securely closed to maintain water resistance.

Image: The Shadowhawk S1969 torch shown in muddy and wet outdoor conditions, illustrating its IP67 waterproof and dustproof capabilities.

8. Fehlerbehebung

• Torch not turning on:
  • Prüfen Sie, ob die Batterie richtig eingesetzt ist und der Pluspol (+) nach vorne zeigt.
  • Ensure the battery is charged. Refer to the 'Charging the Torch' section.
  • Ziehen Sie die Endkappe fest an.
• Das Licht ist schwach oder flackert:
  • Der Akku ist möglicherweise schwach. Laden Sie den Akku vollständig auf.
  • Stellen Sie sicher, dass die Batteriekontakte sauber sind.
• Torch not charging:
  • Verify the USB-C cable is properly connected to both the torch and the power source.
  • Versuchen Sie es mit einem anderen USB-C-Kabel oder einer anderen Stromquelle.
  • Stellen Sie sicher, dass der Ladeanschluss frei von Schmutz ist.

9. Spezifikationen

10. Garantie und Support

Shadowhawk products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Shadowhawk webBitte bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
