Godox AD100Pro II Outdoor Flash User Manual

1. Produktüberschreitungview

The Godox AD100Pro II is a compact and powerful 100Ws outdoor flash designed for professional photography. It features a 2.4G wireless X system, TTL automatic exposure, and High-Speed Sync (HSS) up to 1/8000s. This manual provides instructions for its safe and effective use.

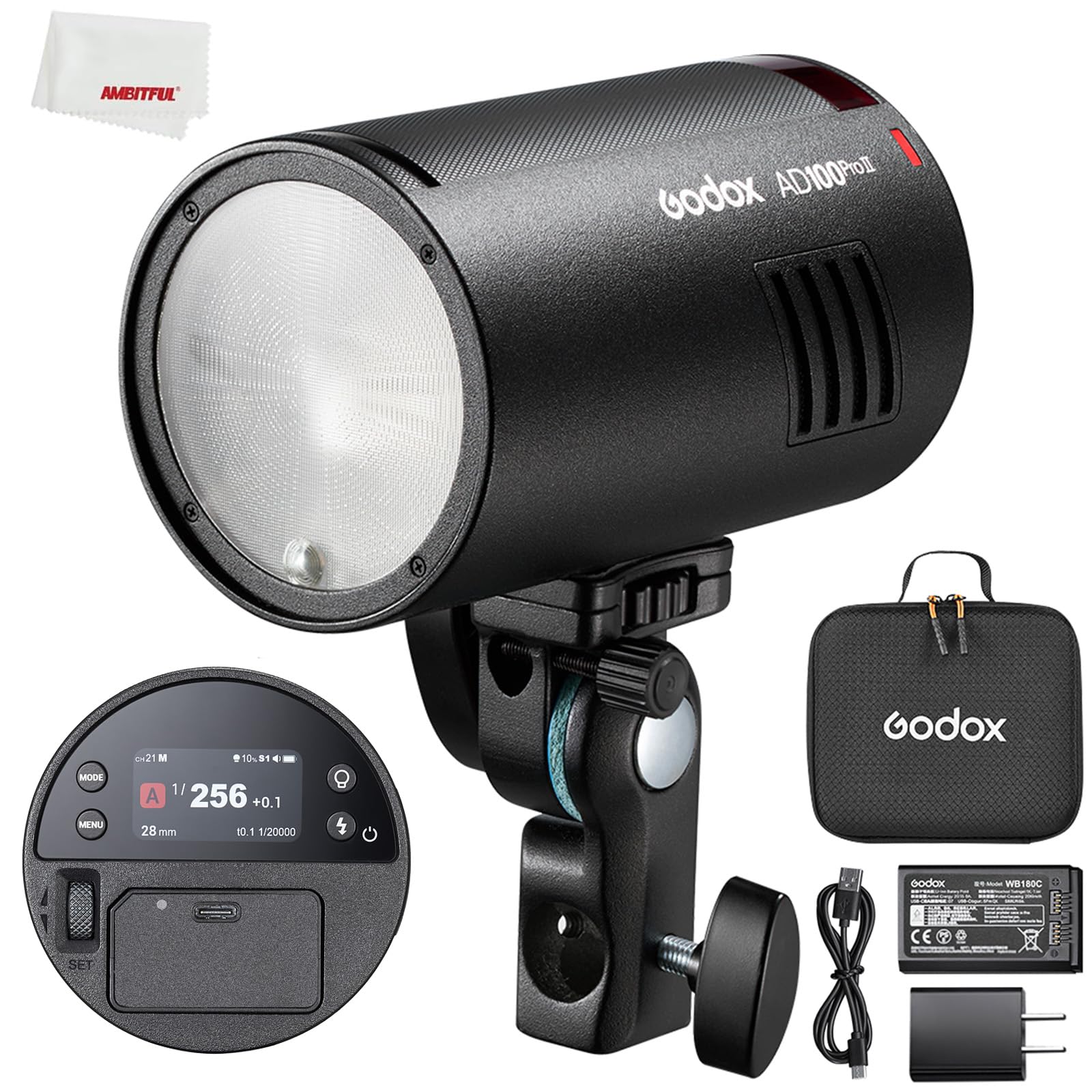

Image 1.1: The Godox AD100Pro II outdoor flash unit.

2. Einrichtung

2.1 Auspacken und Komponenten

Überprüfen Sie, ob alle Komponenten im Paket vorhanden sind:

• Flash Body (1)
• Flash Tube (1)
• Lithium Battery (1)
• Netzkabel (1)
• Netzteil (1)
• Portable Bag (1)

2.2 Einlegen und Laden der Batterie

1. Insert the 3300mAh lithium battery into the battery compartment of the flash unit. Ensure it clicks into place securely.
2. To charge the battery, connect the power adapter to the flash unit's USB-C charging port and plug the power cord into a suitable power outlet. The charging indicator will show the charging status. A full charge provides approximately 490 full-power flashes.

Image 2.1: The 3300mAh lithium battery and USB-C charging port for the AD100Pro II.

2.3 Montage des Blitzgeräts

The AD100Pro II features dual 1/4" mounting points and a multi-angle bracket for flexible positioning. It is compatible with various DSLR cameras including Sony, Canon, Nikon, Fuji, and Olympus.

1. Attach the flash unit to a light stand or other support using one of the 1/4" mounting points.
2. Adjust the multi-angle bracket to achieve the desired light direction.

3. Bedienungsanleitung

3.1 Ein-/Ausschalten und grundlegende Bedienelemente

Press and hold the power button to turn the flash unit on or off. Use the mode and menu buttons to navigate through settings on the full-color display.

3.2 Wireless X System Pairing

The AD100Pro II supports quick-sync pairing with Godox X3/X3Pro triggers for immediate wireless connection.

1. Ensure both the flash unit and the Godox X3/X3Pro trigger are powered on.
2. Initiate the one-touch sync function on your X3/X3Pro trigger.
3. Confirm the wireless sync on the flash unit's display.

Image 3.1: Quick synchronization process with a Godox X3/X3Pro trigger.

For additional flexibility, the flash can connect to an FT433 receiver (sold separately) via its USB-C port for 433MHz control, suitable for multi-lamp Setups.

Image 3.2: Illustration of 2.4GHz X Wireless System and 433MHz triggering options.

3.3 TTL and HSS Modes

The AD100Pro II supports full TTL automatic exposure and 1/8000s High-Speed Sync (HSS) for various shooting conditions.

• TTL-Modus: Passt die Blitzleistung automatisch an, um die korrekte Belichtung zu gewährleisten.
• HSS Mode: Allows synchronization with shutter speeds up to 1/8000s, useful for freezing motion or overpowering ambient light.
• Front-/Heckrollosynchronisation: Provides creative control over light trails and motion blur.

Abbildung 3.3: Beispielamples of TTL Auto Flash and HSS (High-Speed Sync) in use.

3.4 Adjustable Zoom

The built-in 28-85mm adjustable zoom allows fine-tuning of the beam spread to match different focal lengths, providing control over lighting coverage.

3.5 Color-Coded Group Indicator

A ring of 16 color-coded indicator lights simplifies multi-light setups by allowing instant identification and management of different light groups. This enhances workflow efficiency during adjustments and lamp position changes.

Image 3.4: The color-coded group indicator assisting in a multi-light setup.

3.6 Versatile Modifier Ecosystem

The AD100Pro II features a built-in magnetic mount compatible with Godox's round-head accessories, including the AK-R1 kit, AK-R22 Collapsible Diffusion Dome, and AK-R21 Projection Attachment. With the S3 adapter, it also supports Bowens-mount modifiers such as UL softboxes and BDR reflectors, offering broad creative flexibility.

Bild 3.5: Überview of compatible accessories for the AD100Pro II, including the AK-R1 kit and S3 Speedlight Bracket.

4. Wartung

Proper maintenance ensures the longevity and optimal performance of your AD100Pro II flash unit.

• Reinigung: Use a soft, dry cloth to clean the flash body. For the flash tube, use a lens cleaning cloth and solution if necessary. Avoid abrasive materials or harsh chemicals.
• Lagerung: Store the flash in its portable bag in a cool, dry place away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods.
• Batteriepflege: Recharge the battery periodically if not in use to maintain its health. Avoid fully discharging the battery for prolonged periods.

5. Fehlerbehebung

If you encounter issues with your AD100Pro II, refer to the following common problems and solutions:

6. Spezifikationen

7. Garantie und Support

Informationen zur Garantie und zum technischen Support finden Sie auf der offiziellen GODOX-Website. webBesuchen Sie unsere Website oder wenden Sie sich an Ihren autorisierten Händler. Bewahren Sie Ihren Kaufbeleg als Kaufnachweis für Garantieansprüche auf.

Manufacturer: GODOX
